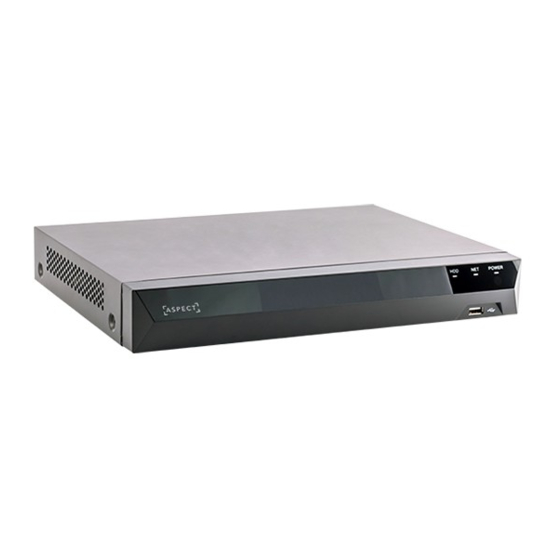

Summary of Contents for Aspect NVR-8MPOE-4
- Page 1 NVR-8MPOE-4 NVR-12MPOE-16 NVR-8MPOE-8 NVR-12MPOE-32 NVR-12M-64 NETWORK VIDEO RECORDER QUICK START GUIDE Technical Documents NETWORK VIDEO RECORDER QUICK START GUIDE...
-
Page 2: What's In The Box
2 - NVR-8MPOE-8 3 - NVR-12MPOE-16, NVR-12MPOE-32 4 - NVR-12M-64 No. Name Description CAM1 – CAM4 (NVR-8MPOE-4) Ethernet ports used for connecting and providing CAM1 – CAM8 (NVR-12MPOE-8) power to cameras. CAM1 – CAM16 (NVR-12MPOE-16/32) Network port for connection to the Internet, router, or ETHERNET/WAN network switch (no POE from this port). -
Page 3: Audio In/Out
RCA connectors for the connection of microphones and AUDIO IN/OUT speakers. Front Panel 1 – NVR-8MPOE-4, NVR-8MPOE-8 2 - NVR-12MPOE-16, NVR-12MPOE-32 3 - NVR-12M-64 Name Description IR REMOTE CONTROL RECEIVER Receives the control signal from included remote control. - Page 4 2. INSTALLATION: SYSTEM TOPOLOGY ASPECT is designed as an out of the box CCTV system which has been optimised to improve the installation experience. Connect the ASPECT IP cameras to the POE ports of the ASPECT NVR, display the video and automatically start recording the camera.
-
Page 5: Startup Wizard
3. START UP WIZARD 1. The startup window will appear after the enhanced security password has been set 2. The startup wizard will guide the user through the initial set up the NVR 3. Use the tick box to set whether or not the startup wizard will open on future boot ups 4. - Page 6 Ensure that this step is repeated for any new users. Remember, if the admin password is changed in this step the connection details within the ASPECT app will need to be updated. 5. START UP WIZARD: SET CONTINUOUS, ALARM & SYSTEM ALARM RECORDING As default all channels are set to record all types.
- Page 7 6. START UP WIZARD: NETWORK SETTINGS DHCP is enabled by default. Untick DHCP to apply a static IP address, ensure to configure the correct settings for the network to enable stable connection to IP cameras in the same range and remote access. [NOTE] Using the mouse, click into the field to open the on screen keyboard and enter the numbers to set the network settings.
- Page 8 Using a smart phone, scan the QR codes on screen for either the iOS or Android labelled image, this will direct the phone to the app download store. 1. Open the ASPECT application on the smart phone. 2. Tap ‘Register’ in the top right-hand corner, then register your credentials and then Login to the app.
- Page 9 8. LIVE VIEW – ENTER THE MENU From Live View, right click the mouse to access the menu. Main Menu – Access to all NVR function and settings Start up Wizard – Launch the start up wizard Auto channel Config –...
-
Page 10: Adding Ip Cameras
The NVR’s POE ports are preconfigured with an internal IP address which is used by the NVR to manage connections. When ASPECT IP cameras are connected via the POE ports the video will automatically populate in the order the cameras were plugged in. -
Page 11: Reset User Password
10. RESET USER PASSWORD Aspect devices support password reset function, to be used when a user has forgotten their user account password. For the function to work, the recorder must be properly configured to a network, if there is no network available please contact your provider for a resolution. - Page 12 11. PLAYBACK Right click the mouse in Live View then select ‘Playback’. From the top left drop down list select the type of playback, 6 types of playback are available: o Normal playback o Event playback o Label playback o Smart playback o Time division playback o Snapshot playback...
- Page 13 14. PC PLAYBACK After performing a backup, to play the video on a computer, use the ASPECT video player. 1. Launch ASPECT player, downloaded from the QR code on this document 2. Navigate to Playlist and select ‘+’ then ‘add file’...
Need help?
Do you have a question about the NVR-8MPOE-4 and is the answer not in the manual?
Questions and answers
Our Aspect viewer (8MP NVR) has stopped recording so we can only use live view. I can’t seem to find a way to go into any settings. Please can you advise me how to proceed? Thank you
To access the settings on your Aspect NVR-8MPOE-4 to troubleshoot recording issues, follow these steps:
1. From Live View, right-click the mouse to open the menu.
2. Select Main Menu to access all NVR functions and settings.
3. Navigate to Channel Status to check the recording status of each channel.
4. Go to Record Control to open and adjust recording settings.
5. If needed, check IP Channel to configure connections to IP cameras.
6. Use the Playback option to review recorded footage and verify if recording is functioning correctly.
These steps will help diagnose and resolve recording issues on your NVR.
This answer is automatically generated
