Operator's manual

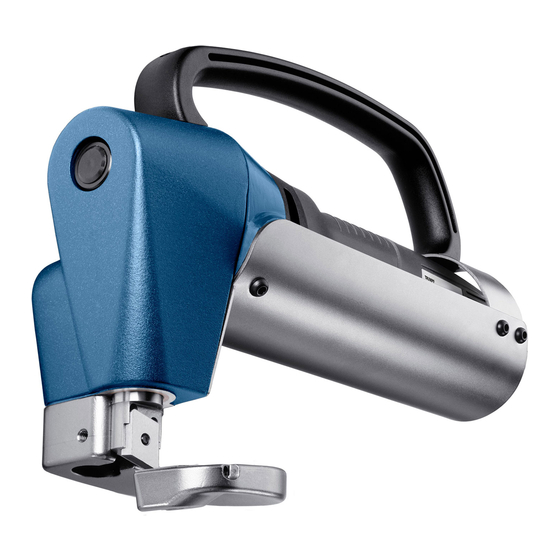

TruTool S 350

(1A1)

english

Table of Contents

Need help?

Do you have a question about the TruTool S 350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trumpf TruTool S 350

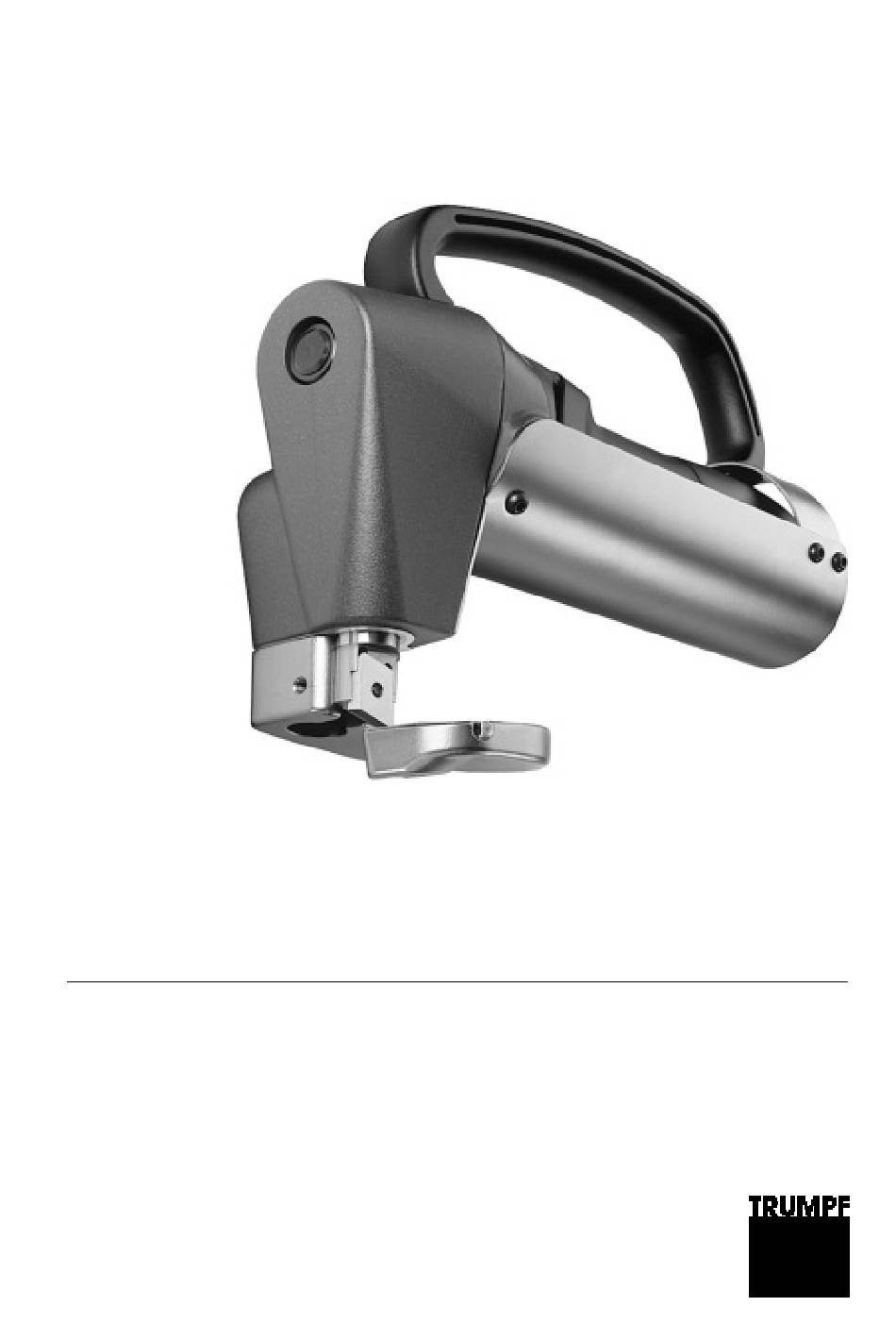

Page 1 Operator's manual TruTool S 350 (1A1) english...
Page 2: Table Of Contents
Setting the cutting clearance ..........13 Cutting clearance............14 Setting the height of the moving cutter blade ....15 Operation ................17 Working with the TruTool S 350 ........18 Maintenance ..............19 Changing the blade............21 Turning the moving cutter blade over or replacing it ..............21 Turning the fixed cutter blade over or replacing it ..................21...
Page 3: Safety
Safety Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. Follow precisely the directions contained therein. Rest of the world Read the Operator's Manual and the safety instructions (Material number 125699, red document) in their entirety before starting up the machine.
Page 4 Arrange for start-ups and checks on manual electric tools to be carried out by a trained specialist. Use only original accessories provided by TRUMPF. Risk of injury from chip! Use chip deflector.
Page 5: Description
Fixing screw for the fixed cutter Moving cutter blade 13 Red indicator light (LED) blade "Motor overload" Fixed cutter blade Axis 14 Chip deflector (hand protection) Fixing screw for the moving 10 On/Off switch cutter blade TruTool S 350 Fig. 28474 Description E464EN_04.DOC...
Page 6: Correct Use
Risk of injury! Use the machine only for the tasks and materials described in "Correct use". Warning The TRUMPF TruTool S 350 portable shears are an electric hand tool used for the following applications: • Chip-free slitting and edge-planing of plate-shaped workpieces made of steel, aluminium, non-ferrous heavy metals and plastic.
Page 7: Technical Data Trutool S 350
Technical data TruTool S 350 Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz • Steel 3.5 mm 3.5 mm 3.5 mm 0.138 in...
Page 8: Tool Assembly
Tool assembly Changing the stroke rate Setting wheel for speed controller on motor Speed controller Fig. 27948 Reducing the stroke rate Rotate the setting wheel for the speed controller counter- clockwise. A reduced number of strokes improves the quality of the work •...
Page 9: Workstation (Optional)
Workstation (optional) Damage to property can result from incorrect operation! Do not slide the workpiece into the machine until the machine has been switched on and it has reached its full revolutions per minute. Caution Lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine.
Page 10 3. Secure the setting device with the screws (43). 4. Use the screws (43 and 44) to secure the machine tightly in the casing 5. Fasten the workstation to a workbench or on top of the TRUMPF pedestal (Order No. 003677) with 4 screws. Tool assembly E464EN_04.DOC...
Page 11: Selecting The Blade
Selecting the blade Damage to property can result from incorrect blade selection! The quality of the cut will be severely impaired and the individual tools will be overloaded. Caution Use only appropriate tools. The blade is notable for the following points: •...
Page 12 Sharp cutting edge Cr Chromium steel blade on the standard blade Radius 0.2 mm at the cutting Standard blade edge of the chromium steel blade Blade with type identification Fig. 14843 Note Standard blades with a tensile strength of ≤ 400 N/mm² have no special identification marking.
Page 13: Setting The Cutting Clearance
Setting the cutting clearance Lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Blade clearance = cutting Adjusting screw 5s Moving cutter blade clearance Fixed blade carrier Fixed cutter blade...
Page 14: Cutting Clearance
Cutting clearance The cutting clearance must amount to 0.2x of the sheet thickness to be cut. Examples: Sheet thickness "s" [mm] Blade clearance = cutting clearance "a" [mm] Table 4 Tool assembly E464EN_04.DOC...
Page 15: Setting The Height Of The Moving Cutter Blade
Setting the height of the moving cutter blade In order to ensure the realisation of optimum cutting behaviour for both the slitting of metal sheets and the cutting of curved lines, the clearance between the moving cutter blade and the fixed cutter blade (penetration depth into the sheet) must be adjusted in accordance with both the projected cutting task and the sheet thickness.
Page 16 Changing the height 1. Push the turning handle when the machine is either running or switched off and rotate it. clearance between moving cutter blade and fixed 2. The turning handle locks into place when it is released. cutter blade 3.
Page 17: Operation
Operation Damage to property possible due to too-high network voltage! Damage to the motor Caution Check the power supply. The power supply voltage must correspond to the specifications on the machine type plate. When using an extension cord which is longer than 5 m, take ²...
Page 18: Working With The Trutool S 350
Working with the TruTool S 350 Switching on the Move the On/Off switch to the front. TruTool S 350 Working with the TruTool S 350 80°-90° On/Off switch Fig. 28475 1. Do not move the machine towards the workpiece until full speed has been reached.
Page 19: Maintenance
Maintenance Lethal danger possible due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Damage to property possible due to blunt tools! Overloading of the machine. Check the cutting edge of the cutting tool hourly for wear.
Page 20 Fixed blade carrier 15 Lubricating heads G1 Lubricating grease TRUMPF 12 Housing Material No. 139440 Grease nipple, ram guide Fig. 28476 Maintenance point Procedure and time interval Recommended lubricants Order No. Lubrication agents Ram guide Every 20 operating hours. "G1" lubricating grease...
Page 21: Changing The Blade
Changing the blade Turning the moving cutter blade over or replacing it Lethal danger possible due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger 1.
Page 22: Wearing Parts
Preferred delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Wearing parts E464EN_04.DOC...
Page 23: Original Accessories
Original accessories Designation Material No. 2 Standard blades (moving cutter 140451 blade and fixed cutter blade, mounted) Allen key DIN 911-2 002946 Allen key DIN 911-5 067857 Feeler gauge 056856 Lubricating grease "G1" (Tube) 344969 Grease gun 068624 Case 982541 Operator's manual 976147 Safety information (red document),...
Page 24 Options E464EN_04.DOC...
