Uaccess Eternity EDC700 Series Installation

Hide thumbs

Eternity-EDC700 Series Door Controller

Operating Temp: -18C to +70C (0F to +158F)

Power Consumption: 15 mA unloaded, 1.5A Maximum

Enclosure: Steel enclosure (12124) with supplied hinged lid, lock, and keys.

Typical Components:

 Steel Enclosure

 Controller Board

 Power Supply w/integrated battery charger

 Backup Battery (12 volt, lead/gel type)

 Keypad with integrated lower iButton reader



Installation fasteners and keypad installation tool



Customer selected electric or magnetic locking device



Optional exit switch (REX) and 2

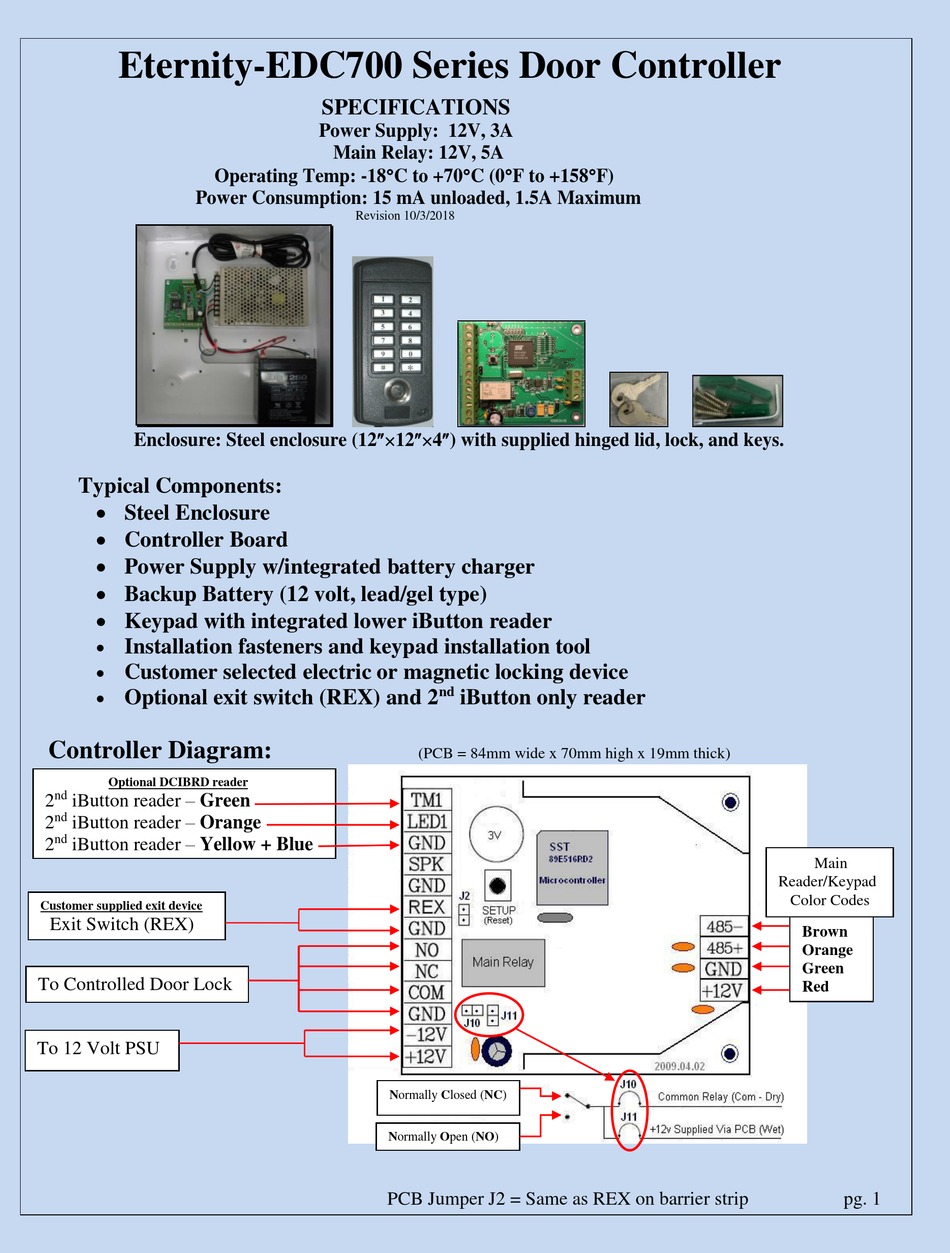

Controller Diagram:

Optional DCIBRD reader

iButton reader – Green

iButton reader – Orange

iButton reader – Yellow + Blue

Customer supplied exit device

Exit Switch (REX)

To Controlled Door Lock

To 12 Volt PSU

SPECIFICATIONS

Power Supply: 12V, 3A

Main Relay: 12V, 5A

Revision 10/3/2018

iButton only reader

(PCB = 84mm wide x 70mm high x 19mm thick)

Normally Closed (NC)

Normally Open (NO)

PCB Jumper J2 = Same as REX on barrier strip

Main

Reader/Keypad

Color Codes

Brown

Orange

Green

Red

pg. 1
