- Page 1 All manuals and user guides at all-guides.com DAPS350 Installation and Operation Manual VGA (RGB) Video Amplifier TECHNICAL SUPPORT 678-867-6717, or www.FlightDisplay.com...
- Page 2 All manuals and user guides at all-guides.com DAPS350 VGA (RGB) Video Amplifier © 2008 Flight Display Systems. All Rights Reserved. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004 678-867-6717 Phone 678-867-6742 Fax sales@flightdisplay.com www.flightdisplay.com For the most current copy of all product manuals, please visit our website at www.flightdisplay.com...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com DAPS350 Table of Contents General Information Front View ......................1 Additional Information ................1 Specifications .....................1 Installation Instructions Power.......................2 Video Wiring Suggestions................2 VGA Wiring....................3 Power and Ground Wiring ................3 ... -
Page 4: General Information

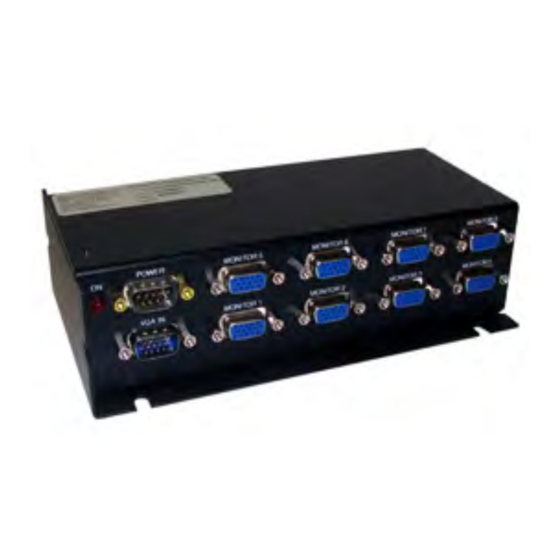

General Information General Information The DAPS350 is a VGA (RGB) Video Amplifier which takes a VGA source, and splits and amplifies each to 8 outputs. In addition, the DAPS350 supplies 3 Amps of 12VDC of power available for other cabin entertainment products (i.e. -
Page 5: Installation Instructions
There are four mounting slots located on the sides of the DAPS350 on the sides for horizontal mounting and two slots on the end for vertical mounting. It is sufficient to mount the unit by only two attach points. -
Page 6: Vga Wiring
All manuals and user guides at all-guides.com DAPS350 VGA Wiring Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires. -
Page 7: Pinout For Db-9 (Power Connection)
All manuals and user guides at all-guides.com Pinout for DB-9 (Power Connection) Part Numbers for DB-9 connector, manufactured by Tyco or Amp. D-sub, 9 contact receptacle (female) P/N 205203-1 9F pins P/N M39029/63-368 Wiring Diagram Description Number 28VDC In – Power 28VDC In –... -
Page 8: Pinout For Db-15 (Vga Connections)
All manuals and user guides at all-guides.com DAPS350 Pinout for DB-15 (VGA Connections) Part Numbers for DB-15 connector, manufactured by Tyco or Amp. D-sub, 15 contact receptacle (female) P/N 748565-1 D-sub, 15 contact receptacle (male) P/N 748364-1 15F pins... -
Page 9: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting Video Noise Check for an incorrect ground in the installation wiring. See specific examples of video noise below, or visit http://flightdisplay.com/Grounding.pdf Snow or Sweeping Lines Lines that slowly sweep up and down are a result of AC noise. This AC noise can be generated by a power cart on the aircraft. -
Page 10: Technical Support
Email: sales@flightdisplay.com For further product information, technical data and sample wiring diagrams, please click on the Dealers section of our web site at www.flightdisplay.com Instructions for Continued Airworthiness The DAPS350 is designed not to require regular general maintenance. Revision G, November 2009... -
Page 11: Warranty Information
867-6717 to obtain assistance. If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion. -
Page 12: Assembly Drawing
All manuals and user guides at all-guides.com DAPS350 Assembly Drawing Revision G, November 2009... -
Page 13: Index
All manuals and user guides at all-guides.com Index Color Distortion.........6 Shields..........2 Continued Airworthiness ....7 Support ...........6, 7 DB-15..........4, 5 Warranty ..........8 Noise ...........6 Wiring ..........2 Power ..........6 Diagram..........4, 5 Remote Control .........6 Power and Ground ......3 Revision G, November 2009 ... -
Page 14: Log Of Revisions
All manuals and user guides at all-guides.com DAPS350 Log of Revisions Date Page Description 02/02/2007 Updated image 06/20/2008 Corrected image of DB-15 connector 04/14/2009 Updated specifications, warranty info 07/20/2009 Updated FAA/PMA Testing Approval 11/19/2009 cover Updated front cover photo...
