UV LAMP MAINTENANCE AND REPLACEMENT
FOR 53000-040-XXX, 53000-025-XXX
UV Lamp Replacement
Life expectancy of UV lamp is about 16,000 hours.
•
The Smart Status LED for UV-C ( will change to yellow when it is time to replace the lamps. (AOP 25/40 only) It is
recommended to replace all UV lamps at the same time.
•
AVOID TOUCHING THE UV LAMP GLASS WITH YOUR BARE HANDS. Oils on your hands can cause hot spots on the
UV lamp and shorten its life. Use a soft clean cotton cloth or clean cotton gloves to handle the UV lamp.
To remove the UV lamp from UV reactor, follow below steps.
1. Shut off power at the breaker.

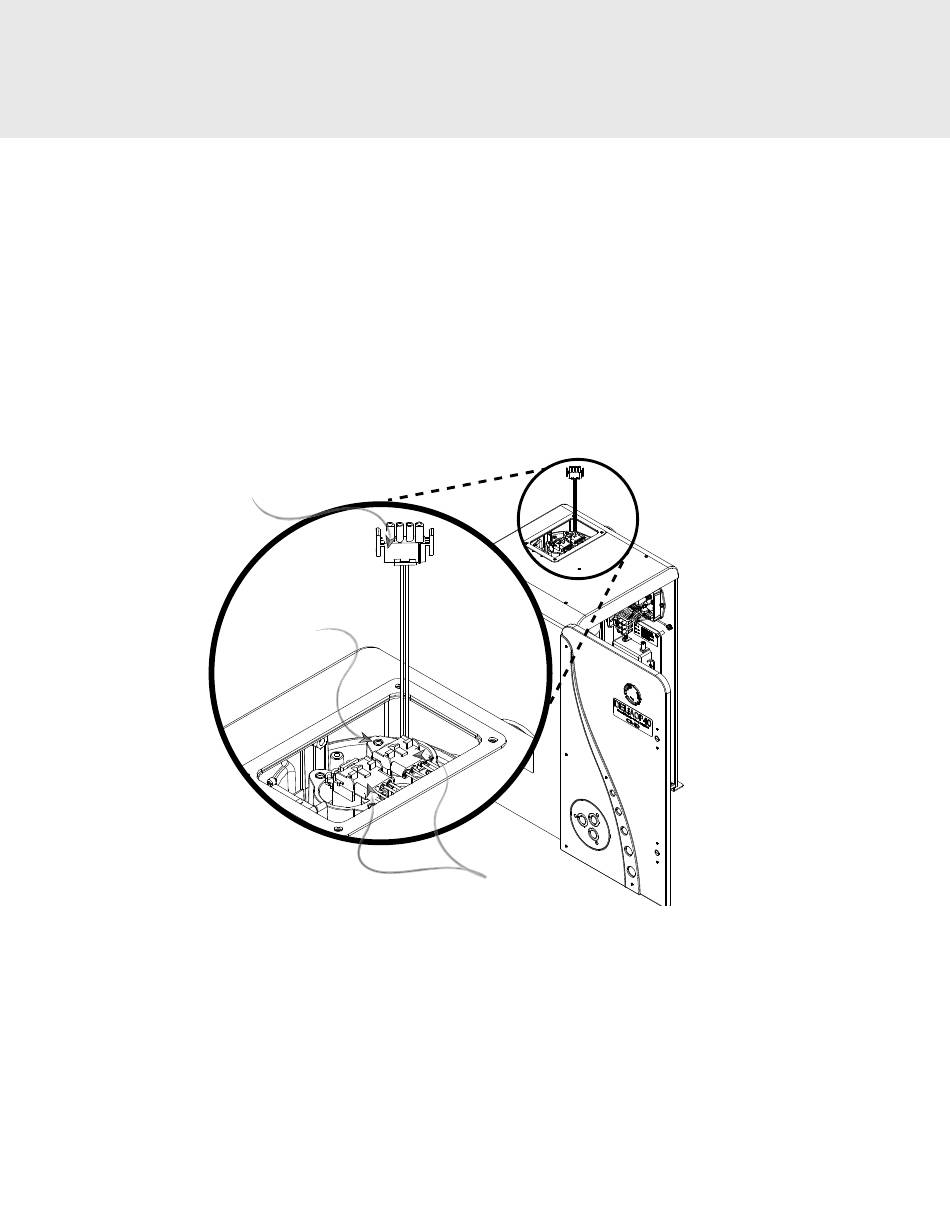

2. Locate the UV lamp access panel on the top of the DEL AOP. Remove the 4 screws with a Phillips head screwdriver, and
remove the panel.
3. After allowing adequate time for the lamp to cool, disconnect the lamp connector from ballast wire connector.
4. Grasp the UV lamp wires and gently pull until the top of the UV lamp has pulled past the lamp retainer tabs.
5. While holding the UV lamp white ceramic cap, slowly pull the UV lamp until the bottom has pulled past the lamp retainer
tabs. (Twisting the lamp may help facilitate removal.) Do not touch glass, as oils on your hands will damage the UV lamp.
Lamp
Connector
To re-install the UV lamp:
1. Confirm power is off at the breaker.
2. Do not touch glass, as oils on your hands will damage the UV lamp. Clean with alcohol if inadvertently touched with bare
hands. By holding the UV lamp white ceramic cap, slowly press the UV lamp fully past the lamp retainer tabs and into the
quartz tube until it is seated on the lamp cushion in the bottom of the tube.
3. Connect the lamp connector to the ballast wire connector.
4. Install UV lamp access panel.
5. Reset UV indicator by pressing the reset UV button on the inside door behind the Smart Status indicators.
4-2866-01 REVA Online Instructions: c-m-p.com/tech
Lamp
Retainer
UV Lamp Replacement
Ballast
Wire
Connector
