Summary of Contents for Digoo DG-P05

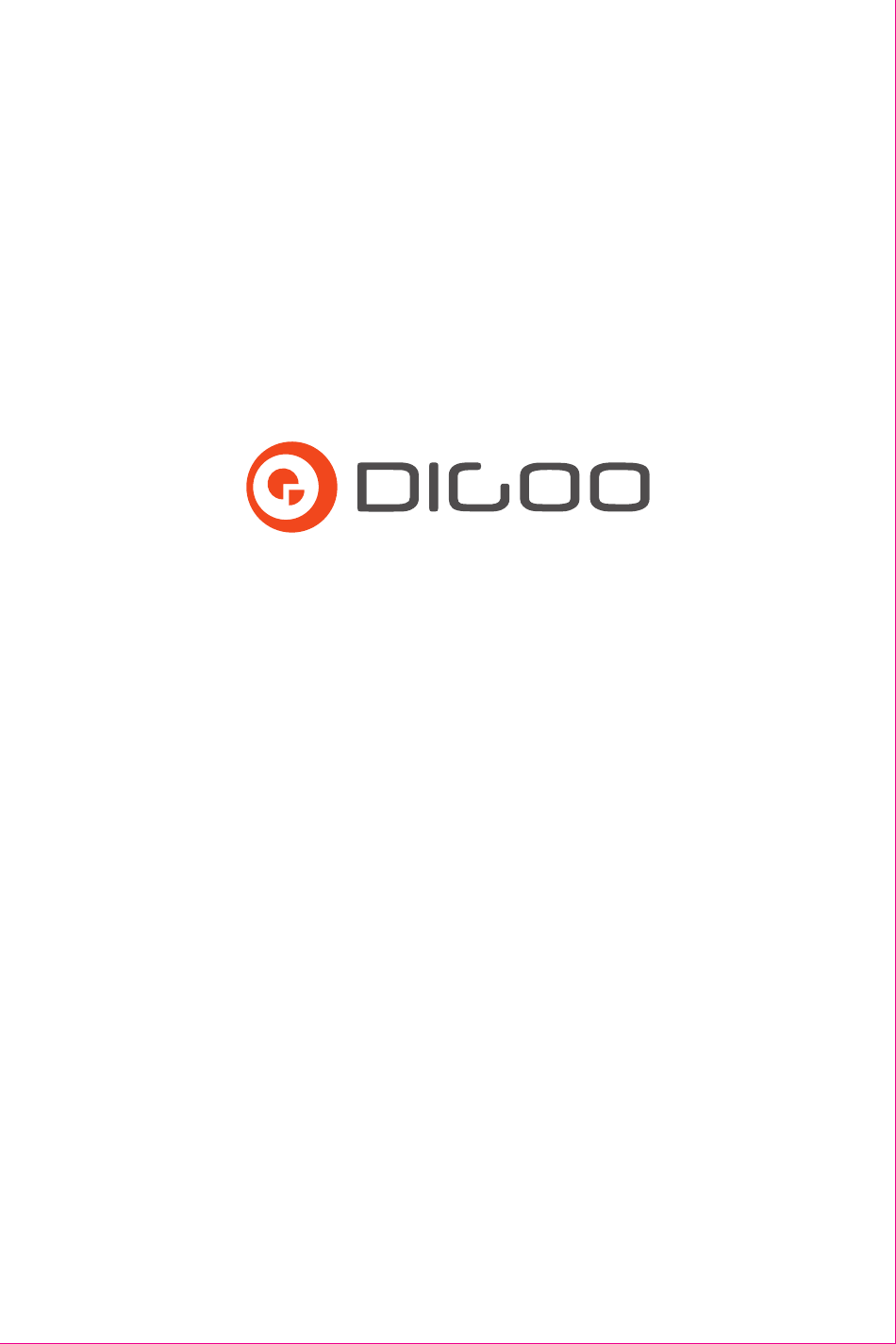

- Page 1 User Manual...
- Page 2 English 1.Main Function Description Cloud Storage HD Recording Remote Switch Audible Alarm Schedule Recording IOS Support Android Support Two-way Audio Remote Monitor Wireless WIFI Video Streaming TF Card Storage...
- Page 3 Infrared Night Vision Pan & Tilt Motion Detection 2.How To Download Mobile APP 1) Search and download “YCC365 Plus” in Apple Store or Android app store. 2) Scan the QR code as below...
- Page 4 3.How To Operate The Mobile APP 3.1 Register an account When you use this app at the first time, you need to use your email to register an account, click “Sign Up” and set a password according this procedure. *If you forget your password, you can reset your password, just click "Forgot password”...
- Page 5 3.2 Add Camera Note: the camera only supports 2.4G WIFI, before adding devices, make sure your router is 2.4G WIFI, and your phone is connected to 2.4G WIFI. 3.2.1、Scan QR code to add 1) Please make your phone connect to the Wi-Fi, and then click “Device adding by scanning the code”, reset the camera, after hearing the voice “Please configure camera by scanning code or AP hotspot”, please click the...
- Page 6 3.2.2 Addition by connecting to network cable (Only support Lan port device) 1) Please connect Ethernet cable between camera and Wi-Fi router. 2) After your phone connect to the Wi-Fi, Click “Add device” and “Addition by connecting to network cable” 3) Please scan the QR code on the device and wait for the network connection to succeed.
- Page 7 3.2.3 Addition of AP hotspot 1) After your phone connect to a Wi-Fi , please click “Add device” and “Addition of AP hotspot”,, after hearing the voice “Please configure camera by scanning code or AP hotspot”, please click the “Connect to the network”.if you do not hear the voice,please reset you camera.
- Page 9 3.3 AP Direct mode (special) 1) Power up the camera and hear the voice "Please configure camera by scanning code or AP hotspot" (if you don't hear the voice, reset the camera. 2) Open the YCC365 plus app to enter the login interface, click “Local login”.
- Page 10 4.Function Introduction Real-time preview interface. A:Parameter Menu B:Snapshot C:Full Screen D:Video playback E:pan-tilt reset F:Preset G:Pan&Tilt H:Message I:Video quality J:Hold to talk L:Sound K:More Control white light View cloud albums Video to the phone.
- Page 11 4.1 PTZ/ Preset 1) PTZ. By sliding steering wheel or sliding the screen on the live preview can control the camera's rotation. 2) Preset. 1、Click the preset icon to enter the preset management interface. 2、Add the preset: several presets can be added. 3、Delete the preset: click the edit icon to delete the preset that has been added.
- Page 12 4.1.2 Add the preset...
- Page 13 4.2 Video playback Gentle hint : video playback by default is cloud recording , if you want to playback the video on the TF card , you can switch “play videos from” to “SD card”. 1) Cloud video has color discrimination, dark blue indicates the alarm recording and light blue indicates non-alarm recording.
- Page 14 4.3 Video clip Gentle hint: Only the cameras with cloud service package have this feature. Drag the playback cursor and click the clip icon, select start time and click “save to the cloud album ” , enter the video name and click “save”.
- Page 15 4.4 Download cloud video / share cloud video Click the cloud album icon and click the video clip, click “Download” to save the video to your phone or click “Share” to share your Video on Facebook and YouTube.
- Page 17 4.5 Cloud video playback Click “Message” to view the alarm video.
- Page 18 5.Preferences Click “ ” in the preview screen, check the parameter menu Rename the device name Add closing plan Shared with other users...
- Page 19 5.1 Cloud Storage service We offer 30-day-long cloud service, everyone can enjoy the cloud storage service for free, after that you can choose to pay for the service with a low cost. A、Select “Cloud service” and check Subscription packages B、There are three kinds of subscription packages for you, you can choose to pay for this service by monthly or yearly.
- Page 20 5.2 Set TF card recording Mode Insert the TF card into the card slot and power on the camera. TF card requirements： 1、Memory space 8-128G 2、C10 TF card 3、use after formatting. 4、Recommend Kingston/SanDisk/Samsung Click “Device storage” to check it Click “Memory card recording mode” to select the video mode of TF card.
- Page 21 5.3 Notification settings Turn on the sound switch, detect abnormal sound triggering message push Turn on the motion switch, detect the motion triggering message push Push notification setting NOTICE：Only the cameras with cloud service package support mail delivery.
- Page 22 5.4 Other functions settings Device Microphone: Open / Close the microphone Night Vision： 1、Off, close the night vision 2、On, always open night vision 3、Auto, automatic switchover Rotate The Video Feed 180°： Flip the picture when the camera is installed under the roof. Wi-Fi Network: Change the Wi-Fi on the device.
- Page 23 5.5 The Logic of How Double Light Changes White Light Control: IR LED Light Control: A. White Light and IR LED Set to Auto Both: Both lights are not working when it`s in a light environment. Dark environment, white light turns on when it`s motion-detecting, and keep on for 1 min;...
- Page 24 C. White Light Set to Auto while IR LED Set to Turn Off: White light not working when it`s in a light environment. Turn on when it`s in a dark environment and keep for every 60 min and shut down for 1sec then turn on again. D.
- Page 25 6.Split Screen to Watch（Only for multiple equipment under the same account)
- Page 26 7.How to Use a Camera On a Computer Log in website: www.ucloudcam.com...
- Page 27 8.Frequently Asked Questions 1、Can’t add the device？ A、Please make sure the camera has been reset. Press the Reset button until hear the prompt tone B、Only support 2.4GHZ Wi-Fi, if your Wi-Fi router is 5GHZ, please switch to 2.4/5GHZ dual mode. C、Please turn on the GPS service before adding the device on the Android mobile phone .
- Page 28 C、If you can’t go to the forth step, please try again, if it still doesn’t work, please contact the seller. 2、Why does it have a interval while the video is recording to the TF card The size of the video file is limited. Once the video size close to the critical value, the video file will be created and the next video will continue to be recorded, there is a interval but so short.
- Page 29 6、Camera disconnect？ Please check the power and the Internet then restart the camera. If this way doesn’t work please remove the camera and add it again in the App. 7、Circle in the video, video runs slowly？ Circle in the video means it’s still loading, please check your network environment.
- Page 30 9.After Sales Instruction 1、The product will be updated in real time, if there is update, it will not be noticed anymore, please visit our official website for reference. 2、Introductions of the basic function of the products are included in the instruction, please users to read all the information carefully.
- Page 31 11.About IP and MAC You can't access the camera directly through the IP address. You can register and log in via YCC365 Plus APP or PC web version, and use the camera after connecting After the connection is successful, the router will assign an IP address and MAC address to the camera.
