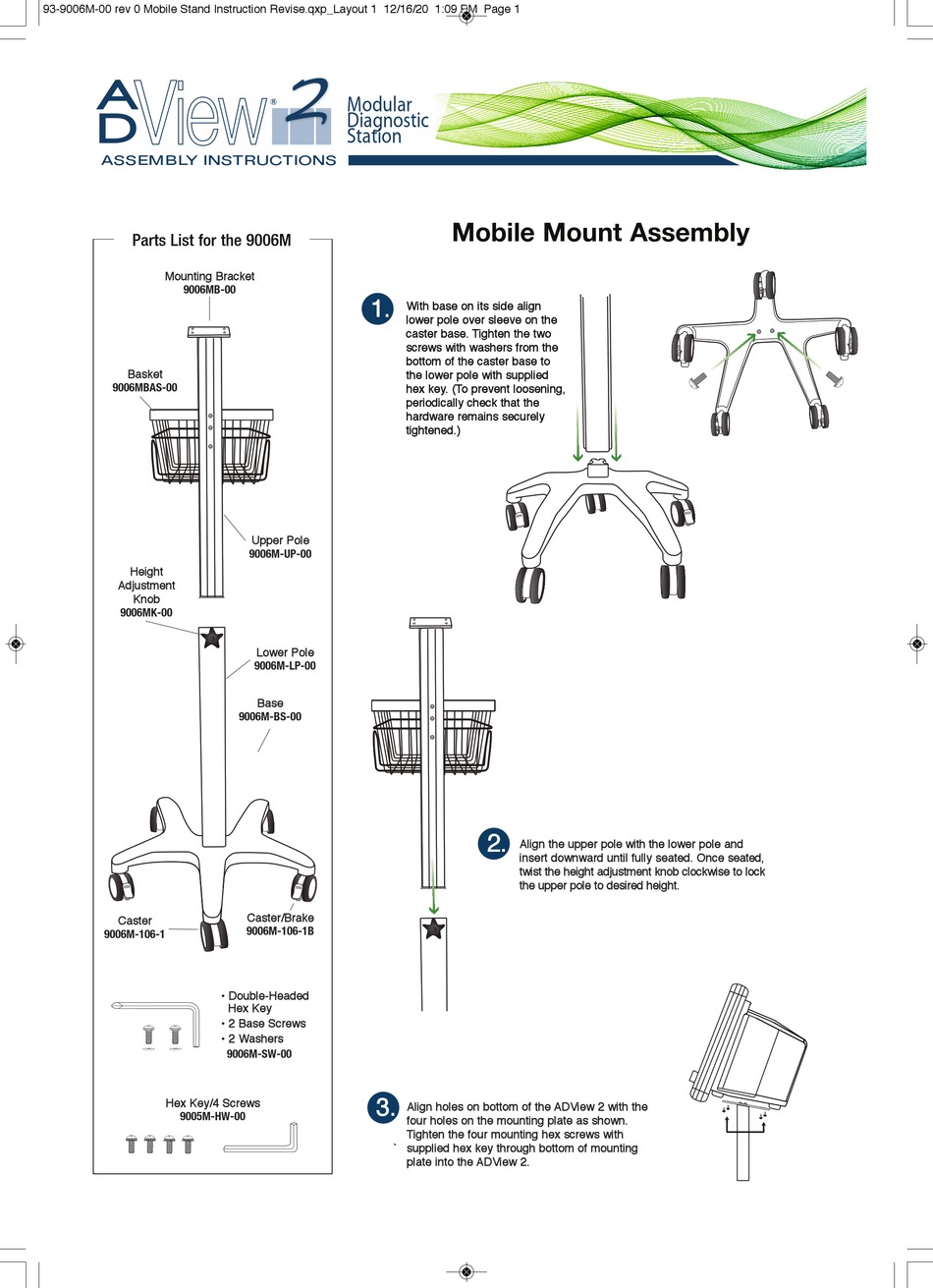

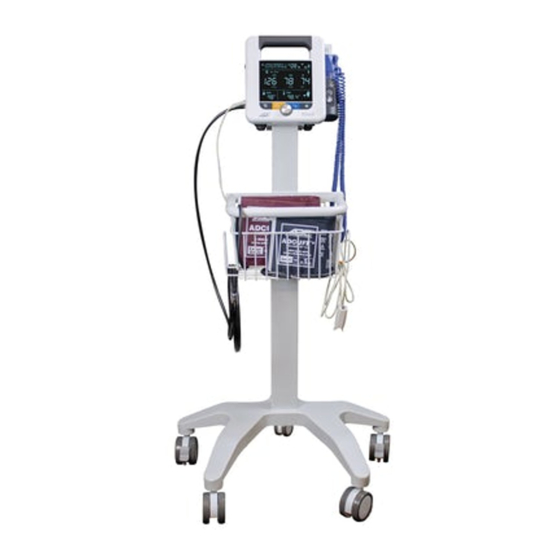

ASSEMBLY INSTRUCTIONS
Parts List for the 9006M
Mounting Bracket
9006MB-00
Basket
9006MBAS-00
Height
Adjustment
Knob
9006MK-00
Caster
9006M-106-1
Hex Key/4 Screws
9005M-HW-00
2
Modular
®
Diagnostic
Station
1.
Upper Pole
9006M-UP-00
Lower Pole
9006M-LP-00
Base
9006M-BS-00
Caster/Brake
9006M-106-1B
• Double-Headed
Hex Key
• 2 Base Screws
• 2 Washers
9006M-SW-00
3.
` supplied hex key through bottom of mounting
Mobile Mount Assembly
With base on its side align
lower pole over sleeve on the
caster base. Tighten the two
screws with washers from the
bottom of the caster base to
the lower pole with supplied
hex key. (To prevent loosening,
periodically check that the
hardware remains securely
tightened.)
2.
Align the upper pole with the lower pole and
insert downward until fully seated. Once seated,
twist the height adjustment knob clockwise to lock
the upper pole to desired height.
Align holes on bottom of the ADView 2 with the
four holes on the mounting plate as shown.
Tighten the four mounting hex screws with
plate into the ADView 2.
