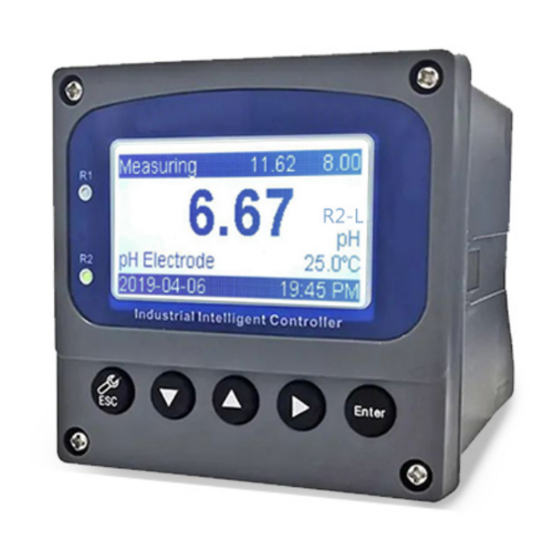

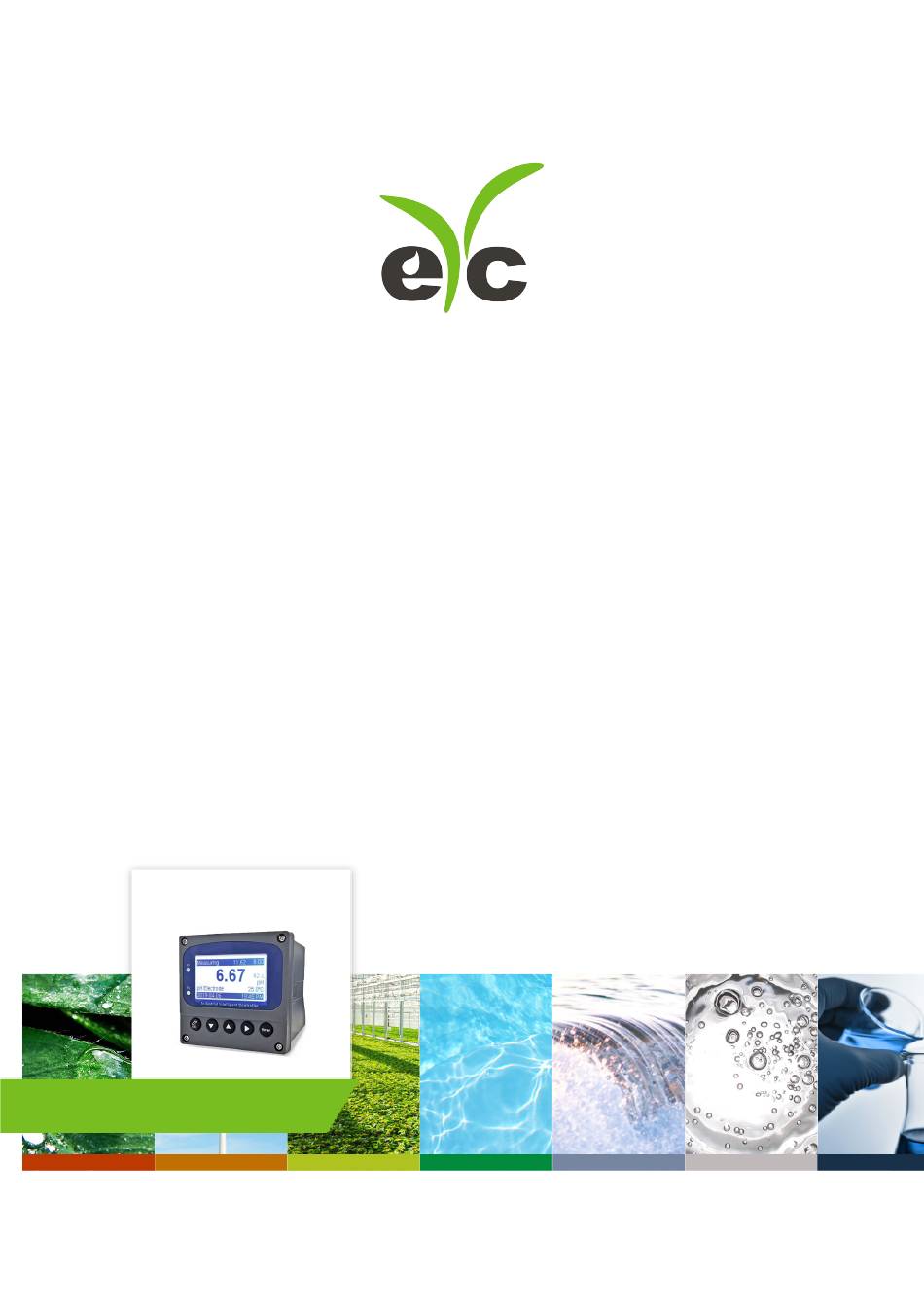

- Page 1 Operation Manual eYc DPME01 Industrial Grade Online pH / ORP Controller eYc DPME01...
-
Page 2: Table Of Contents
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Contens ⅠOverview....................P. 2 ⅡCombination and installation............... P. 3 2.1 Main engine fixed （Panel mounting） ..........P. 3 2.2 Panel mounting reference drawing..........P. 3 2.3 Sensor and sensor protection tube..........P. 4 III Panel introduction.................. - Page 3 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Initial password：0000 Note：Please read the manual carefully before use. Thank you for purchasing our products. In order to continuously improve the quality of the controller and improve its functions, our company reserves the right to modify the content and icon display at any time.
-
Page 4: Ⅱcombination And Installation
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Basic function 1. Language diversity. Factory standard is Chinese interface and can switch to English interface. 2. Temperature compensation diversity. Pt1000, NTC10K and manual temperature compensation are available in three temperature compensation modes. -
Page 5: Sensor And Sensor Protection Tube
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller 2.3 Sensor and sensor protection tube combination 2.3.1 Sensor cable line and wiring method Configuration of coaxial cable： Center line：+ sensor wire line：- sensor reference line The correct configuration diagram like up, the outer peel of the black rubber mandrel guide be stripped off. - Page 6 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Pipeline installation considerations Note： The sensor should be installed in the bypass of the main pipeline, the front end should install the valve, control the flow rate, the flow rate should be as small as possible, generally as long as the outlet has a stable aqueous solution dripping out can be.
-
Page 7: Panel Introduction
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller III. Panel introduction 3.1 Panel introduction 3.2 Key description To prevent improper operation by non-users, enable password protection when entering parameter settings and corrections. Each function description is as follows：... -
Page 8: Iⅴ Menu Introduction
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller R1：Action indicator of relay 1, the high displays the red light, the low displays the green light. R2：Action indicator of relay 2, the high displays the red light, the low displays the green light. - Page 9 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu prompt function： Enter the secondary menu and the parameter settings for the next menu will be displayed at the top right of the screen. For example, enter the backlight of the system setup menu, the backlight parameter is set to 30 seconds.
- Page 10 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu 1.3.2 Date setting Enter the date setting menu to set the year, month, day, hour, minute, and so on. After successful setting, the system time of the meter will automatically change to the set time.
- Page 11 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller 2.2.1 Cal. 2 Point Two-point correction includes low-point correction and high-point correction：The default setting of low-point calibration is 4.00 pH. First, clean the probe with clean water and dry it. Insert the probe into the calibration solution of pH 4.00, observe the...
- Page 12 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu 2.5 Temperature settings The temperature adjustment is divided into two parts, the upper part is the temperature adjustment value, and the lower part is the adjusted temperature display Enter value.
- Page 13 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu 3.1.2 Relay 1 trigger value The user can freely set the trigger value within the Enter range allowed by the meter and press confirm. Menu 3.1.3 Relay 1 hysteresis value...
- Page 14 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu 3.2 Relay 2 The setting of relay 2 is the same as the setting principle of relay 1, please refer to the setting of relay 1. Menu 3.3 Electric current This menu is divided into four sub-menus：...
- Page 15 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Menu 3.3.3 Electric current 1 ... 4 mA correction After entering the calibration interface, the current output value will be displayed on the screen. The ammeter will measure the output current value of the current 1 and adjust the current value on the screen to be the same as the current value measured by the ammeter.
-
Page 16: Default Factory Setting
Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Default factory setting Menu Range setting Factory default Sensor type pH / ORP / Ti Digital filtering Low / Middle / High point Low point Calibration 2-point / 3-point 2-point... - Page 17 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Types of pollution Cleaning method Contamination of sensor diaphragm The sensor was immersed in Pepsin / HCL caused by protein in test solution solution for several hours. Sulfide contamination The sensor was immersed in Thiourea / HCL (Black of sensor diaphragm) solution until the diaphragm became white.
- Page 18 Controller eYc DPME01 Industrial Grade Online pH / ORP Controller Accurate | Professional | Stable Temperature and Humidity / Dew Point / Air Velocity / Flow / Pressure Measuring Specialist Tel.: 886-2-8221-2958 , Web : www.eyc-tech.com e-mail : info@eyc-tech.com www.eyc-tech.com...
