Minleon Trikliks Plus Line Quick Reference

MINLEON ADVANCED
MULTIFUNCTION MINI CONTROLLER
QUICK REFERENCE
PRECAUTIONS & INSTALLATION REQUIREMENTS
1. The Minleon Advanced Multifunction Mini Controller is not designed to be left outdoors in the weather
in all situations or else permanent damage may occur. If installing outside then ensure that the controller
is mounted from the mounting eye piece with the power and USB sockets facing downwards
2. The controller must not be located no more than 10 feet away from the first light unless using the
Minleon sender and receiver unit (Minleon additional accessory) which will allow up to 100 feet of
distance between the controller and first light.
3. Never disconnect and connect lights when the controller is powered up as this may cause permanent
damage to the lights and/or controller.
4. Do not place lights or controller in areas where there is extreme heat or cold.
5. Do not strain the cables of the lights as damage may occur to the wiring.
6. Always keep the plug cap on at the end of the light string when not used.
7. Firmly tighten all plugs, do not over tighten
8. Do not drop controller, remote or lighting on hard surfaces
9. Do not use if there is any damage to the controller, wiring or lighting
10.
Do not wash down the controller or the remote with any fluids as this may cause permanent damage.
Use a soft clean rag to clean the controller, remote and lights
INTRODUCTION
The Minleon Advanced Multifunction Mini Controller is an mid-level controller for displaying effects on a
single string of Minleon RGB Lights (up to 500 lights maximum). It can also control multiple strings that are
wired in parallel, where each string will display the same thing (up to 5000 lights maximum). The Mini
Controller has a number of built-in effects, a remote control that allows different controls including memory
recall and a USB port that allows live control via a PC using Minleons LightShow Pro software.
2
1
.
4
3
*
Additional Spacer shown

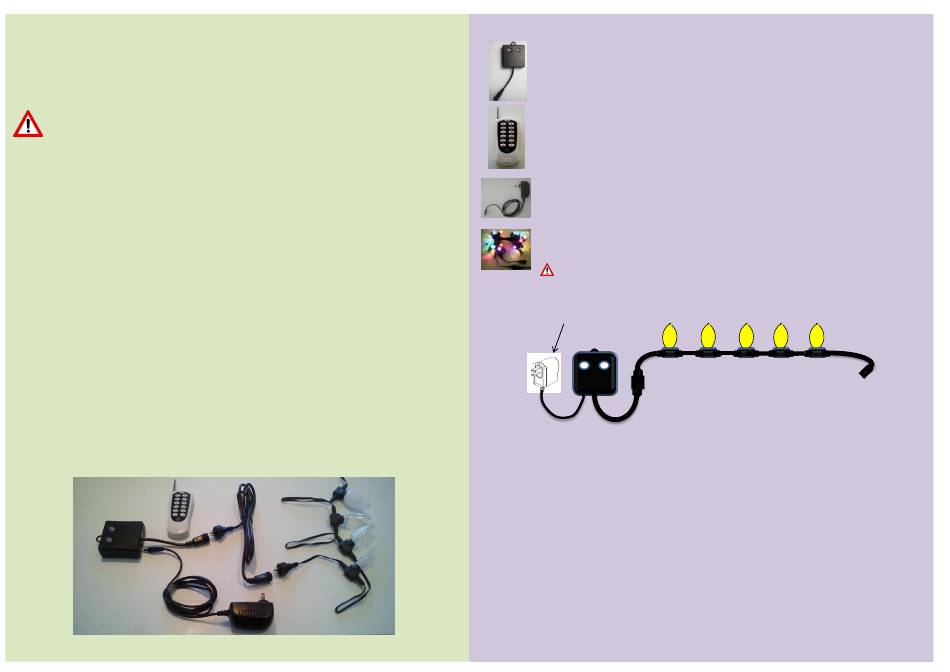

PARTS AND CONNECTION
1: Multifunction Mini Controller
The Minleon Multifunction Mini Controller has many inbuilt functions and is very
powerful for a small package
2: Mini Controller Remote (V2)
The Minleon Multifunction Mini Controller Remote allows you to take control of the
lights connected to the multifunction mini controller in many ways
3:
12VDC Power Supply
12VDC 1.5 amp power supply that can power up to 50 Minleon RGB lights and the
controller.
4: Minleon RGB Lights
A variety of different lights, tubes and strip Lighting are available from Minleon
Always power off the controller before connecting and disconnecting lights
Diagram for connecting the power supply and lights
1.5 amp power
supply
Adding additional lights
The Minleon Multifunction Mini Controller can control up to 500 Minleon light strings (additional power
considerations are required) Connect additional light strings using Minleon accessories, power supplies and lights.
1. Ensure power is disconnected from the controller and that the lights are connected and there are no more
than a total of 500 lights connected to the controller.
2. Hold down the play button on the Standard Multifunction Mini Controller whilst powering up the controller
until the lights turn on RED in color then release.
3. Press the play button to decrease the number of lights connected
4. Press the variation button to increase the number of lights connected.
5. The last light selected will be flashing BLUE.
6. Once you have the correct number of lights selected then do not touch any of the controllers buttons for 5
seconds until the last light selected turns to solid GREEN. This now confirms that the set number of lights is
now stored in memory.
Now disconnect and reconnect power to the Minleon Multifunction Mini Controller to now run the controller with
the correct number of lights set
Maximum of 50 Minleon RGB
Lights with 1.5 amp power supply
