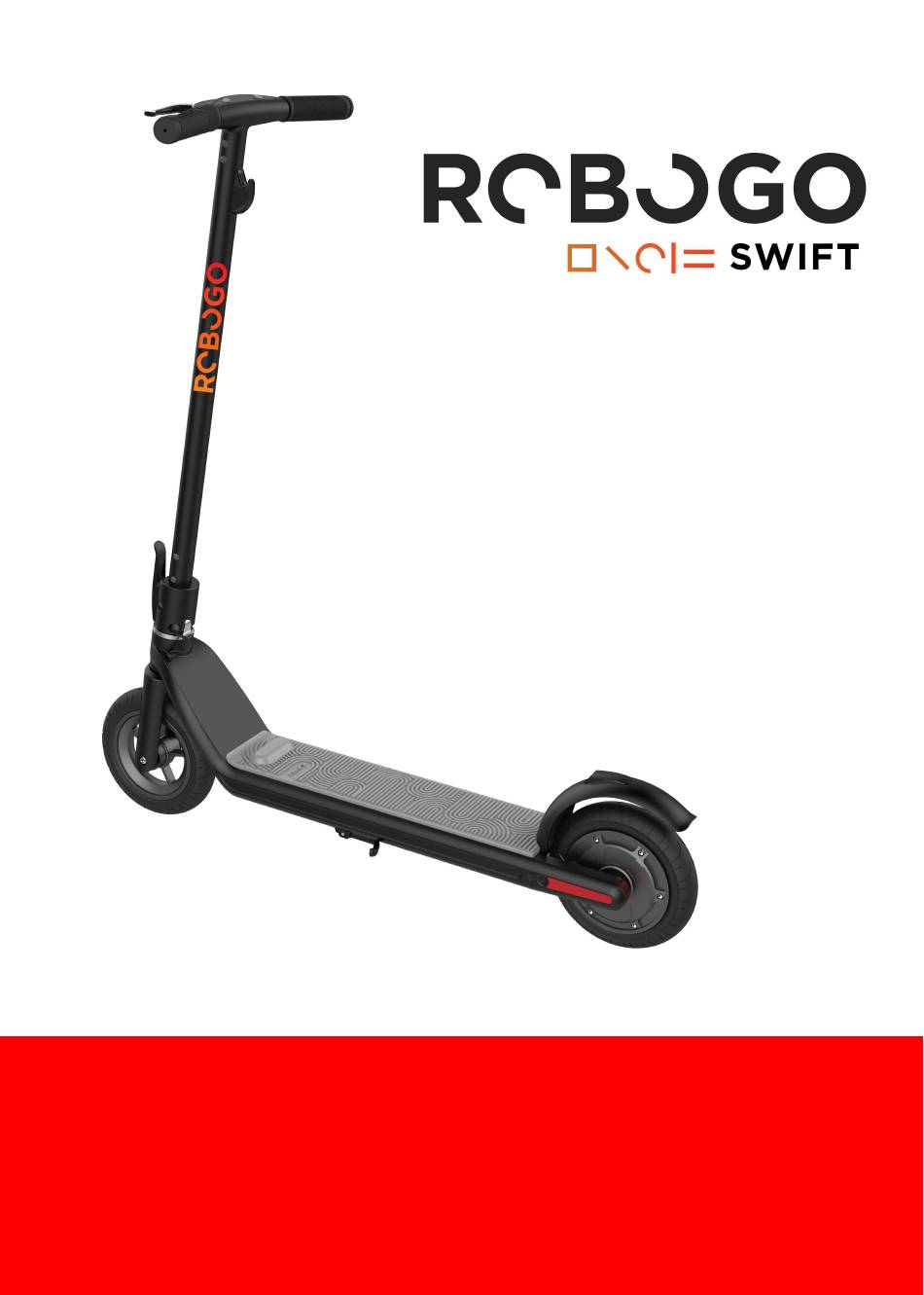

- Page 1 ANYWHERE EVERYWHERE USER MANUAL MODEL: SWIFT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warnings & General information……………………………………...……….….3-4 Package Content...................... 5 Main Parts ........................6 Technical Parameters ....................7 Opening & Installing ....................8 Operating....................... 9-11 Battery & Charging ....................12 Riding ........................13-14... -
Page 3: Warnings & General Information
IMPORTANT INFORMATION WHY IS IT NECESSARY TO READ THIS USER MANUAL? This Manual was written to help you to use and maintain your ROBOGO electric scooter properly. For your safely and enjoyment from your first ride, it is important for you to understand your new ROBOGO;... - Page 4 WARNINGS & GENERAL INFORMATION DISCLAIMER ROBOGO PTY LTD is not liable for any accidental damages related to the use of this product. GENERAL WARNING Ensure that the Folding Lever of the folding mechanism is firmly locking the folding mechanism. GENERAL WARNING ...
-
Page 5: Package Content
PACKAGE CONTENT ROBOGO PLEASE CONTACT OFFICE IF THERE ARE ANY MISSING PARTS In this box you will find: Scooter Frame Handle bar Kit Charger Installation tool and screw User manual ... -
Page 6: Main Parts
MAIN PARTS... -
Page 7: Technical Parameters
TECHNICAL PARAMETERS model SWIFT Frame material Aluminum-alloy Battery range 12-20Km Charging time (2A) 3-4 Hours Front wheel (size, tire type) 8" Solid/inflatable Rear wheel(size, tire type) 8" Solid Max speed 25Km/h Expanded size 952X430X1099mm Folded size 952X430X373mm Battery 36V/5.2Ah Lithium-ion Weight 10.5Kg... -
Page 8: Opening & Installing
OPENING / INSTALLING ASSEMBLY INSTRUCTIONS Check the package contents carefully and make sure all parts are in good condition, then take the scooter out of the box in folding status. Rotate the handle in a clockwise direction until it is fixed. Tire pressure (only in inflatable tire models): (2.5bar / 250 KPA /36PSI) -
Page 9: Operating
OPERATING FOLDING & UNFOLDING INSTRUCTIONS Unfolding: Step 1: Unclasp the locking clasp from the hook. Step 2: Turn the steering column to a certain angle to avoid hitting the protective cover when lifting the steering column up, then push the column slightly to lock the folding lever into final position. - Page 10 OPERATING Folding Step 1: Turn the steering column at a certain degree until the folding is completely away from the protective cover, then press down the folding Step 2: Fold down the steering column, align the locking clasp with the side of the locking hook, then buckle into the locking hook in parallel.
- Page 11 OPERATING INTEGRATED INTELLIGENT DASHBOARD Long press on left button to turn off Short press on left button to turn (in non-riding state) Total mileage (km) displayed in non- Double click the left button to switch riding state. Current speed (km/h) speed mode displayed in riding state.
-
Page 12: Battery & Charging
Batteries must be charged in a timely manager. Neglect to do so can cause the battery over- discharge which can lead to severe damage to the batteries Over Discharge protection ROBOGO scooter has the internal over-discharge protection, when scooter shut... -
Page 13: Riding
RIDING THE SCOOTER Checking list before riding The ROBOGO scooter involves a few mechanical and electric setting. Before riding, inspect each component of the scooter to ensure normal operation. Below are the points to pay much more attention to: Be sure the folding lever is locked in place ... - Page 14 RIDING THE SCOOTER RIDING WARNINGS Avoid obstacles on Avoid wading depth Do not exceed 15 the road deeper than 10 cm incline while riding Do not carry Do not ride up Do not ride by passengers and down stairs only one hand...
- Page 15 ROBOGO PTY LTD BENTLEIGH EAST VIC, AUSTRALIA +61-421-808050 WWW.ROBOGO.COM.AU...
