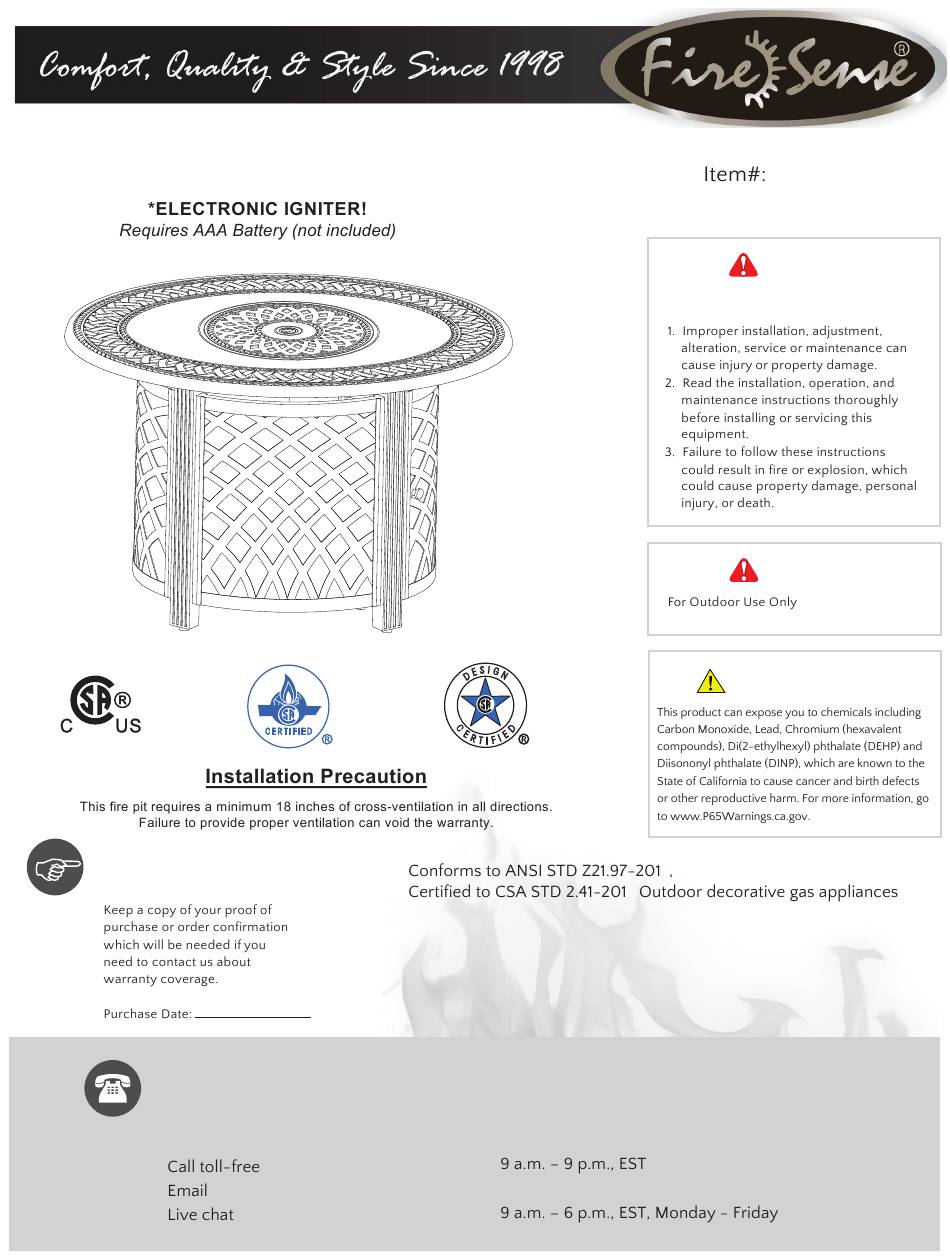

- Page 1 James Oval Aluminum LPG Fire Pit 63698 WARNING FOR YOUR SAFETY WARNING WARNING ATTACH YOUR RECEIPT HERE Questions, problems, missing parts? Before returning to your retailer, our exceptional customer service is available. (866) 985-7877 cservice@welltraveled.net www.balkenehome.com 05172021...
-
Page 2: Table Of Contents
www.balkenehome.com TABLE OF CONTENTS Table of Contents Page 2 Page 2 Before You Begin Package Contents Page 3 Safety Information Page 4 Assembly Pages 5-8 Operating Instructions Pages 9-12 Conversion to Natural Gas Pages 13-15 Care and Maintenance Page 16 Troubleshooting Page 17 Warranty Information... - Page 3 Back Panel Bolt 6x16mm Hex Wrench...
-
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER WARNING WARNING: FOR OUTDOOR USE ONLY CARBON MONOXIDE HAZARD WARNING WARNING / DANGER WARNING WARNING WARNING WARNING WARNING BURN HAZARD... -
Page 5: Assembly
ASSEMBLY PREPARATION Door Panel Side , Door Frame Leg Panels Support Legs Studs Door Frame Leg Side Panels Studs Washer Spring Washer Stud Stud Nuts Wrench Hardware Used: Tank Support Ring Tank Support Bar Tank Support Bar Tank Support Ring Bolt Washer Hex Wrench... - Page 6 ASSEMBLY upside- Tank Support Bar to Panels by aligning holes at each end of Tank Support Bar Panels Bolt Washer gent Hex Wrench Tank Support Ring Door Panel Tank Support Ring Bolt Washer Wrench Hardware Used: P Table Top Studs Table Top Screwdriver Legs...
- Page 7 ASSEMBLY Burner B Table Top C Fire Glass L Burner B Removable Burner Cover A ver Burner.
- Page 8 ASSEMBLY Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder have this book. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE. IT IS INTENDED FOR RESIDENTIAL USE ONLY. • Do not sit or stand on this table. • Keep children away during assembly. This item contains small parts which can be swallowed by children. •... - Page 10 OPERATING INSTRUCTIONS LEAK CHECK WARNING! Hose / Regulator Regulator / Cylinder Connection Connection If bubbles appear at any connection there is a leak. is at hose/ If NO bubbles appear at any connection, the connections are secure. NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test. Complete installation.
- Page 11 OPERATING INSTRUCTIONS CAUTION WARNING DANGER! WARNING Very hot while in operation! FOR OUTDOOR USE ONLY FOR YOUR SAFETY CARBON MONOXIDE HAZARD OPERATION CHECKlIST: For a safe and pleasant heating experience, review this checklist before each use: BEFORE TURNING GAS SUPPLY ON:...
- Page 12 OPERATING INSTRUCTIONS DANGER! NOTE: FOR OUTDOOR USE ONLY CARBON MONOXIDE HAZARD BEFORE LIGHTING : WHEN FIRE PIT IS ON: Troubleshooting LIGHTING : NOTE: Use only your hand to depress or turn the gas control knob. Never use tools. If the knob will not depress or turn by hand, DO NOT try to repair it.
-
Page 13: Conversion To Natural Gas
CONVERSION TO NATURAL GAS WARNING Orifice Chart Propane (Pressure 11”) NG (Pressure 7”) NG Hose and Regulator Conversion Tools Required: • WARNING... - Page 14 CONVERSION TO NATURAL GAS WARNING! WARNING! WARNING! Thermocouple Wire Tank Access Door Flex Line Connector Valve Connector Valve Burner Pipe Air Shutter Burner Pipe Propane Orifice Connector Valve Propane Orifice Natural Gas Orifice Connector Valve Burner Pipe Flex Line Connector Valve Burner Conversion Label Conversion Kit...
- Page 15 CONVERSION TO NATURAL GAS Natural Gas Hook-Up Purge the gas supply line of any trapped air prior to the first firing of the unit. WARNING!
-
Page 16: Care And Maintenance
CARE & MAINTENANCE STORAGE Between Uses: During periods of extended inactivity or when transporting: Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently check for corroded areas and repair them promptly. Note: WARNING SERVICE: Caution:... -
Page 17: Troubleshooting
TROUBLESHOOTING CORRECTIVE ACTION PROBLEM POSSIBLE CAUSE... -
Page 18: Cservice@Welltraveled.net
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LIMITED WARRANTY LISTED. Customers in the Contiguous US • PURCHASER ASSUMES ALL RISKS IN THE With proof of purchase from an authorized retailer ASSEMBLY AND OPERATION OF THIS UNIT. • FAILURE TO FOLLOW WARNINGS AND OPERATIONAL INSTRUCTIONS CONTAINED IN THIS MANUAL CAN RESULT IN SEVERE PROPERTY DAMAGE AND/OR PERSONAL INJURY.
