Summary of Contents for Ritual Electronics Krach
- Page 1 Krach Ritual Electronics...
-
Page 2: Table Of Contents
Summary 04....Warranty 05....Installation 06....Overview 07....Controls 08....Noise colors 09....Patch ideas... - Page 3 Krach n.m. /’krak/ “the Wall Street krach was to reassure them: they welcomed it as the news of a victory”...
-
Page 4: Warranty
Thank you for purchasing Ritual Electronics Krach. Limited warranty Ritual Electronics warrants this product to be free of defects in Your module has been assembled with care in our materials or construction for a period of one year from the date studio in Marseille, France. -
Page 5: Installation
26mA on +12V 26mA on -12V 0mA on +5V You will need 6HP of free space in your Eurorack case to install Krach. The module is 35mm deep. Krachis a 1U module, you will need a 1U rack space - Intellijel format. -
Page 6: Overview
Overview Noise and more noises... Krach is 4 channels of noise. Krach generates analog white noise. It generates three additional noise colors from it. Pink noise is derived from it with a 3dB/Oct low pass filter. Hiss noise is obtained from white noise using a slightly resonant high pass filter. -

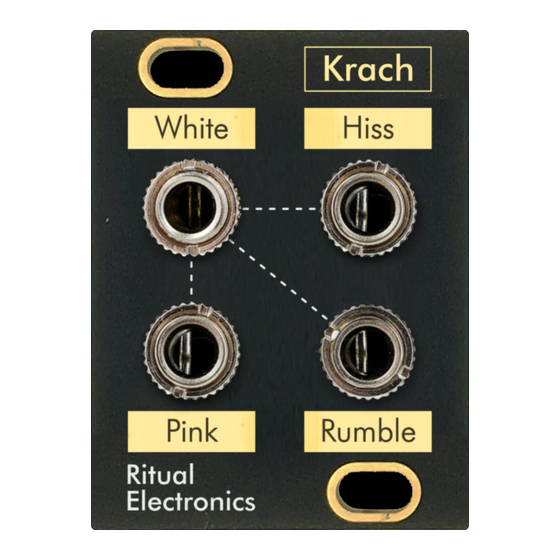

Page 7: Controls
Krach controls Hiss Out White Noise Out Resonant high pass filtered white Analog transistor white noise Pink Noise Out Rumble Out 3dB/oct low pass filter on white Low pass filtered pink noise noise... -
Page 8: Noise Colors
Noise colors White noise Pink noise Hiss Rumble White noise flat frequency Pink noise has a -3dB low pass filter. Our Hiss is white noise with a 6dB/oct Rumble is pink noise with an extra low distribution. ear perceive it as “neutral” resonant high pass at 14kHz. -
Page 9: Patch Ideas
Patch #1 - New colors Patch notes The different outputs are out of phase. Which means by Krach, White out ------------ Mixer, in I mixing them, even passively, you can obtain new colors of Krach, Pink out ------------ Mixer, in II noise. - Page 10 Patch #2 - Fireplace & random gates Patch notes Use one of the noise outputs and process it with a comparator. Krach, Noise out ------------ Comparator, input Start with a high threshold and back it down slowly to hear Comparator, out ------------ Audio / Gates the first crackles of the fire.
- Page 11 Patch #3 - Tuned noise Patch notes One of the easy way to achieve tuned noise is to FM an Krach, White out ------------ Oscillator, FM in oscillator with noise. Tune your oscillator to the desired Oscillator, Waveform out ------------ frequency and adjust the FM.
- Page 12 Oscillator, Saw out ------------ Mixer, Ch. 1 In to a guitar let’s say. But if you add a generous dose of noise Krach, Hiss out ------------ Mixer, Ch. 2 In before the saturation, you will have a somehow electric sound,...
