- Page 1 1910 SEVILLE POWER RECLINER LIFT CHAIR W/ AIR MASSAGE USER MANUAL...
- Page 2 Components: • Hand wand – placed in the side pocket (outside LAF arm/RAF arm), controls all motors and functions (reclining, power headrest, lifting, etc.) via a direct connection with motors. . • AC wall plug – connects the power transformer to the power outlet. •...
- Page 3 Quick Trouble-Shoot for Motors Malfunctioning: Below are some possible reasons to cause motors to stop working: 1. Loose connection or wires not securely plugged in. 2. Broken side switch 3. Broken DC socket 4. Broken power transformer (especially when ALL motors stops working on one unit) 5.

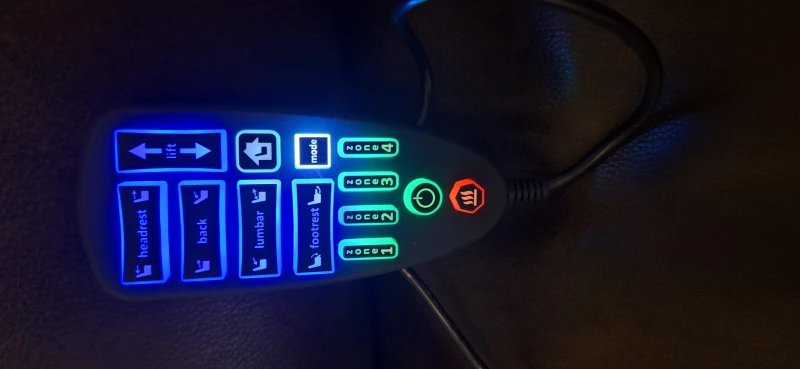

- Page 4 Instruction for hand wand...
- Page 5 Air Massage Standard Functions HC 4HR3B 04 HEAT Description Standard Function The heat function is activated by pressing the HEAT button. When active, the heat pad will provide up to 65 ⁰C of heat. The heat function will be active while the HEAT button is illuminated. To de-activate heat, press the HEAT button again.
- Page 6 HEADREST/ Description FOOTREST/ BACK/HOME/ LIFT/ LUMBAR/ Standard Function Headrest/Footrest/Back/Lumbar/Lift are sets of two buttons that control the motion features of the piece of furniture. The Home button is a singular button that controls motion features of the piece of furniture. Headrest buttons will open and close the headrest cushion. Back buttons will open and close the recline position.
- Page 7 The home button will bring the furniture to the fully closed state. Pressing home will close the headrest, raise the back, and close the footrest/raise the lift. Note Using the Lumbar function will stop all other massage features. If the massage feature is running and either Lumbar button is pressed, the massage will stop.
- Page 8 Unzip pouch to reveal the Junction. Locate the Headrest motor cord (shown on the next page). Ensure that there are no frayed, exposed, or otherwise damaged wires. Do not connect the motor if the cord is damaged in any way. Ensure that there is nothing blocking the path of the motor or connected frame.
- Page 9 Ensure that the connector is fully mated. Ensure that the air hoses are not pinched or otherwise blocked. Ensure that the air hoses are not damaged in anyway. Zip the pouch and reset the back panel. 10) If the Lumbar air cushion still does not inflate, control your furniture provider so they may replace or repair the faulty part.
- Page 10 AIR MASSAGE Description Standard Function The Air Massage has three massage modes and four controllable zones. Each zone can be turned on or off, and will disable that zone for each massage mode. If all zones are turned off, the Air Massage will turn off. The Air Massage is started by pressing the PWR button.
- Page 11 Using the Lumbar function will stop all other massage features. If the massage Note feature is running and either Lumbar button is pressed, the massage will stop. Massage can be re-enabled when Lumbar buttons are not pressed. If the Massage Zones do not inflate while Air Massage is active, the air hose could be Error: Massage Zones do disconnected, pinched or damaged.
- Page 12 POWER RECLINER PARTS...
- Page 13 Power Recliner Trouble Shooting Check if the green light on power transformer is on Check power Check connection cords integrity and security and connection to transformer. components integrity If power cords on DC socket and undamaged, and power cable. connection secured, replace power transformer.
