Signcomplex

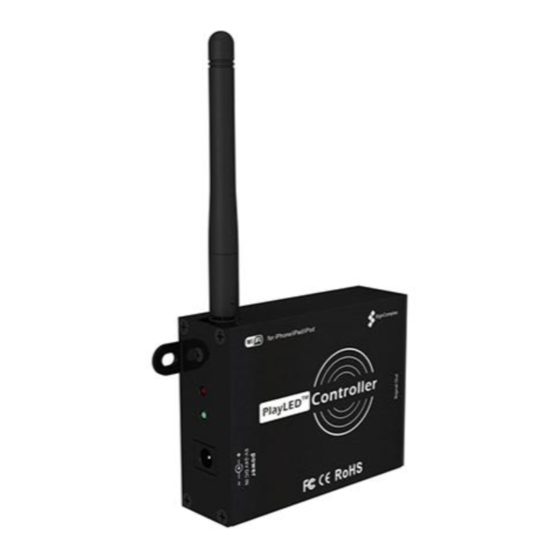

RGB LED Controller for DigiRibbon
LC-0RGB-WiFi-01
Dimensions
www.signcomplex.com
RoHS
warranty 3 years
COMPLIANT
(Unit: mm/inch)
for ios/Android
92.7/3.65"
104/4.09"
Tel:+86-755-27608650
Yijia Industrial Park, Fuqian Road, Guanlan Town, Baoan, Shenzhen, Guangdong, China
Features
Used for 5V-24V RGB DigiRibbon LED strip. Can be
used with iPhone / iPod / iPad or Android device
(mobile phone, tablet PC) to control color, brightness
and changing patterns of the LED strip.
1 Work with Apple IOS4.1 above system or Android 2.1
above system.
2 Free software download form apple or Android store.
3 Compatible with several kind of chips including
LPD1109, SM16716, LPD6803, LPD8803, WS2801,
TM1803, TM1809.
4 Humanity software GUI design, easy to use.
5 347 predefined pattern and 50 customer mode.
6 RJ-45 interface for output.
7 Compatible with different voltage digital RGB strip.
Technical Parameter
Voltage : 5V-24V DC
Output Power : 100w（max）
Control distance : >20m
Weight : 130g
Fax:+86-755-27608651
we bring innovation and give impression
sales@signcomplex.com
P1
Advertisement
Table of Contents
Summary of Contents for Signcomplex LC-0RGB-WiFi-01
- Page 1 Signcomplex we bring innovation and give impression RGB LED Controller for DigiRibbon LC-0RGB-WiFi-01 Features Used for 5V-24V RGB DigiRibbon LED strip. Can be used with iPhone / iPod / iPad or Android device (mobile phone, tablet PC) to control color, brightness and changing patterns of the LED strip.
- Page 2 Signcomplex we bring innovation and give impression Instructions: 1. Connect the strip to the controller. 2. Download and install free software PlayLED at Apple/Android store into your iPhone / iPod / iPad/ Android device. Make sure you choose PlayLED access point and your device connects to WI-FI network.
- Page 3 Signcomplex we bring innovation and give impression figure 4 figure 5 figure 6 figure 7 figure 8 figure 9 7. Touch More to enter Figure 9: a.Touch Color Edit to enter Figure 10 which you can edit the static color for your strip.
- Page 4 Signcomplex we bring innovation and give impression either touch or input the RGB value to choose background color. Touch number 1, 2, 3, 4, or 5 under Mode to choose relevant dynamic mode(refer to point 6). Touch number 1, 2, 3, 4, or 5 under Direction to choose relevant dynamic direction(refer to point 6).
- Page 5 6. The screen shots come from iPhone. Since Image resolution of Android devices are different, there is certain difference of display in different device interface. 8.Can only be connected with Signcomplex's 5V-24V RGB DigiRibbon LED strip, otherwise the controller or LED strip would be burnt out.If you would connect to other Digital Strips, please contact us firstly.
