Instruc�ons on daily cleaning of the Spinjet rinser
-
Preventa�ve maintenance
-
-
Troubleshoo�ng
Please note: these instruc�ons apply to the Rhino Coffee Gear Spinjet rinser (RHPR600-S, RHPR300-S, RPHR150-S) and to
any rinser sink fabricated using Rhino Coffee Gear components

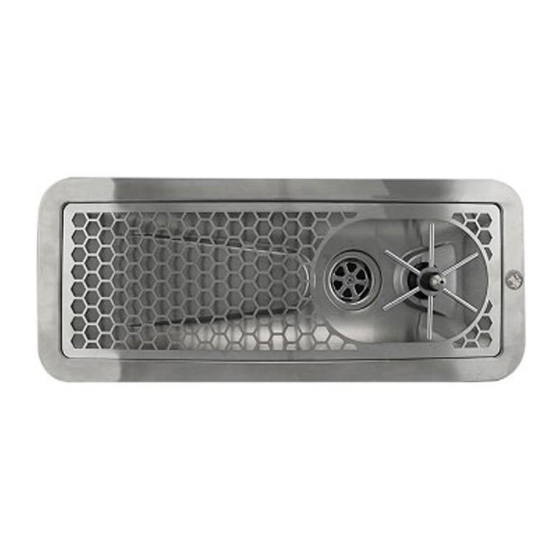

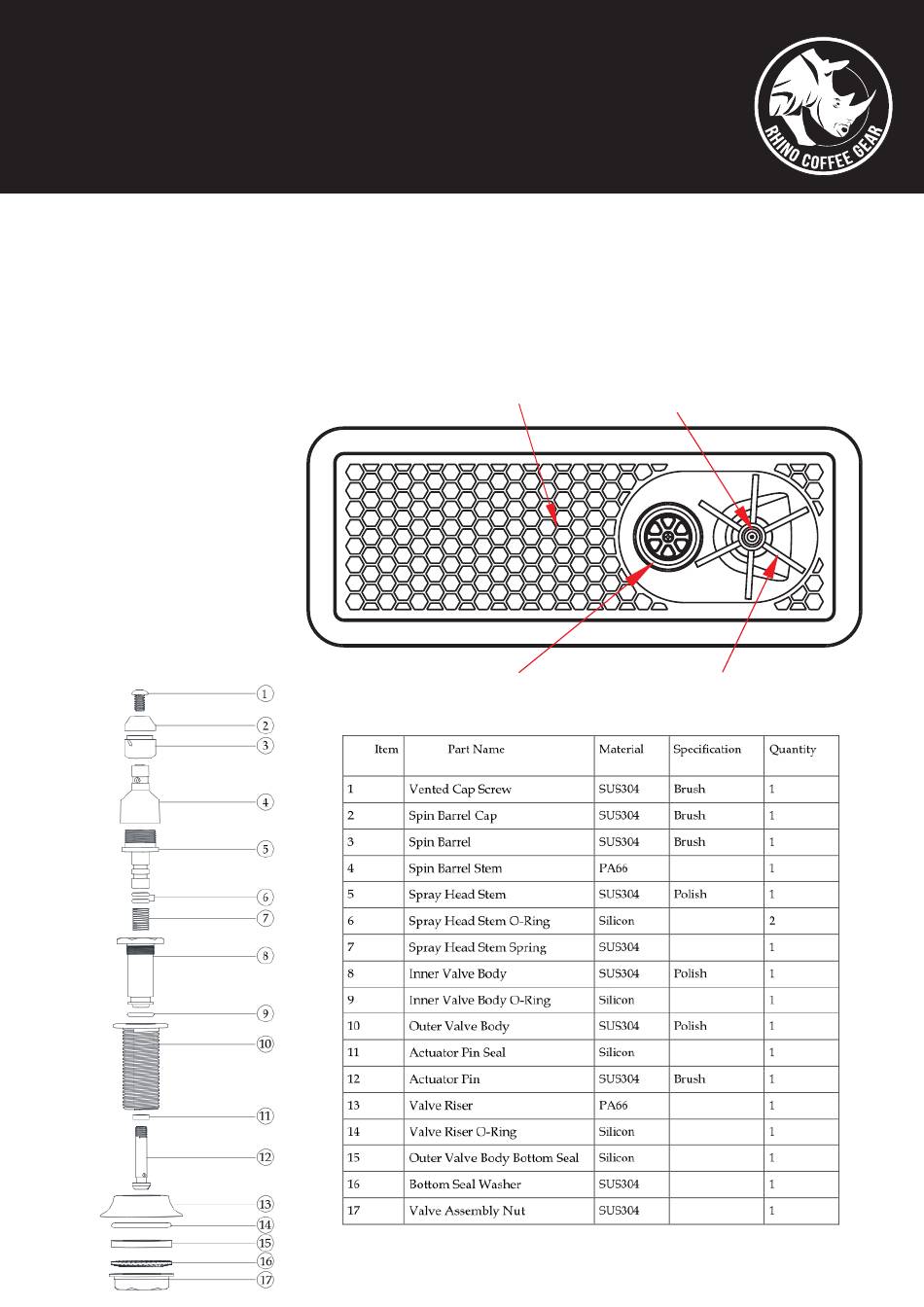

Spinjet Rinser Parts Diagram
1.
Drip Tray
2.
Spinjet
3.
Drain
4.
Actuator Star
Rinser Valve - Exploded Parts Diagram
Drip Tray
Drain
Spinjet
Actuator Star
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for RHINO COFFEE GEAR Spinjet
- Page 1 Instruc�ons on daily cleaning of the Spinjet rinser Preventa�ve maintenance Servicing the rinser Troubleshoo�ng Please note: these instruc�ons apply to the Rhino Coffee Gear Spinjet rinser (RHPR600-S, RHPR300-S, RPHR150-S) and to any rinser sink fabricated using Rhino Coffee Gear components Drip Tray Spinjet...
- Page 2 Cleaning of the Rhino Coffee Gear Spinjet rinser. Please note, these instruc�ons apply to the Rhino Coffee Gear Spinjet rinser (RHPR600-S) and to any rinser sink fabricated using Rhino Coffee Gear components (specifically, the Franke MetroBar Sink.) The RCG Spinjet sink requires daily cleaning and periodic (every three to six months, according to usage and water quality) maintenance.
- Page 3 3. Clean the rest of the sink • While soaking the Spinjet and Actuator star, carefully remove the drip tray from the sink basin. Clean the drip tray and rinser basin using the dilute Milk Frother Cleaner solu�on and a so� cloth.
- Page 4 Replacing the O-rings on Rhino Pitcher Rinser VALVES Service & Maintenance for commercial installa�ons We suggest the opera�ng o-rings be replaced every 6 months (depending on use) See below for in-place valve removal instruc�ons. Note: For replacement part kit (RHSPVSK-01) Changing the o-rings can be done while the unit is in posi�on, there is no need to remove the en�re spray mechanism from the body of the rinser.
- Page 5 Replacing the O-rings on Rhino Pitcher Rinser VALVES Using a flathead screwdriver unscrew the ac�va�on piston from the inner valve body. Discard the old seals and replace with new Insert the ac�va�on piston into the inner valve body, ensure that the spring is s�ll si�ng in the inner sleeve.
- Page 6 Replacing the O-rings on Rhino Pitcher Rinser VALVES Locate the inner body valve back onto the main spray mechanism and �ghten. Replace actuator plate and spray cap/�p. Reconnect fi�ngs and waterline. From here, you can turn on you water supply and the rinser is ready to use. *Note: Seals supplied may be black or clear.
- Page 7 Rhino coffee gear - Spinjet rinser cleaning instructions Troubleshoo�ng The great majority of service calls for this item are resolved by preventa�ve maintenance of the seals and gaskets. Problem: The rinser is leaking. When not in use, a small amount of water trickles from the rinser head, or around the actuator Solu�on: The gaskets/seals are worn or damaged.
