Hillsdale Furniture 1354-331 Quick Start Manual

HARDWARE LISTS

A (4) Long Allen Bolts
B (4) Short Allen Bolts
C (8) Spring Washers
D (8) Flat Washers
E (4) Hex Nuts
F (1) Allen Wrench
N
Figure 2
L
Figure 1
K

STEP 3

Attach each Long Canopy Post (M) to
the post of Footboard Panel (J) by
pressing in firmly and screwing into
place making sure poles remain tight.
Canopy Poles (P&R) are ready for
assembly. See next page.
ONLINE PARTS REQUEST FORM: www.hillsdalehouse.com/parts_request.html
Model #1354-331 & 461 Canopy bed Sets

PART LISTS

H (1) Headboard Panel
J (1) Footboard Panel
K (2) Leg Extensions
L (2) Short Canopy Posts
M (2) Long Canopy Posts
N (4) Top Finials
P (2) Long Canopy Poles
R (2) Short Canopy poles
L
H
WESTFIELD CANOPY
Model #1354-131 & 261 Canopy Kits
A
N
L
K
M
J
Date: 06-02-10
Page 1 of 2
B C D
F

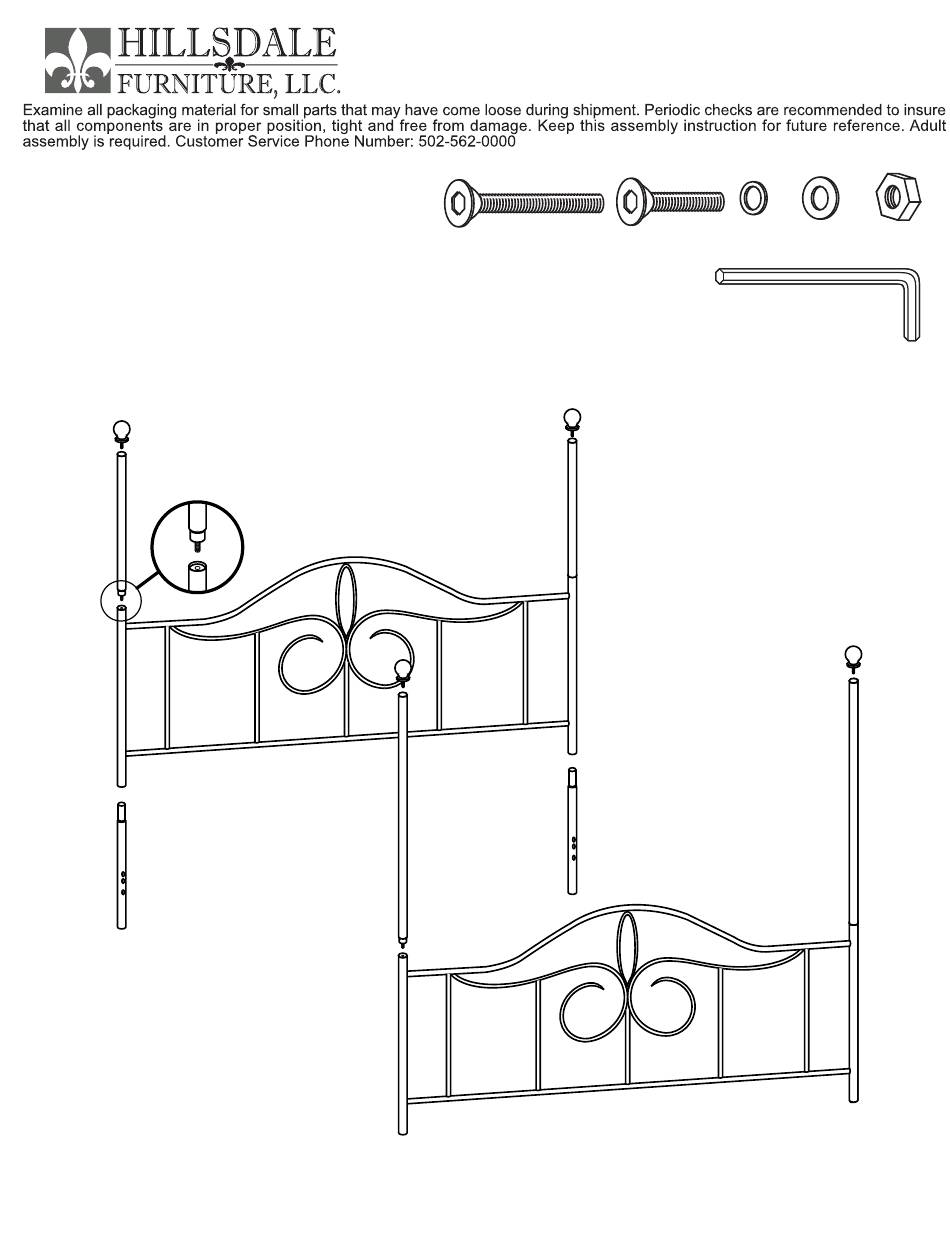

STEP 1

Attach each Leg Extension (K) to
the Headboard Panel (H). See
Figure 1.

STEP 2

Next attach each Canopy Post (L)
to the post of Headboard (H) by
screwing into place. Press in firmly
and make sure polos remain tight.
See Figure 2.
N
E
M
