Stair Chair Lift
DW-WCL01
Model
DW-WCL01
Product size (L*W*H)
63*56*112cm
Folded size (L*W*H)
112*46*30cm
Packing size(L*W*H)
120*60*35cm
Load limit
200kg
N.W.
33kg
G.W.
49kg
Height adjust
112cm to 171cm with three height position adjustment
Overall depth
111cm
Overall width
50cm
Motor output power
120w
Motor output voltage
20-29.4v
Motor adaptable voltage
110-240v
Motor current
13.9A
Battery voltage
24v
Service life
3-5 years
The track angle
The track angle after back rest with three
position adjustment, suitable for different floors.
Advertisement
Table of Contents
Summary of Contents for Dragon Wholesaling DW-WCL01

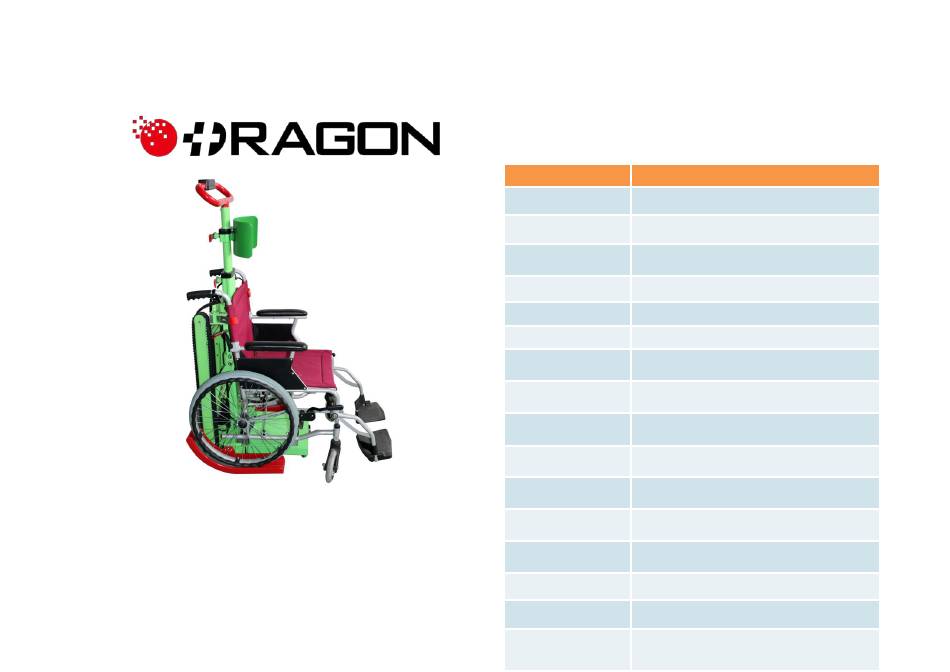

- Page 1 Model DW-WCL01 Product size (L*W*H) 63*56*112cm Folded size (L*W*H) 112*46*30cm Packing size(L*W*H) 120*60*35cm Load limit 200kg N.W. 33kg G.W. 49kg Height adjust 112cm to 171cm with three height position adjustment Overall depth 111cm Overall width 50cm Motor output power 120w Motor output voltage 20-29.4v...

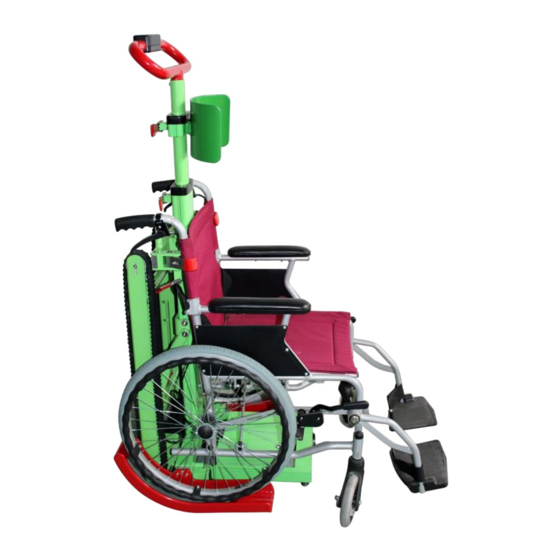

- Page 2 Technical Feature Graphical View 1. For hospitals, emergency centers, fire, emergency ambulance, family hauling goods up and down the stairs. 2. The stair chair lift is mainly used for high-rise buildings transfer patients up and down stairs 3. Extra wide sliding system for safer and easier transfer. 4.
- Page 3 2. Press the red button and the green lights will illuminate if there is charge within the battery. Prepare the stair chair lift for use 1 lights= 25% charge Checking the battery charge 2 lights= 50% charge 1. Either on the stair chair lift or when it has been removed turns the black switch.
- Page 4 Releasing the track 6. Firmly press the grey tab above the red tab to releasing the track. Operating the stair chair lift Deploying and folding the stair chair lift Folding stair chair lift 7. Remove the adjusted wheels loading part. 8.
- Page 5 Extending the operating handle 9. Counter clockwise rotation the two screws. 11. Press the red button as photo show, it 10. Light press the loading pallet, then the could help to adjust the handle to fit for stair chair lift will be folded. any position for operators.
- Page 6 15. Also the headrest could be adjusted. The 17. One finger of one hand grips the buckle to headrest could stop at any position as you pull outward. Another hand to pull the top need. slide outward or push inward to fit for the 16.
- Page 7 20. The under slide is adjustable to move right Control for stair chair lift and left to suitable for different size of Motor control wheelchairs. 21. Finger gripped the buckle to pull outward. 25. Press the switch, red light will illuminate on 22.
- Page 8 Cleaning Company Profile Clean the stair chair lift and its parts with a clean cloth or soft brush About us and warm soapy water. Rinse with warm water and air dry. Do not Dragon Industry (ZJG) Co.,Ltd was established with the goal of clean with products comprising of bleach or phenol.
