Backyard TF2089904-KK-00 Assembly, Use And Care Manual

30 qt. aluminum turkey fryer set
Hide thumbs

Advertisement

Quick Links

Download this manual

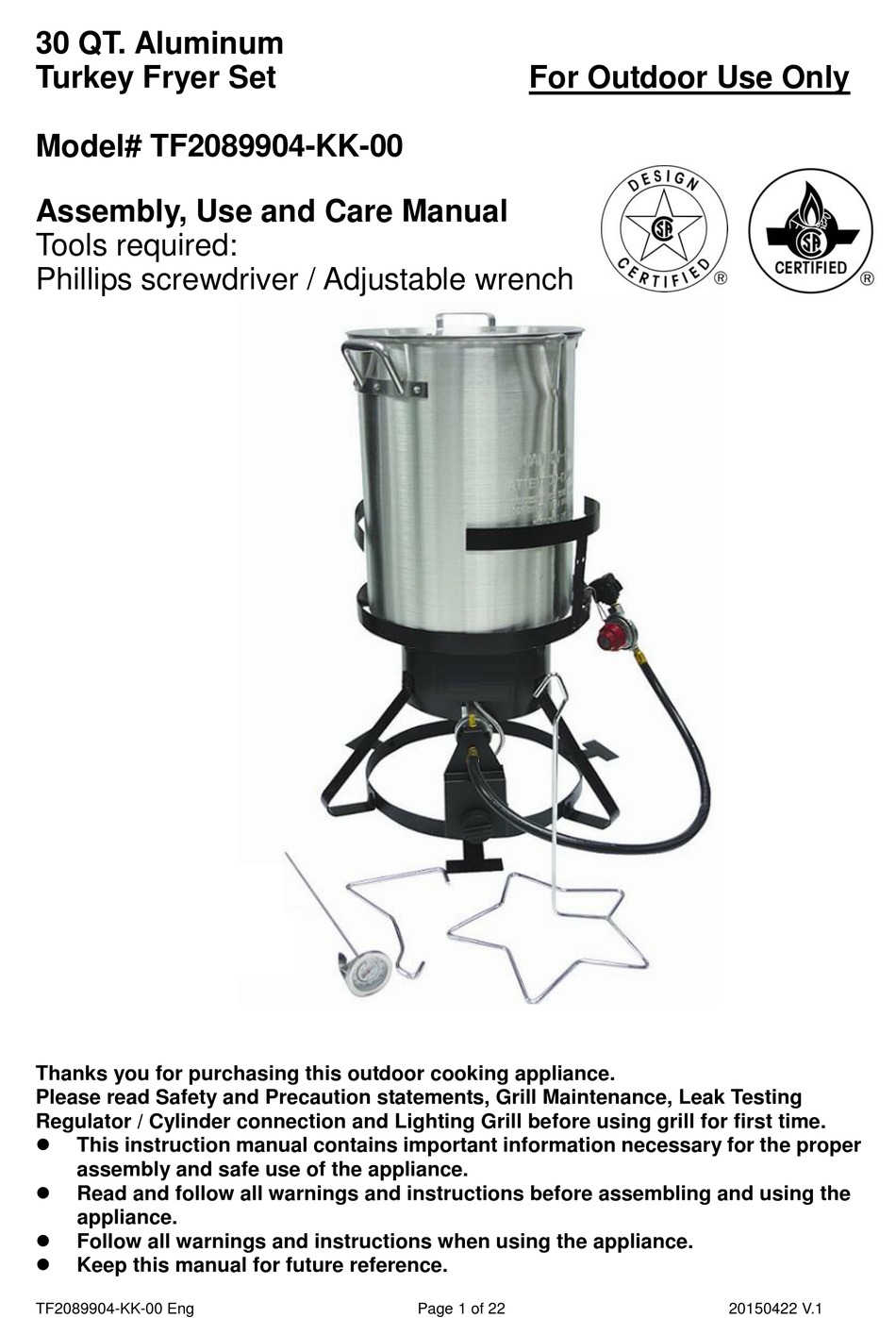

30 QT. Aluminum
Turkey Fryer Set
Model# TF2089904-KK-00
Assembly, Use and Care Manual
Tools required:
Phillips screwdriver / Adjustable wrench
Thanks you for purchasing this outdoor cooking appliance.
Please read Safety and Precaution statements, Grill Maintenance, Leak Testing
Regulator / Cylinder connection and Lighting Grill before using grill for first time.
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
TF2089904-KK-00 Eng
For Outdoor Use Only
Page 1 of 22
20150422 V.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF2089904-KK-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard TF2089904-KK-00

Summary of Contents for Backyard TF2089904-KK-00

  • Page 1 30 QT. Aluminum Turkey Fryer Set For Outdoor Use Only Model# TF2089904-KK-00 Assembly, Use and Care Manual Tools required: Phillips screwdriver / Adjustable wrench Thanks you for purchasing this outdoor cooking appliance. Please read Safety and Precaution statements, Grill Maintenance, Leak Testing Regulator / Cylinder connection and Lighting Grill before using grill for first time.
  • Page 2 Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Warning: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. TF2089904-KK-00 Eng Page 2 of 22 20150422 V.1...
  • Page 3 Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing. Do not leave the appliance unattended, keep children and pets away from the appliance at all times. TF2089904-KK-00 Eng Page 3 of 22 20150422 V.1...
  • Page 4 Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being put into operation. TF2089904-KK-00 Eng Page 4 of 22 20150422 V.1...
  • Page 5 If you see, smell, or hear escaping gas, immediately get away from the LP tank/appliance and call your fire department.  All spare LP tanks must have safety caps installed on the LP tank outlet. TF2089904-KK-00 Eng Page 5 of 22 20150422 V.1...
  • Page 6 Exchange your tank only for an OPD safety feature-equipped tanks as described in the “LP Tank” section of this manual.  Always keep new and exchanged LP tanks in upright position during use, transit or TF2089904-KK-00 Eng Page 6 of 22 20150422 V.1...
  • Page 7 – do not use tools. NOTE: If you cannot complete connection, disconnect regulator and repeat step 5 and 6. If you are still unable to complete the connection, do not use this regulator! TF2089904-KK-00 Eng Page 7 of 22 20150422 V.1...
  • Page 8 Customer Service Center at 1 – 888 – 837 – 1380. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank leak test by turning hand wheel clockwise. TF2089904-KK-00 Eng Page 8 of 22 20150422 V.1...
  • Page 9 Cycle time for timer is around 15 minutes. If the timer is not reset within around 15 minutes, the burner will shut OFF automatically. If this occurs, please follow lighting instructions and continue to cook. TF2089904-KK-00 Eng Page 9 of 22...
  • Page 10 To help prevent a blockage and ensure full heat output, clean and inspect burner tube often (once or twice a month). NOTE: Water or air pressure will not normally clear a spider web. TF2089904-KK-00 Eng Page 10 of 22 20150422 V.1...
  • Page 11 NOTE: Clean the entire appliance each year and tighten all hardware on a regular basis (1-2 times a year or more depending on usage). Cleaning should be done where detergents won‟t harm patio, lawn or the like. TF2089904-KK-00 Eng Page 11 of 22 20150422 V.1...
  • Page 12 Replace corroded or damaged burners that would emit excess gas.  Cooking surfaces, pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. TF2089904-KK-00 Eng Page 12 of 22 20150422 V.1...
  • Page 13 Product Diagram TF2089904-KK-00 Eng Page 13 of 22 20150422 V.1...
  • Page 14 Hose & Regulator Assembly……1pc Bar For Timer) ……1pc 11.Pot Lid ……1pc 9. Burner 10. 30QT Turkey 12. Turkey Stand ………….…1pc ……1pc Fryer……1pc 13. Turkey Hook 14. Regulator Hook 15. Thermometer ……1pc ……1pc ……1pc TF2089904-KK-00 Eng Page 14 of 22 20150422 V.1...
  • Page 15 Note: If thermocouple does not have full contact with flame, unit will not stay lit. 3. Assemble the Legs (2) to Welded Stand (1) by using 6pcs M6 x 12 bolts (A) and 6pcs M6 nuts (B). TF2089904-KK-00 Eng Page 15 of 22 20150422 V.1...
  • Page 16 Small T-Support Leg (5) and fix it with 2pcs M6 x 12 bolts (A) by going through the supporting bar and then to the timer box. Timer box supporting bar Timer Box Support Bar (5) TF2089904-KK-00 Eng Page 16 of 22 20150422 V.1...
  • Page 17 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. TF2089904-KK-00 Eng Page 17 of 22 20150422 V.1...
  • Page 18  To use, load the injector with marinade and insert the needle into the turkey. Withdraw the needle slowly while pushing the plunger, minimizing large pockets of marinade and spreading it more evenly. Discard any unused marinade. TF2089904-KK-00 Eng Page 18 of 22 20150422 V.1...
  • Page 19 Do not leave fryer unattended.  Cook until a golden brown color is achieved. Normal cooking time is 3 1/2 minutes per pound. TF2089904-KK-00 Eng Page 19 of 22 20150422 V.1...
  • Page 20 Remove turkey fry accessory and allow the turkey to “rest” for 15 minutes to allow the  juices to settle into the turkey. Slice and serve! If you need additional parts to replace missing parts, please call Customer Service at 1 – 888 – 837 – 1380. TF2089904-KK-00 Eng Page 20 of 22 20150422 V.1...

  • Page 21: Troubleshooting

    LP tank valve. Disconnect the regulator from the LP tank and wait one minute. Reconnect the regulator control valve to the LP tank valve and slowly open the LP tank valve until it is fully open. TF2089904-KK-00 Eng Page 21 of 22 20150422 V.1...
  • Page 22 RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 1618 W.Rosecrans Ave.,Gardena, CA90249. CUSTOMER SERVICE: 1-(888) 837-1380 For assistance, contact customer service at customerservice@rankam.com or at (888) 837-1380, Mon to Fri, 8:00am – 5:00pm Pacific Standard time TF2089904-KK-00 Eng Page 22 of 22 20150422 V.1...
