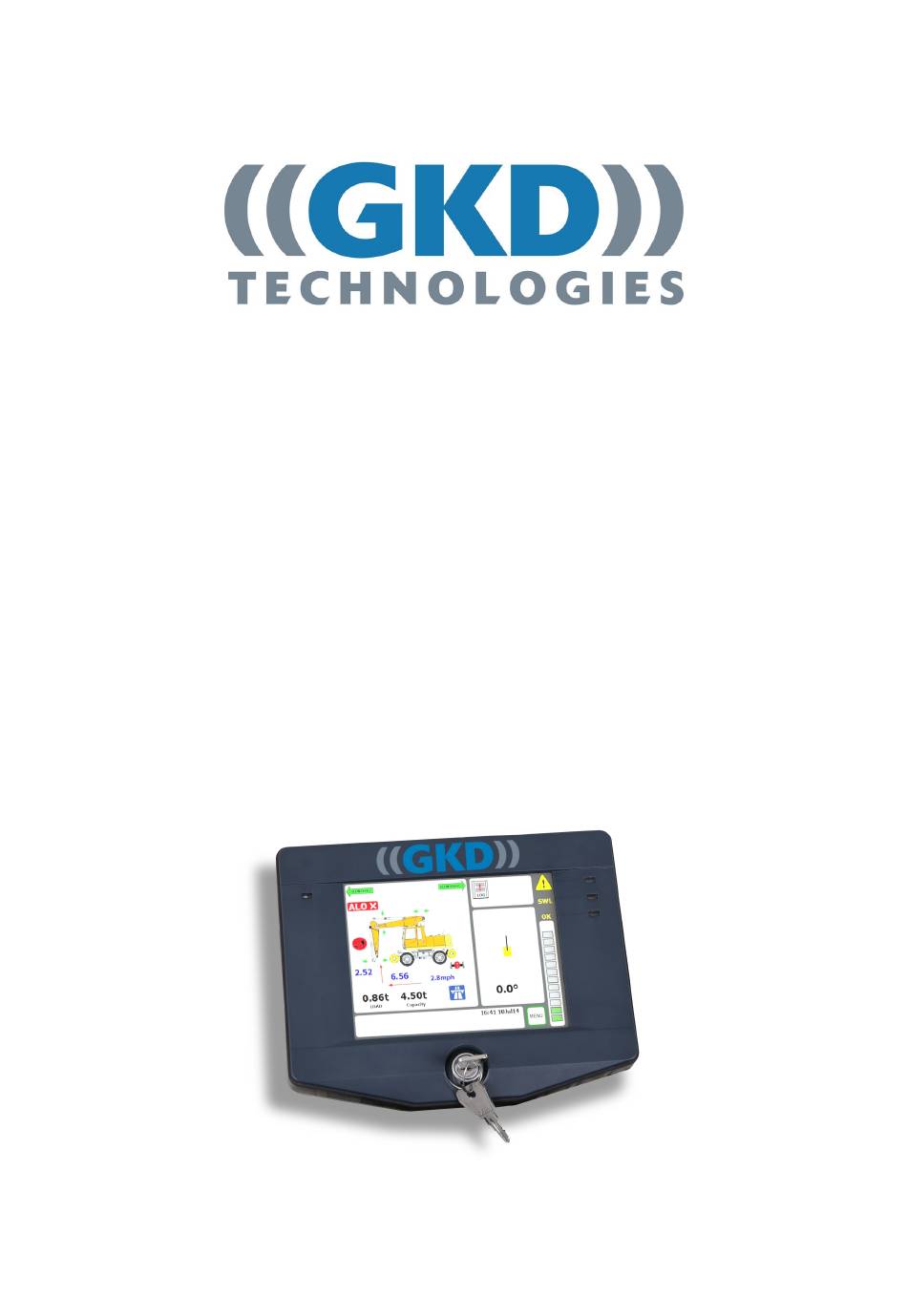

- Page 1 3RCI+ Quick Start Guide Covering both Standard and SpaceGuard Systems M3000010 v1.1...
-
Page 2: Screen Layout

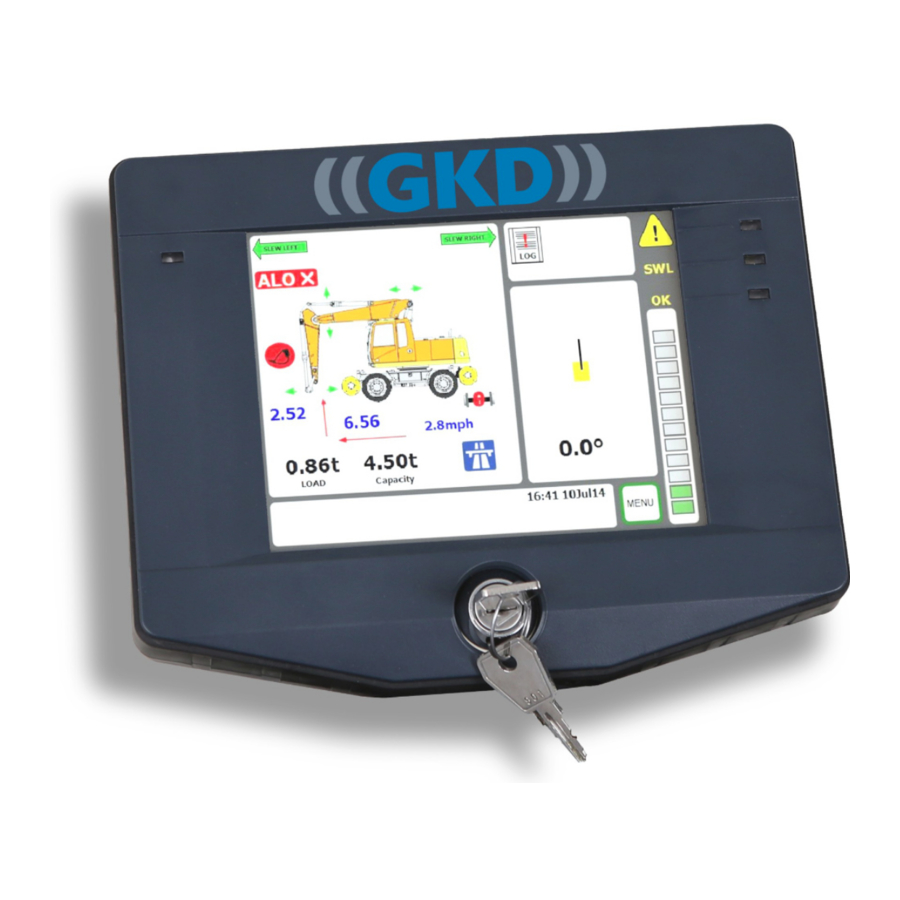

LED pacity and overload condition. System power GREEN LED flashes continuously to indicate power and system operation. Comms OK Light Sensor Automatically dims or brightens the screen, depending on lighting conditions. M3000010 GKD Technik Ltd... - Page 3 (Bucket Pin). Radius Radius of current lift point from the slew centre of the machine. Displays the current load on hook. This will include any attachments and the Load quick hitch. M3000010 GKD Technik Ltd...
- Page 4 4) Logging symbol with red cross - Log is inoperative or card full. These arrows indicate the safe direction each piece of equipment can be moved. Movement GREEN indicates movement is safe. indicates movement is unsafe. M3000010 GKD Technik Ltd...
- Page 5 TLJB (demountable tele jib) Only those options enabled within the software will be available. Selecting the incorrect lift point will not compromise the safety of the system, but height, radius and load values may be inaccurate. M3000010 GKD Technik Ltd...
- Page 6 When the axle is locked - in rail mode only. When a height limit has been reached. When the air pressure is detected as being low (air brakes) - in rail mode only. M3000010 GKD Technik Ltd...
- Page 7 Services that cause machine movement away from the height limit will always be allowed. To turn off a set height limit press [MENU] and the [HEIGHT LIMIT IS ON]. The height limit will be turned off. M3000010 GKD Technik Ltd...
- Page 8 To turn off a set slew limit press [MENU] and then [SLEW ANGLE IS ON]. The slew limits will be turned off. When a slew limit is set, you will see the following on the operator main screen. Current counter Current clockwise clockwise limit. limit. M3000010 GKD Technik Ltd...
- Page 9 RIS1530 rev4 and above the blue RCI indicator lamp on the cab will blink on and off at 2 second intervals. To turn Tandem Lift mode OFF press [MENU] and then [Tandem is ON]. Tandem Lift mode will be turned off and the machine lift capacity will return to standard lift duties. M3000010 GKD Technik Ltd...
- Page 10 [MORE] tab will bring up a list of all detected errors on the system. Below is a link to the GKD Knowledge base where you can find definitions of all the error codes for the 3RCI+ System including SpaceGuard.
