AquaShield BFP10 Installation Instructions

Hide thumbs
1
2

Advertisement

Table of Contents

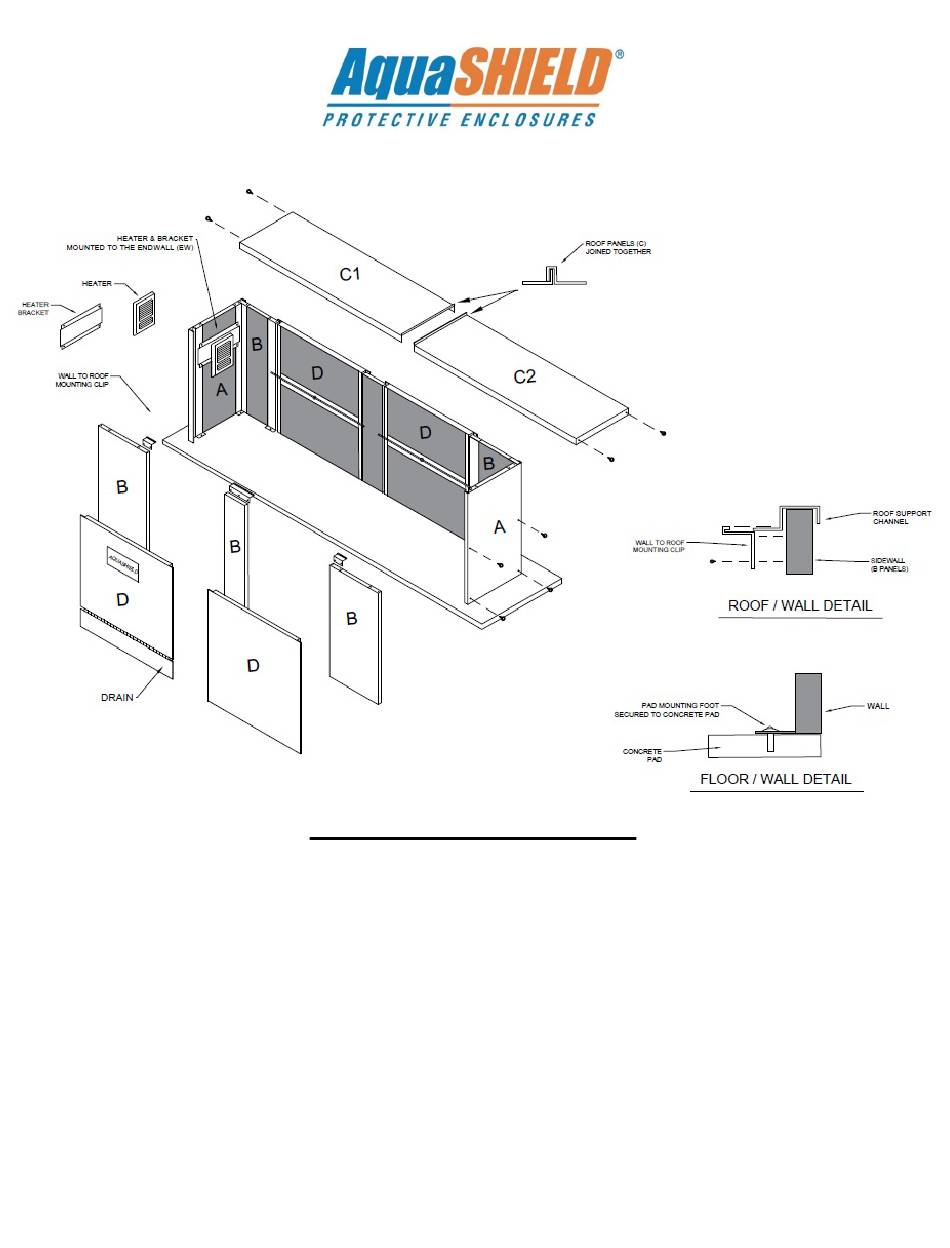

1. Provide a concrete mounting pad according to the "Mounting Pad Preparation" sheet. Using the BFP as
centerline, mark the outside dimensions of the enclosure on the concrete pad.
2. Assemble end wall panel (A) and side wall panels (B) by sliding side walls into end wall and secure with self-
tapping screws through holes provided in (A) panel. Note: Pad mounting tabs on panels must be down for
securing to pad. Repeat with remaining (A) & (B) panels. Set assembles sections on marked pad centered around
BFP devise.
3. Set roof panel (C1) & (C2) on assembled wall sections as shown. Fasten with screws through holes pro- vided
in the end of roof panels as shown. Temporarily set the center post in place to support the roof. Secure the roof
together on the inside at the joint through the holes provided in the roof joint plate.
4. To insure proper fit of access panels, verify that the door openings have the same dimensions across
the top and bottom and the walls are plumb. Secure enclosure to pad with masonry anchors provided.
(FIG.1)
5. Attach "roof to wall mounting clips" to roof and screw to support channels on side walls at access
openings and center post. (FIG.2)
INSTALLATION INSTRUCTIONS
SERIES: BFP10

ENCLOSURE ASSEMBLY INSTRUCTIONS
