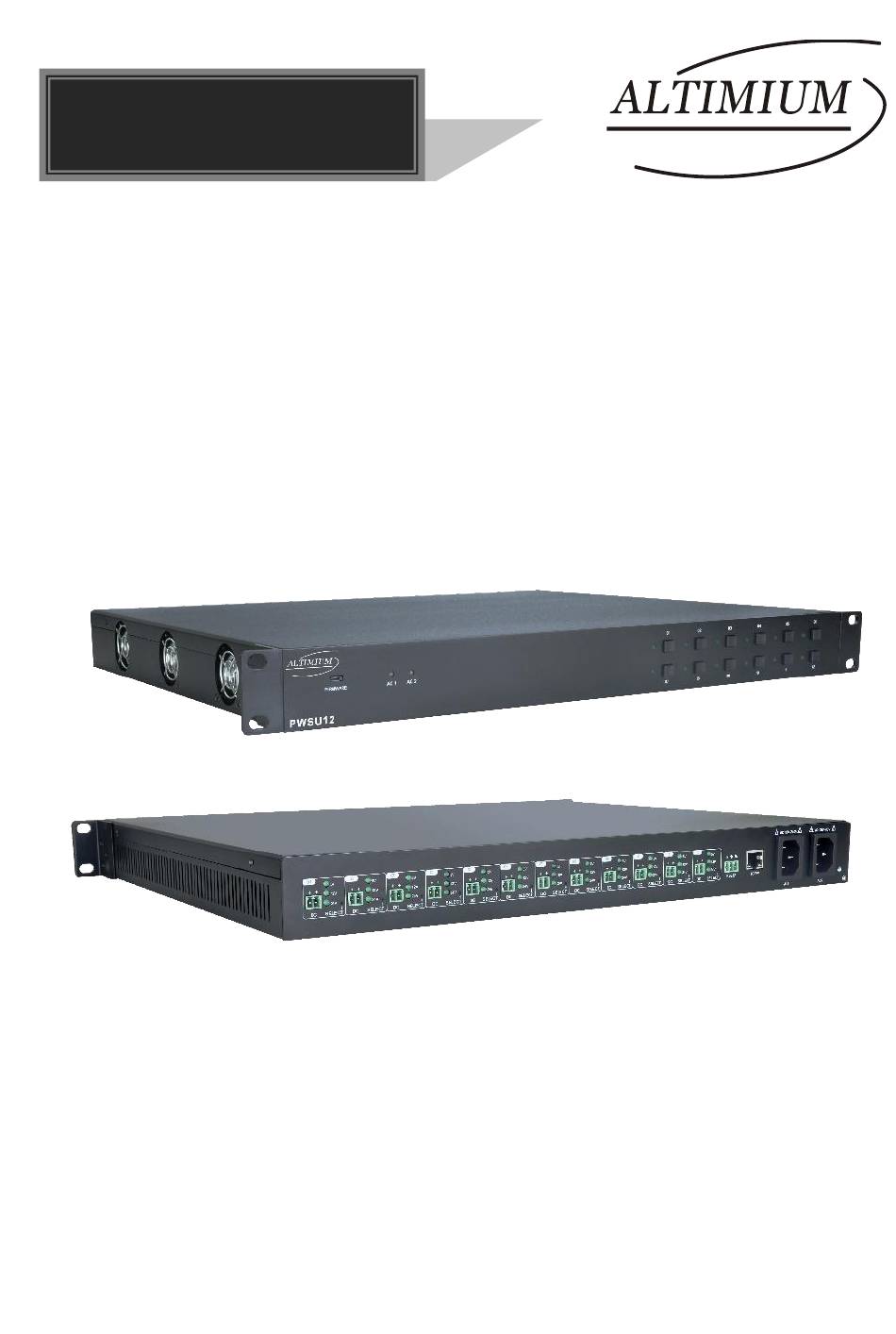

User Manual

PWSU12

Integrated Switching Power Supply

Version: PWSU12_2016V1.0

Table of Contents

Need help?

Do you have a question about the PWSU12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Altimium PWSU12

Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
Page 3  Unplug the power cord when left unused for a long period of time.  Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com...
Page 4 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Altimium www.altimium.com...
Page 5 21. WARNING：For the terminals marked with symbol of “ ” may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to Altimium www.altimium.com...
Page 6 - Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. Altimium www.altimium.com...
Page 7 Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection. Caution – To prevent electric shock hazard, replace grille. (CSA 60065, clause 5.3A) Altimium www.altimium.com...
Page 8: Table Of Contents
4.3.2 Voltage Setting Menu ................11 4.3.3 Network Menu ..................12 4.3.4 Password Menu ..................13 4.3.5 Web-based GUI Update ................ 13 5. Specification ......................14 6. Panel Drawing ......................15 7. Troubleshooting & Maintenance ................16 8. After-sales Service ....................18 Altimium www.altimium.com...
Page 9: Introduction
RS232 commands, or web-based GUI.  Adopt sequential control technology.  Supports online software upgrading. 1.3 Package List  1 x PWSU12  2 x Power Cable  12 x Power Cable (2-Pin phoenix connectors to DC)  1 x 3-Pin phoenix connector ...
Page 10: Panel Description
Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product. 2.2 Rear Panel AC100V 240V AC100V 240V TCP IP SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT RS232 SELECT Altimium www.altimium.com...
Page 11 Ethernet port, connect with PC to control the product via ③ TCP/IP Web-based GUI. ④ AC1& AC2 2 AC input channels. Input voltage is AC100~240V. Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product. Altimium www.altimium.com...
Page 12: System Connection
Step2. Connect the PC to the RS232 port on rear panel. Step3. Connect the PC to the TCP/IP port on the rear panel. Step4. Connect the power cables to the one or both of AC1 and AC2 input port. Altimium www.altimium.com...
Page 13: System Operations
 Uninstallation Delete all the control software files in corresponding file path. 4.2.2 Basic Settings Double-click the software icon to run this software. Here we take the software CommWatch.exe as example. The icon is showed as below: Altimium www.altimium.com...
Page 14: Rs232 Communication Commands
All@. Switch on all output channels. All Open. All$. Switch off all output channels. All Closed. Switch on the output channel [x], [x]@. [x] Open. x =1~12. Switch off the output channel [x], [x]$. [x] Closed. x =1~12. Altimium www.altimium.com...
Page 15 Over N N N N N N N N N N N N Lock N N N N N N N N N N N N When x =NULL, clear the data of all Clear[x]. Clear All. Group. Altimium www.altimium.com...
Page 16 Lock N N N N N N N N N N N N /*Name; Query the manufacturer. /*Type; Query the product model TPUH-PSU12 /^Version; Query the software version. V x. x. x Baud[x]. Baud [x] not change. Set the baud rate as x. x = 1200, Altimium www.altimium.com...
Page 17: Web-Based Gui Control
4.3 Web-based GUI Control In addition to control the product via front panel button and RS232 communication software. This product can be controlled via web-based GUI. It allows users to interact with the product through graphical icons and visual indicators. Altimium www.altimium.com...
Page 18 Connect a PC to the TCP/IP port on the rear panel, and set its network segment to the same as the default IP of the product (192.168.0.178, port No.: 4001). Same network segment as the product. Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below: Altimium www.altimium.com...
Page 19: Control Menu
Click the All On to switch on all output channels.  Click the All Off to switch off all output channels. 4.3.2 Voltage Setting Menu Click Voltage Setting on the top of page to enter voltage setting menu shown as below: Altimium www.altimium.com...
Page 20: Network Menu
Click Network on the top of page to enter network setting menu shown as below: In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are Altimium www.altimium.com...
Page 21: Password Menu
After that, click Administration at the source menu to get to Upload Program as shown below: Select the desired update file and press Apply, it will start upgrading then Altimium www.altimium.com...
Page 22: Specification
Baud rate support 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600,115200. TCP/IP port (RJ45). Web-based GUI Control Default IP: 192.168.0.178 Port No.: 4001 General Temperature 0 ~ +50℃ Humidity 10% ~ 90% Dimension (W*H*D) 437mm x 44mm x 357mm Net Weight 4.2Kg Altimium www.altimium.com...
Page 23: Panel Drawing
Integrated Switching Power Supply 6. Panel Drawing 437 mm FIRMWARE AC 1 AC 2 PWSU12 AC100V 240V AC100V 240V RS232 TCP IP SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT Altimium www.altimium.com...
Page 24: Troubleshooting & Maintenance
TCP/IP port. Cannot control the device The correct port No. is The port No. are wrong. Web-based GUI 4001. Make sure the connection Fail or loose connection is good. Altimium www.altimium.com...
Page 25 RS232 / The device has already been Send authorized front panel broken. dealer for repairing. buttons/web-based GUI. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com...
Page 26: After-Sales Service
 Product version and name.  Detailed failure situations.  The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor. Altimium www.altimium.com...
Page 28 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
