Summary of Contents for Coopers 10607

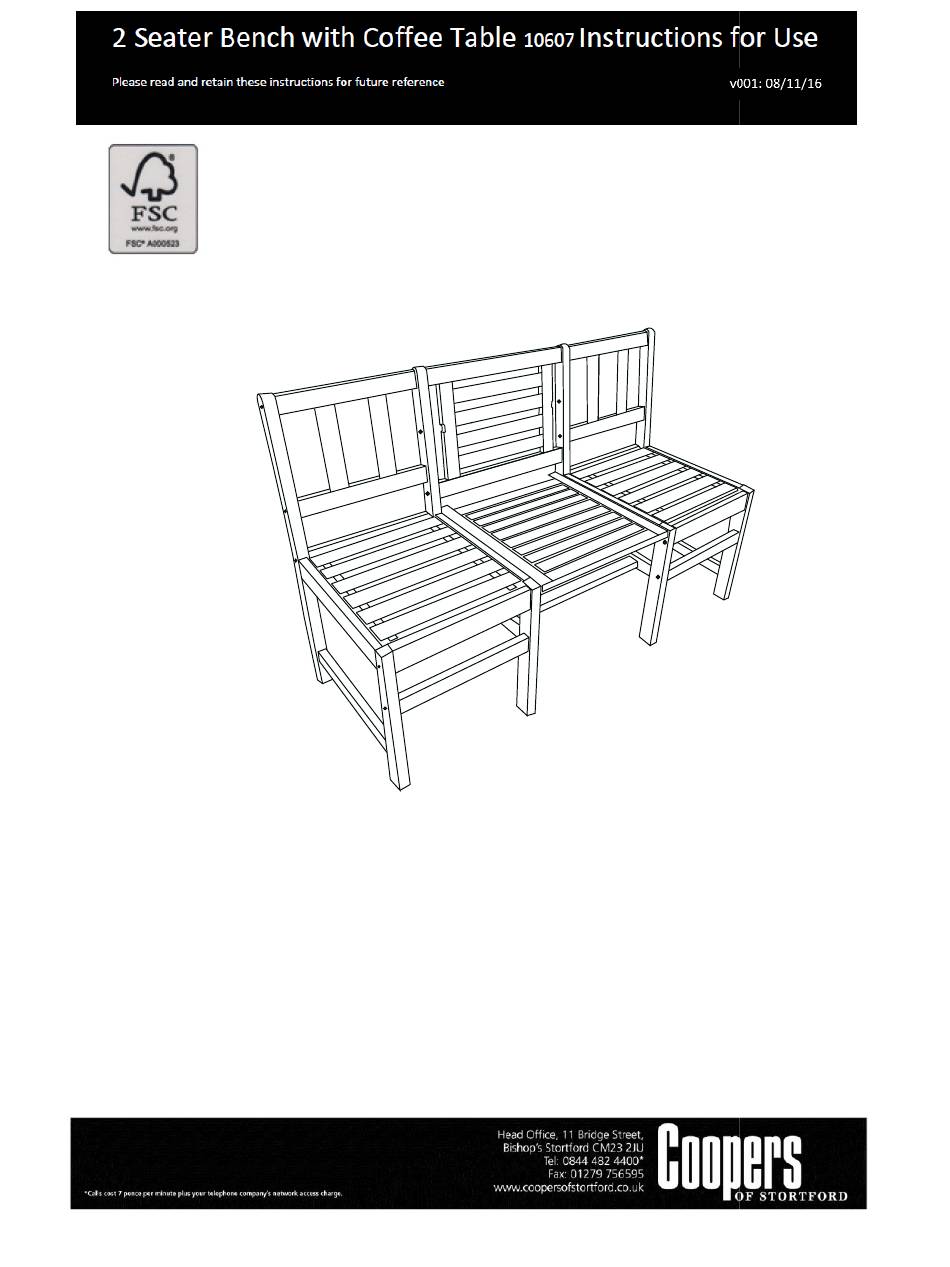

- Page 2 Parts list: Outside panel panel x2 Large screw x10 Large screw Inside panel x panel x2 Large Bolt Large Bolt x16 Backrest x2 Bolt nut x16 Bolt nut Middle seat Small bolt Small bolt x2 (or table) (or table) Middle Backrest Middle Backrest x1 Medium Screw x2 Medium Screw x2...
- Page 3 Step 1 Assemble each chair separately. Assemble each chair separately. Attach the Outside Panel (Part A A) to the Backrest (Part C), and the Seat Brace ( ), and the Seat Brace (Part G), Front Bar (Part K), using Large Screw (1) and Large Screw (1) and the Large Bolts (2) together with Bolt nuts together with Bolt nuts (3).
- Page 4 Step 2 Connect the Middle Backrest (Part E) to the Inside Panels (Part B), using Medium Screw Connect the Middle Backrest (Part E) to the Inside Panels (Part B), using Medium Screw Connect the Middle Backrest (Part E) to the Inside Panels (Part B), using Medium Screw (5) and Large Screw (1).
- Page 5 Step 4 Attached the table (Part D) to the Middle Backrest Part E), using Small Bolts (4). Attached the table (Part D) to the Middle Backrest Part E), using Small Bolts (4). Attached the table (Part D) to the Middle Backrest Part E), using Small Bolts (4). Fasten the hook on the Table stand bar (Part L) to the connection bar (Part I) to make sure on the Table stand bar (Part L) to the connection bar (Part I) to make sure on the Table stand bar (Part L) to the connection bar (Part I) to make sure...
- Page 6 Step 5 If do not want to use table, pull out If do not want to use table, pull out 2 Small Bolts (4) and move it to become a seat. to become a seat. Bolts Bolts...
- Page 7 t ZE/E'^ hd/KE^ EKd EKd • • • <' <' • > E/E' /E^dZhd/KE^ • /^WK^ >...
