Summary of Contents for Bolide iPacNX BN7029

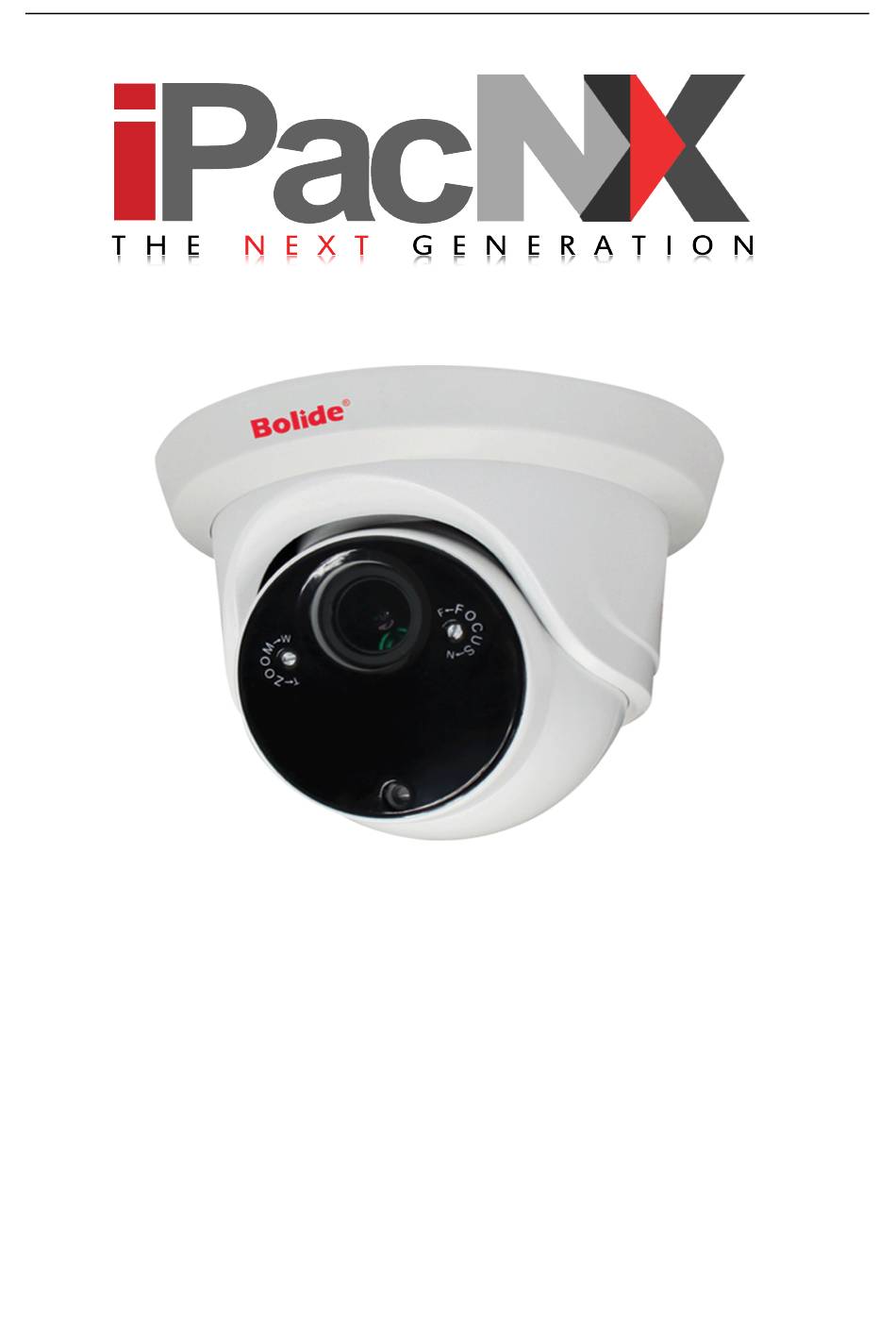

- Page 1 User Manual...
-
Page 2: Table Of Contents
User Manual Contents Introduction ............................... 3 1. Overview ............................... 4 1.1 Range of Application ..........................4 1.2 Product Description ..........................4 1.3 Operation Environment ........................... 5 2. Device Connection ............................5 3. Device Operation Instructions ........................6 3.1 Check Connection ........................... 6 3.2 Searching Device ............................. - Page 3 User Manual 7.1 Audio ..............................22 7.2 Logs ............................... 23 8. System Parameters ............................24 8.1 Basic Information ..........................24 9. Advanced ..............................26 9.1 System Update ............................26 9.2 Default Parameters ..........................26 9.3 System Maintenance ..........................27...
-
Page 4: Introduction
User Manual Introduction Thank you for using our network camera products, which are integrated and developed for network video monitoring, including Storage Network Bullet, Wireless Storage Network Bullet, IR Network Dome, IR Network Weather-Proof Cameras and High-Speed Network Ball. High-performance single SOC chips are used in media processor for audio/video acquisition, compression and transmission/transfer. -
Page 5: Overview
User Manual 1. Overview 1.1 Range of Application The network cameras with powerful image processing capacity may be applied at various public places such as mall, supermarket, school, factory and workshop, as well as in environments requiring HD video image such as bank and traffic control system, as shown below: Monitoring Center 1.2 Product Description... -
Page 6: Operation Environment
User Manual 1.3 Operation Environment Operating system: Windows 7/Windows 8/Windows 2008 (32/64-bit), Windows 2003/Windows XP/Windows 2000 (32-bit) CPU: Intel Core Duo II dual-core processor or higher Memory: 1G or more Video memory: 256M or more Display: 1024 × 768 or higher resolution IE: IE 6.0 or higher version 2. -
Page 7: Device Operation Instructions
User Manual 3. Device Operation Instructions 3.1 Check Connection The default factory IP address for IP camera is 192.168.1.168 and the subnet mask is 255.255.255.0. Allocate to your computer an IP address in the same network segment as the IP camera, for example, 192.168.1.69, and a same subnet mask as that of the IP camera. - Page 8 User Manual Note: IPC Device Search uses multicast protocol for device searching across segments but any firewall forbids traffic of multicast data packets, so any firewall must be disabled in order that network the information on device can be acquired. Online device searching procedure 1.
-
Page 9: Installation Of Controls And Login To System
User Manual 3.3 Installation of Controls and Login to System Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in components must be installed by observing the following procedure: Access IP address of the IP camera to automatically load the controls from it. In a pop-up plug-in installation dialog box, choose an installation option to perform the installation process. - Page 10 User Manual In the login box you can choose a language for the IE client. Enter your user name (admin by default) and password (admin by default) and then press OK to open a preview frame as shown below: Some buttons in the preview frame are described below. : Color setting button, for setting of color, brightness, contrast, saturation and sharpness of the frame.
- Page 11 User Manual Login Interface for H.264 IP Cameras in 1.3MP/2MP Series Figure 2 In this login page, you can choose preview bit stream, language for IE client and port number. Enter your user name (admin by default) and password (admin by default) and then press OK to open a preview frame as shown below: Some buttons in the preview frame are described below.
-
Page 12: Parameter Setting
User Manual Click Path Configuration button to pop up the following dialog box: In this dialog box you can set video storage location, paths for download of remote file and storage of image snaps, file type (RF by default, in H265 encoding) and video recording duration. -
Page 13: Image Control
User Manual 4.2 Image Control Click on Image Control in Display Configuration to open the following page: IR-Cut Model: Classified into GPIO Automatic, Colored, and Black-White models. Delay: IR-cut switching delay. Image Flip-Over: vertical or horizontal flip-over and rotation angle (0° , 90° , 180° , 270° ) Image Control: backlight compensation, 3D noise reduction, WDR, automatic gain, shutter speed, exposure time and de-moist model. -
Page 14: Roi (If Applicable)
User Manual Procedure of setting video blocking: Check Enable Video Blocking Press down and hold the left mouse button and drag out a area for video blocking (up to four areas at one time) Click on Save to enable the video blocking area. Remove: After clicking Refresh, choose a blocked area by clicking it and then click Remove and click Save to remove it. -
Page 15: Network Parameters
User Manual Non-ROI frame rate: Set frame rate out of RIO area; smaller value indicates higher-quality image in ROI area. Range of frame rate is in relation to video standard and resolution. (Note: Different non-ROI frame rates may be allocated to different ROI areas, but the minimum value among them is used as the frame rate to be applied for the non-ROI area on the preview frame. -
Page 16: Bit Stream Setting
User Manual UPNP: Enable or disable UPNP function for the device (enabled by default) Note: To enable UPNP, the media/web/cell phone port should be set to a value between 1024-65535; the media port is used for connection of proprietary cell phone client; cell phone port is used for connection of ASEE or ASEE+client. -
Page 17: E-Mail Configuration
User Manual I frame interval: Set I frame interval. Bitrate control: Set constant or variable bitrate for bit stream. Bit stream: Set bit stream value by choosing fixed value or customizing it. Note: Range of main bit stream is 256-8192. Range of sub-bit stream is 128-4096. -
Page 18: Ddns Configuration
User Manual 5.4 DDNS Configuration Click on DDNS Configuration in Network Parameter menu to open the following page: DDNS configuration: Dynamic DNS configuration - used with server for access from an extranet. Enable DDNS: Enable or disable it. Address of server: Choose "3322". Name of host: Enter the name of active server User name: Name of the user Password: Password of the user... -
Page 19: Ip Filtering
User Manual 5.5 IP Filtering Click on IP Filtering in Network Parameter menu to open the following page: Filtering mode: Three modes are available (Allow all IP connections, Allow all IP connections as set, Forbid IP connection as set). Add: Add any allowed or forbidden IP address Delete: Delete any IP address added previously 5.6 RTSP Click on RTSP in Network Parameter menu to open the following page:... -
Page 20: Ftp
User Manual RTSP Port: The default port number is 554, and can be changed to another value between 1024 and 65535. Modification to the parameter will restart the system. Operation Instructions: For IP cameras of 3MP/4MP Series: rtsp://IP:Port/ch00/A A:0 (main bit stream), 1(sub-bit stream), 2 (cell phone bit stream) For IP cameras of 2MP Series: rtsp://IP:Port /A A:0 (main bit stream), 1(sub-bit stream), 2 (cell phone bit... -
Page 21: Alarm Parameter
User Manual 6. Alarm Parameter 6.1 Mobile Detection Click on Mobile Detection in Alarm Parameter menu to open the following page: Procedure of setting Mobile Detection: Check Enable Mobile Detection. Press down and hold the left mouse button and drag out an area for mobile detection. Set the sensitivity for mobile detection (ranging from 1 to 8;... -
Page 22: I/O Alarm (If Applicable)
User Manual 6.2 I/O Alarm (if applicable) Click on I/O Alarm in Alarm Parameter menu to open the following page: I/O Alarm Input: Enable or disable I/O alarm. I/O Alarm Output Time: Set I/O alarm output time (10s, 20s, 40s, 60s) Recording Delay Time: After checking Enable Triggered Recording, you can set recording delay time (5S/10S/20S/30S) 6.3 Lens Blocking... -
Page 23: Device
User Manual 7. Device It includes Logs and Audio. Their interfaces and functions are described below. 7.1 Audio Click on Audio in Device menu to open the following page: Procedure of setting Audio: Check Open Audio option to access audio setting, and set audio input/output volume (ranging 0~10), and then click on Save to save the parameters set. -
Page 24: Logs
User Manual 7.2 Logs Click on Logs in Device menu to open the following page: Log Type: Eight types of logs are available - system logs, network logs, parameter logs, alarm logs, user logs, recording logs, storage logs and all logs). Choose the starting and ending date/time for retrieval. Click on "Search"... -
Page 25: System Parameters
User Manual 8. System Parameters System parameters include Basic Information, User Configuration and System Information. Their interfaces and functions are described below. 8.1 Basic Information Click on Basic Information in System Parameters menu to open the following page: The device time, system time, date format and time format contained in the basic information can be manually set and saved. - Page 26 User Manual 8.2 User Configuration Click on User Configuration in System Parameters menu to open the following page: Here you can set user access authority and login password. 8.3 System Information Click on System Information in System Parameters menu to open the following page: Here some system information on the device will be displayed, including device type, MAC address and software version.
-
Page 27: Advanced
User Manual 9. Advanced It includes System Update, Default Parameters and System Maintenance. Their interfaces and functions are described below. 9.1 System Update Click on System Update in Advanced menu to open the following page: Update will be unavailable if the update files do not match the target device. 9.2 Default Parameters Click on Default Parameters in Advanced menu to open the following page: Check relevant options and click on Save to recover the default factory settings for the options as checked. -
Page 28: System Maintenance
User Manual 9.3 System Maintenance Click on System Maintenance in Advanced menu to open the following page: Here you can set regular restart or manual restart of the device. - Page 29 User Manual...
