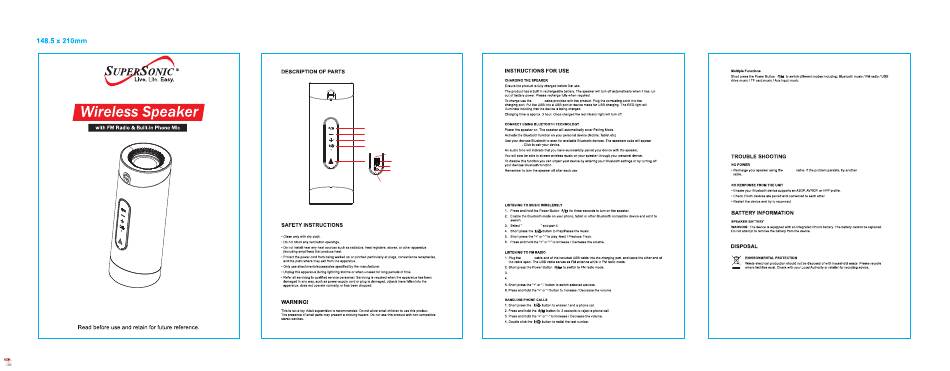

Supersonic SC-2342BT Quick Start Manual

Model No.: SC-2342BT
Type-C
Power ON/Off/Mode
Previous track/Volume down
Next track/Volume up
Play/Pause,Long press to turn the light on/off SC-2342BT
TF CARD Input
USB Thumb Drive Input
Indicator light
AUX Input
Type-C Charging port TWS CONNECTION:
TWS Connection is only for two "SC-2342BT" speakers:
●Turn on both speakers.
●Double click the "+" on both speakers to pair two speakers together for full stereo sound.
●The pressed speaker will become the master speaker.
SC-2342BT
Type-C
Short press the play pause button to activate automatic channel search.
Short press the play pause button to stop automatic channel search.
TECHNICAL SPECIFICATION
●Supported Input: Bluetooth, USB Thumb Drives, TF Cards, AUX-In
●Bluetooth Version: V5.0
●Bluetooth Range: 10 metres
●Battery: Built-in 1800 mAh Lithium
●Working Time: Approx.3.5 hours
●Charging Time: Approx. 3 hour
●Speaker Output Power: 5W*2
●Speaker Impedance: 4ohm
●Frequency Response: 120Hz～20KHz
●Rechargeable: Type-C cable (INCLUDED)
●3.5mm auxiliary cable (Not INCLUDED)
(Note: Battery life & charging time may vary based on usage & types of devices used.)
Long press to turn the light on/off.
Warranty
Basic Warranty StatementSupersonic Inc.("Supersonic") warrants this product to the original purchaser ONLY,
to be free from defects in materials and workmanship under normal use, for ninety (90) DAYS from the date
of original purchase. Proof of purchase (receipt) required.
Please visit http://www.supersonicinc.com/warranty for additional information.
Garantía
Declaración básica de garantía Supersonic Inc. ("Supersonic") garantiza este producto al comprador original
SOLAMENTE, para estar libre de defectos en materiales y mano de obra bajo uso normal, por noventa (90) DÍAS
a partir de la fecha de compra original. Se requiere una prueba de compra (recibo).
Visite http://www.supersonicinc.com/warranty para obtener información adicional.
