Summary of Contents for Siku Infraplate pro Classic SLIM

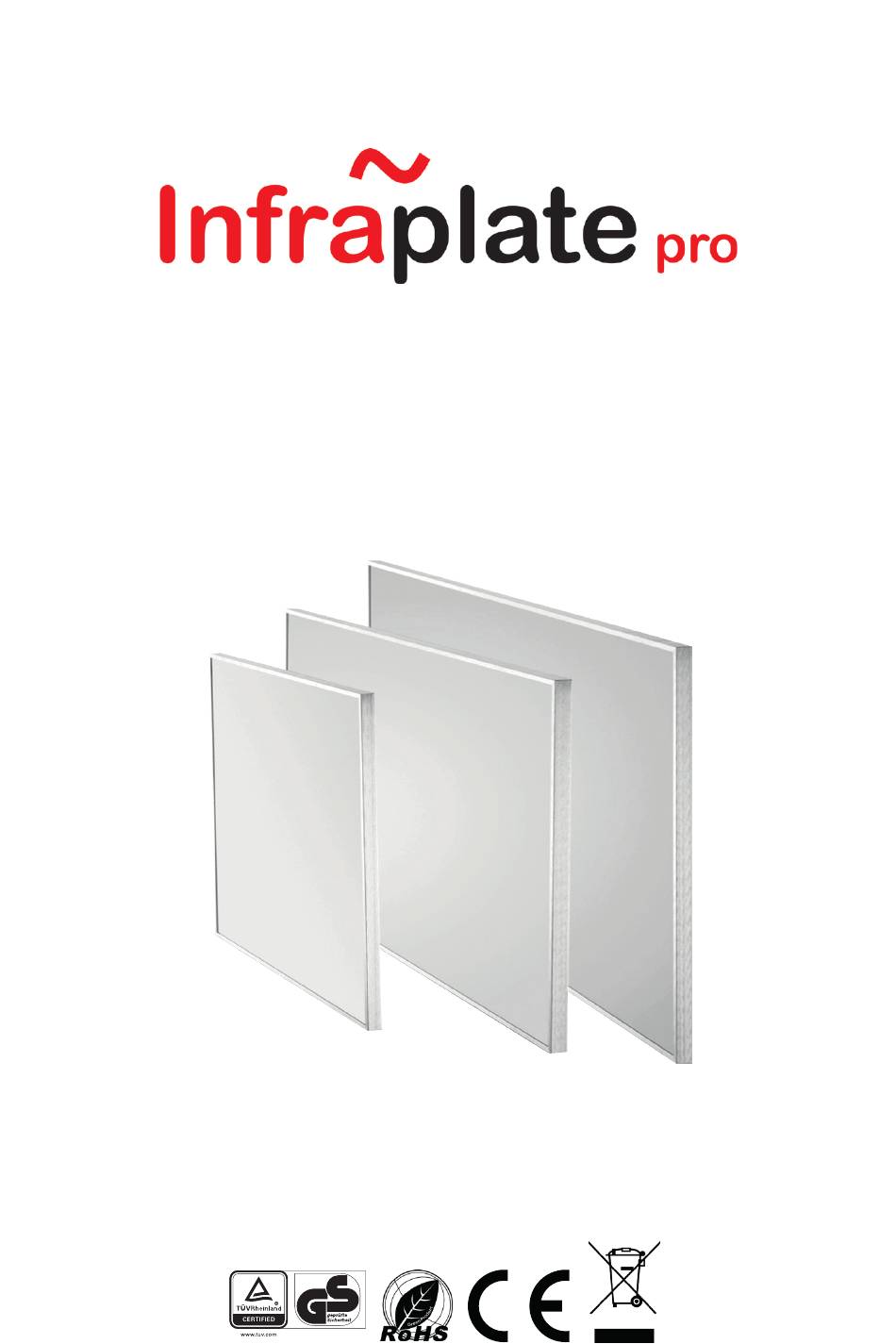

- Page 1 INSTRUCTION MANUAL (EN) SIKU Infraplate pro Classic SLIM ID 1000000000...
-
Page 2: Table Of Contents
CONTENT Elivery scope ..........3 Warning signs ..........3 Models ............4 Accessories ........... 5 Note ............5 Warnings & precautions ........6 Product characteristics ........7 Technical data ..........8 Accessories ........... 10 Equipment configuartion ........10 Installation ..........11 Troubleshooting ....::...... -
Page 3: Elivery Scope
DELIVERY SCOPE infrared heating plate screws dowel drilling template WARNING SIGNS... -
Page 4: Models
MODELS This instruction manual applies to the following models: SIKU Infraplate pro IPP 1100 SLIM WW (Art. Nr. 50589) SIKU Infraplate pro IPP 240 SLIM DW (Art. Nr. 50585) SIKU Infraplate pro IPP 400 SLIM DW (Art. Nr. 50586) SIKU Infraplate pro IPP 550 SLIM DW (Art. -
Page 5: Accessories
TS20 - Thermoschaltersteckdose (Item no. 50520) - is a digital, temperature-dependent, switched socket for automatic regulation of SIKU Infraplate pro series electrical heating systems - up to six time intervals with three temperature levels can be set for each day... -
Page 6: Warnings & Precautions
Thank you for purchasing our product. Please read the User manual carefully before using the product for the first time use and follow all safety precautions to ensure safe use. If you pass the product on to third parties, the operating instructions must also be handed over. WARNING NOTICES &... -
Page 7: Product Characteristics
16. The hot plate must not be placed next to or onto inflammable or meltable objects such as wood, straw, curtains, plastics, etc. 17. Safety distance: 30 cm to the front, each 10 cm to the right and left side. 18. -
Page 8: Technical Data
3,5 A 6,1 kg bis zu 13m² RoHS, CE SLIMDW „DW“ stands for ceiling mounting. (When purchasing a „DW“ heating plate, the SIKU IPP-DAS ceiling or the IPP-chain suspension kit is also required as an accessory). „WW“ stands for wall mounting. - Page 9 Heat output Maximum Auxiliary power Expanse of Nominal heat Models continuous heat consumption at heat rays output output Nominal heat output IPP1100 2,1 m 1,1 kW 1,1 kW 1,15 kW SLIMWW IPP240 0,7 m 0,3 kW 0,3 kW 0,312 kW SLIMDW IPP400 1,2 m...
-
Page 10: Accessories
ACCESSORIES SIKU IPP-DAS ceiling suspension set SIKU IPP-Chain (Item no. 50583) (Item no. 50432) • Length about 52 cm • 4 x 1 meter steel wire, • Weight: 0.33 kg load capacity up to 30 kg • Load capacity up to 50 kg •... -
Page 11: Installation
INSTALLATION Choose installation position, Fix drilling template (D) to observe required minimum the wall, drill holes. distances. Insert dowels (C). Suspend infra red hot plate Position bolts (B) into the (A). bowels. Fasten bolts. The bolts should extrude about 0.5 cm from the wall. Connect plug with socket. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE TROUBLESHOOTING High noise level after Occurs frequently, Built-up of tension in normal connection and no counter measures the structure. initial use. required. Occurs frequently, Surface of hot plate Heat expansion of no counter measures bends slightly upwards. surface material. -
Page 13: Manufacturer's Warranty
MANUFACTURER‘S WARRANTY Dear User, Thank you very much for purchasing SIKU Infrared Panel Heaters. Sincerely hope that our products can bring you warmth and comfort! We warrant for a period of 5 years from the production date, which will remedy any defects due to faulty material or workmanship for free through maintenance or replacement. -
Page 14: Warranty Card
WARRANTY CARD Product Name ____________________________________________________________ Series & Model Number ___________________________________________________ Fault Description _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ Dealer Info Dealer Name _____________________________________________________________ Purchase Date ___________________________________________________________ Client Contact Info Client Name _____________________________________________________________ Contact Number __________________________________________________________ Adress __________________________________________________________________... - Page 16 SIKU VertriebsgmbH | Bundesstraße 5 | 2102 Bisamberg | Austria Tel.: +43 2262 61 521 | www.siku.at | office@siku.at...
