- Page 1 USER MANUAL ONT 4AC 310017 NETWORK TERMINAL GPON ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Telf: +34935839543 · info@ek.plus · www.ek.plus...
- Page 2 USER MANUAL ONT 4AC TABLE OF CONTENTS Introduction ..............................................3 Description ............................................. 3 Key features ............................................3 Packaging content........................................... 3 Interfaces y LEDs ........................................... 4 Interfaces ..............................................4 LEDS ................................................5 Acces to ONT ............................................6 FAQ ..................................................7 ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·...

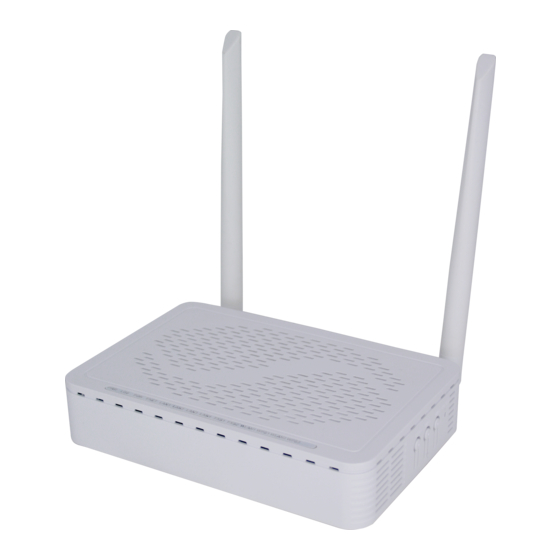

- Page 3 USER MANUAL ONT 4AC Introduction Description GPON Optical Network Terminal (ONT)+ Wireless router b/g/n/AC. 4 ports GE + 2 ports POTS + WiFi b/g/n/AC. Key features • 4 x Auto adaptative 10/100/1000 Base-T Ethernet ports. • WIFI 3x3 11b/g/n 2,4 GHz y 3x3 11n/ac 5,8 GHz. •...
- Page 4 USER MANUAL ONT 4AC Interfaces and LEDs Interfaces POTS port: Port to connect analog telephone terminal. Ports: We will connect the end equipment (PC, SWITCH, printers, etc.). Power: We will connect the 12v power supply. Power button: To turn the machine on or off. LED button: With this button we will or will not override the LED ignition.
- Page 5 USER MANUAL ONT 4AC LEDs POWER: In fixed green the equipment is connected to current and ignition. LOS: When turned on with red flicker, the PON does not synchronize. It is suggested to check the status of the installation, the cable itself, the connectors, the splitters… PON: Green flashing the fiber cable is fine but the ONT has not been provisioned.
- Page 6 USER MANUAL ONT 4AC Access to ONT We have to take into account that ONTs works at an optical threshold from -8dBm to -28 dBm. Once we have everything right, we will follow the next steps We turn on the ONT and connect to LAN. We should have automatic DHCP enabled on our computer.
- Page 7 USER MANUAL ONT 4AC • We don't see the equipment on the OLT: Check the status of the PON LED, if it's not green and the LOST part is flashing it means the PON part is wrong. • We provision the ONT but we cannot navigate when connecting the PC: Verify that the PON and LAN port are turned on.
