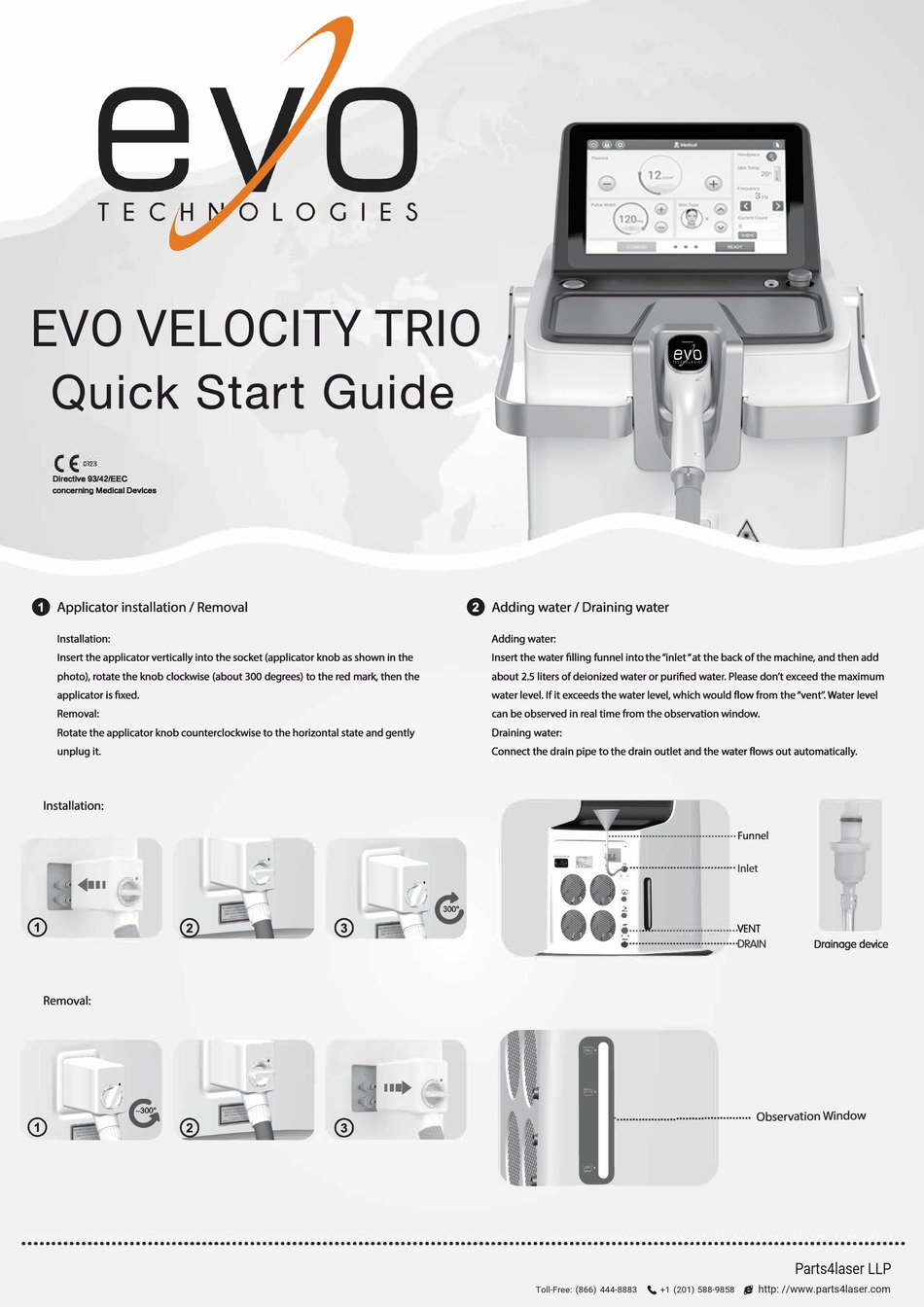

EVO VELOCITY TRIO
Quick Start Guide
Directive 93/42/EEC
concerning Medical Devices
0
Applicator installation/ Removal
Installation:
Insert the applicator vertically into the socket (applicator knob as shown in the
photo), rotate the knob clockwise (about 300 degrees) to the red mark, then the
applicator is fixed.
Removal:
Rotate the applicator knob counterclockwise to the horizontal state and gently
unplug it.
In s tallation:
◄■
11
©
R e moval:
©
f)
Adding water/ Draining water
Adding water:
Insert the water filling funnel into the"inlet" at the back of the machine, and then add
about 2.5 liters of deionized water or purified water. Please don't exceed the maximum
water level. If it exceeds the water level, which would flow from the"vent''. Water level
can be observed in real time from the observation window.
Draining water:
Connect the drain pipe to the drain outlet and the water flows out automatically.
�.
111
Toll-Free: (866) 444-8883
LI
····················· .. ··········· Inlet
�m
.................................... D RA I N
. .................. ......... ............... Ob se r vation Window
§j http: //www.parts4laser.com
\. +1 (201) 588-9858
Drainage device
Parts4laser LLP
