- Page 1 IP Power 9223K-D User Manual Release Date: 10/19/2012 Manual Version: 1.1 Firmware:4.01 - 1- Ref#9223KD0001...
- Page 2 IMPORTANT NOTICE 1. IP Power 9223K-D was designed to be used with a protective covering, the user is responsible for any damages caused from misuse, or use under inappropriate conditions. Like plug in 2 power input at same time which cause the board damage.
-
Page 3: Table Of Contents
Table of Content 1.) WELCOME .........................4 ..........................4 NTRODUCTION 2.) PRODUCT OVERVIEW ......................4 ..........................4 EATURES ....................4 INIMUM YSTEM EQUIREMENTS ..........................5 PECIFICATION ........................5 ACKAGE ONTENTS 3.) INTERFACE DESCRIPTION ....................7 ........................7 ARDWARE NTERFACE 4.) HARDWARE SETUP ......................8 .......................8 ETTING UP THE EVICE (NC) (NO) ............ - Page 4 ............................. 21 MAIL ........................... 22 HANGE ASSWORD ..........................22 OWER CHEDULE ........................... 24 ETWORK AKE UP ............................24 OGOUT ........................24 NTERNAL ......................... 24 ETTINGS 7.) CONTROLLING THE DEVICE ....................25 CGI HTTP C ......................25 OMMANDS ........................25 OWER OMMAND ......................
-
Page 5: Welcome

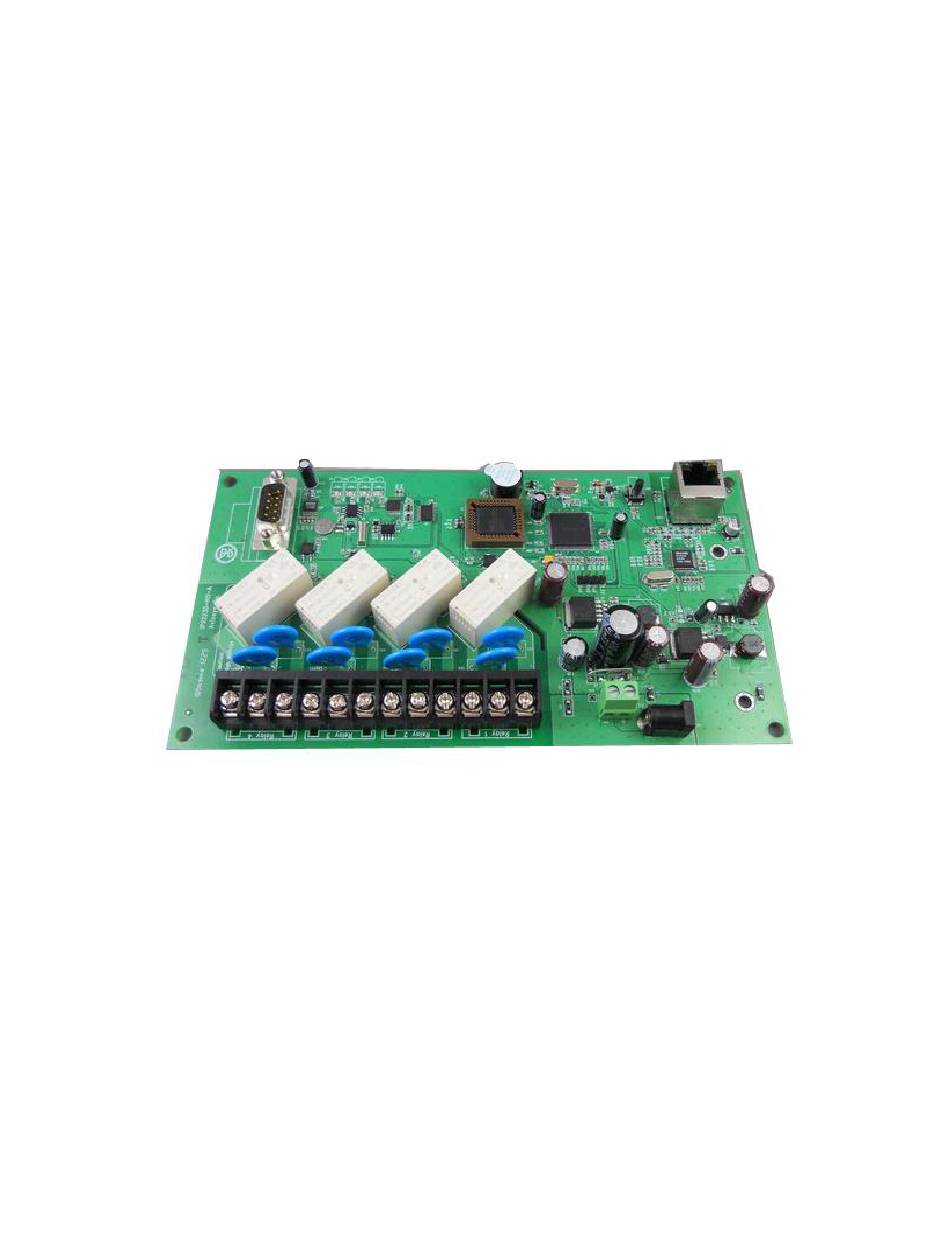

1.) Welcome Introduction The 9223K-D is an industrial grade 4 port bare board relay perfect to power management through an Ethernet connection. This device can easily integrate with other devices and allow power control with your integrated system. With the 9223K-D robust design and high quality components it provides an added incentive to other devices or can be used independently. -
Page 6: Specification
Specification * Power Input : Support 2 styles - Green terminal Block or Black power jack but user can only choose one power input to plug : Either green terminal block or black jack . DO NOT PLUG BOTH POWER IN. It is mis - use and will cause damage which is out of our warranty support . -
Page 7: Package Contents
Package Contents Package Contents 1.) 9223K-D x 1 Provide manual, software, and documentation 2.) 9223K-D Installation CD 3) Option : 12V 1A power adaptor - Input: 100-250VAC Output: 12VDC , 1A There are 5 style plug of power adaptor for most world wide countries ( USA , UK , Australia &... -
Page 8: Interface Description
3.) Interface Description Hardware Interface Spec : 12VDC~24VDC ,1 Amp * Green terminal power line in. * Black power jack for adaptor. Power input Notice : User can only select one power input . The board will be damaged if supply 2 power in which Way is misused and out of warranty support. -
Page 9: Hardware Setup
Aviosys is not responsible for any damages to the device or harm caused by from misuse, incorrect installation, and (or) dangerous environment. -
Page 10: Connecting Devices To The 9223K-D
Aviosys is not responsible for any damages to the device or harm caused by from misuse, incorrect installation, and (or) dangerous environment. -
Page 11: Internet Accessible Setup
1.) First connect the cables to the 9223K-D. Make sure that you have stripped enough of the cable so that the contacts can fit into the 9223K-D. a. During this part you will need to decide whether each relay will start normally open or normally closed. -
Page 12: Ip Edit Search Tool
5.) IP Edit Search Tool Using IP Edit IPEdit is a search tool designed to setup and access the IP Power 9223K-D. IP Service is an additional feature which searches for the device easily without having to remember long complicated IP addresses. Instead, this technology allows the user find his or her device through the internet just by device name. - Page 13 2.) Open IPEdit and any device in the same network should automatically be detected and listed in the local devices sections. Note: If the device is not showing up, please hit the rescan button and wait about 1 minute 3.) Click and highlight the device and the information on the device will populate on the right. Check to see if the gateway and IP Address match your current network.
-
Page 14: Ip Service
Note: In the 9223 under the system configuration page, you can select the IP server that you would like the 9223K-D to go to. You can select from the Aviosys server or the Cloud Server. 1.) Open IP Edit and Select the server that your 9223K-D is designated to. -
Page 15: Web Interface
6.) Web Interface Connecting to the 9223K-D After the device has been setup correct it is time to connect to the device. You can connect to the 9223K-D by using the following methods. 1.) Using IP Edit a. Open IP Edit and scan for the device. If the device is found double click on the Local devices section and a IE window should pop up to the login of the device Default IP: 192.168.1.100 Default Login: admin... -
Page 16: Gpio Configuration
GPIO Configuration Set I/O The Set I/O configuration is where most of the live power control is done. From this panel the user can directly turn off power, set timers and turn power back on. PIN I/O The Pin I/O column is the labels for the ports on the device. By default the output ports are labeled as Out1, Out2, Out3, &... -
Page 17: Define I/O Name
Define I/O Name Define I/O is the section that allows the user to define the device name, country, and city. As well as the names of each of the power outputs. Device Name Setup The device name setup is where the device name, country, and city can be set. These fields are optional and are used with IP Service to easily find the device on the internet. -
Page 18: System Settings
Then if you would like to save it to memory you can push the memory button. This means if the device is set to default settings, the name of the device will be whatever you have chosen in memory. To restore a memory name you can click on the GetMemory button. System Settings System Configuration The system configuration page allows the user to configure the system of the 9223K-D. -
Page 19: Advance Setup
DHCP: This will enable or disable the DHCP on the device Beeper: This will enable or disable the beep on the device Http Command Verification: This will enable or disable the http commands for the 9223K-D Release Version: Will provide information on the current firmware for the device Advance Setup The advance setup section allows the user to setup SNMP functionality for the 9223K-D. -
Page 20: E-Mail
DDNS Server IP: The DDNS server IP Your domain: Type in the dyndns domain name DDNS Username: Enter the DDNS username here DDNS Password: Enter the DDNS password. Enable DDNS: When using DDNS make sure that it is enabled. If user is using a proxy account, you will need to enable it here. Proxy Enable: Select true of false to enable or disable the proxy server Proxy IP: The Proxy IP is the IP Address of the Proxy Server Proxy Port: Enter the port of the proxy server here. -
Page 21: Power Schedule
Changing the password of the device: 1.) Type in the old password for the device 2.) Then type in the new password maximum of 8 chararters 3.) Repeat the new password again 4.) Then hit the submit button. The login required option allows the user to choose whether they would like to disable login capabilities for the device. -
Page 22: Network Wake Up
Pin I/O On/Off: Select the action of choice, On or off For example: If you would like to turn on the device at 8AM and turn off the device at 8PM, the device may be set in this fashion. System Startup Power Default Value: The system power default allows the user to select the power to be on or off by default when the device is powered up. -
Page 23: Logout
Logout Click on the Logout link after you finish each session of using the IP Power 9223K-D. This will ensure that any other person that uses the device next will not be able to control the devices without logging in. -
Page 24: Set Power Command
Set Power Command The Set Power command allows you to control the devices on/off through the http commands. With this command you can integrate can integrate the 9223K-D with any other system. Outlet Power On Power Off Output 1 61 = 1 61 = 0 Output 2 62 = 1... -
Page 25: Rs232 Control
RS232 Control is available to be added as an optional feature. This option, if required is available on a project basis to fit each individual usage. Please contact us at Sales@Aviosys.com for more info. 8.) Frequently Asked Questions (F.A.Q) Please visit our FAQ section on our website for the latest and most updated information on this product. - Page 26 Q3: What can I do if I forget my password? Ans: In the login field enter the field 1.) “super user”: do not enter the quotation marks and there is a space between super and user. 2.) Then do not enter, a password and hit the submit button 3.) Unplug the device and plug it back in.
