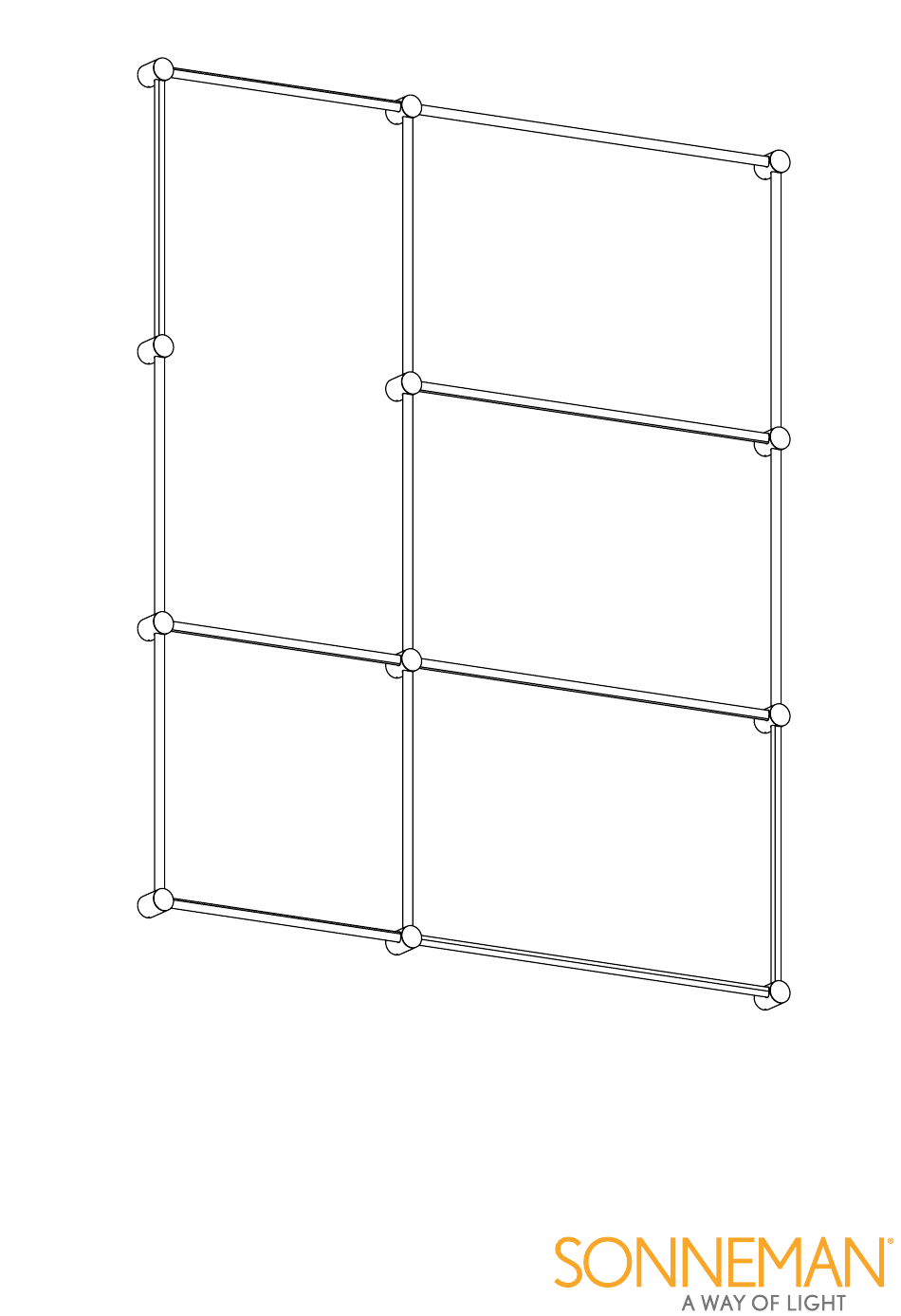

- Page 1 360 ™ assembly instructions...
- Page 2 July 7, 2020 Purolinear 360™ Product Information and Warnings Important • Always disconnect the power before installing or replacing Luminaires and before cleaning or other maintenance. • Consult a qualified, licensed electrician to ensure correct branch circuit conductor. Consulter un électricien qualifié pour vous assurer que les conducteurs de la dérivation sont adéquats.
- Page 3 Welcome to Purolinear 360™ A Purolinear 360 configuration is built from LED Luminaires and Connectors. Illumination radiates from the Luminaires, which can be rotated in their Connectors to shine in any direction. The Connectors form a structural and electrical connection between the Luminaires, and can be configured in many different ways.
- Page 4 2’ 2’ 2’ 2’ 2’ 2’ 2’ 2’ 18’ 2’ 2’ 2’ 2’ Fig. 2 Fig. 3 Passes #2 Fails #2 by relocating power feed >16ft branching from X Connector 3 of 7 ©2020 SONNEMAN - A Way of Light...
- Page 5 6. Any Connector type may be used as a power feed. 12’ Linear Unbalanced 4’ 4’ 4’ FEED 4’ 8’ 12’ Linear Balanced 3’ 3’ 3’ 3’ FEED 6’ 6’ Fig. 6 4 of 7 ©2020 SONNEMAN - A Way of Light...
- Page 6 Note: Hold Connector (F) and keep wires slack. Do not allow wires to twist while screwing on canopy. 6. Place Connector (F) on mounting bracket (G) and secure by tightening set screws (E) using included Allen key. Fig. 7 5 of 7 ©2020 SONNEMAN - A Way of Light...
- Page 7 4. Cap or trim exposed ends of Connector wires and place inside Connector (B). 5. Place connector (B) on mounting bracket (C) and secure by tightening set screws (A) with included Allen key. 6 of 7 Fig. 10 ©2020 SONNEMAN - A Way of Light...
- Page 8 Note: To remove Luminaire from Connector, gently tilt and pull Luminaire to disengage Connector clips. Do not apply excessive force or damage to the Luminaire and Connector may result. Luminaire Luminaire Fig. 11 Luminaire Fig. 12 7 of 7 ©2020 SONNEMAN - A Way of Light...
