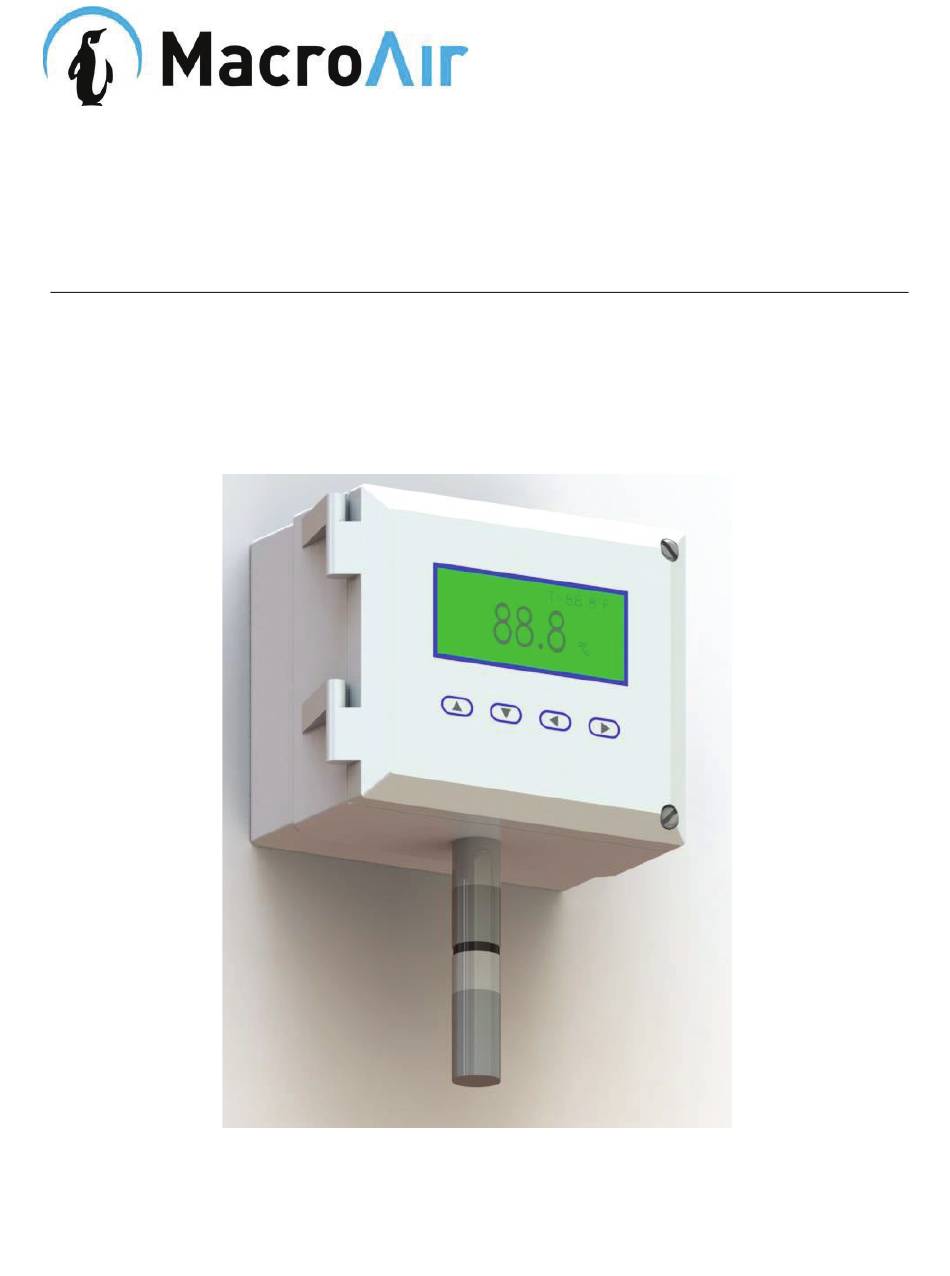

- Page 1 Operation Manual AirEffect...
-
Page 3: Table Of Contents
AirEffect Setup .............. 8 AirEffect Screen ............9 Zone Setup Screen ............11 Information Technical Support ............. 12 © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920... -
Page 4: Caution & Safety, Electrical Guidelines
Do not make any changes to any part of the motor control panel without first consulting MacroAir. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920... -
Page 5: Installation, Safety & Service
Introduction Electrical Guidelines, cont. ⚠ ATTENTION: Read. Read and understand this manual before installing or operating AirEffect. Installation, adjustment, repair, and maintenance must be performed by qualified personnel. ⚠ ATTENTION: Code Compliance. The user is responsible for compliance with all international and National Electrical Code requirements with respect to grounding of all equipment. -
Page 6: Aireffect Sensor Installation
3. Please refer to the wiring diagram. See pages 6-7 of this manual for proper stripping and bean crimping of wires. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920... - Page 7 Do not terminate the Brown/White wire on the drive or t-splice unless it is used to power one of these devices. Proper sensor placement is shown below: © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920...
-
Page 8: T-Splice Connection Method
4. Twist the 3 wires of same color from each CAT5e together. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920... - Page 9 Then fold them back and tape them up with electrical tape to clean up your wiring. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920...
-
Page 10: Aireffect Setup
Installation AirEffect Setup In order for AirEffect to operate properly, some setup is required. Please follow the below steps to ensure a smooth operation: 1. Ensure that the diameter is programmed on every fan’s Fan Configure Screen (Reference the Controller 30 Manual). -
Page 11: Aireffect Screen
Installation AirEffect Screen If your network was ordered with the AirEffect option, the AirEffect control screen can be accessed by tapping the “AirEffect” button. AirEffect allows your fans to run automatically based on temperature, humidity, and user preferences, creating the most comfortable environment possible. - Page 12 Installation AirEffect Screen cont. 12 Check Every - Allows you to specify how often AirEffect will check for changes in the environment and adjust accordingly. 13 Max Humidity - Allows you to set a desired maximum humidity as a condition for the fans to run.
-
Page 13: Zone Setup Screen
Installation Zone Setup Screen Pressing the “Zone Setup” button on the AirEffect screen will bring you to the zone setup page. This page allows you to add or remove fans from zones. Multiple zones are useful if you have fans in multiple rooms/environments that need to be run differently. Please note that two sensors are required per zone. -
Page 14: Technical Support
For installation assistance, application questions, technical support & any other inquiries, please contact our Technical Support team at (866) 668-3247 option 2. © 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com AirEffect Operation Manual 90-30017-00 Rev A-01 Date: 031920... - Page 15 794 South Allen Street San Bernardino, CA 92408 (866) 668-3247 Macroairfans.com...
