- Page 1 User Manual 1x2 HDMI 2.0 Splitter Scaler 4K@60 4:4:4 8bit HDR, Scaler Output SPDIF Optical Audio Output EZ-SP12HAS-PRO EZCOO, it’s easy, just cool！...
- Page 2 OVERVIEW EZ-SP12HAS-PRO is a 1x2 splitter for HDMI with Ultra HD 4K support. This splitter reliably distributes one HDMI source signal to two HDMI outputs. Especially when you have one 4K TV and one 1080P TV, the HDMI output2 can down scaler to 1080P if you have 4K source. Also the HDMI output2...
- Page 3 FEATURES ⚫ Distributes one HDMI source signal to two HDMI displays. It supports 4K and 1080P（multifarious resolutions） output simultaneously. ⚫ Support HDMI 2.0 4K@60Hz 4:4:4 8bit, HDR and HDCP 2.2 ⚫ Support HDMI output2 down scaler to 1080p,720p,1920X1200… ⚫ Support Audio DE-embed, Optical Audio out without TV connected ⚫...

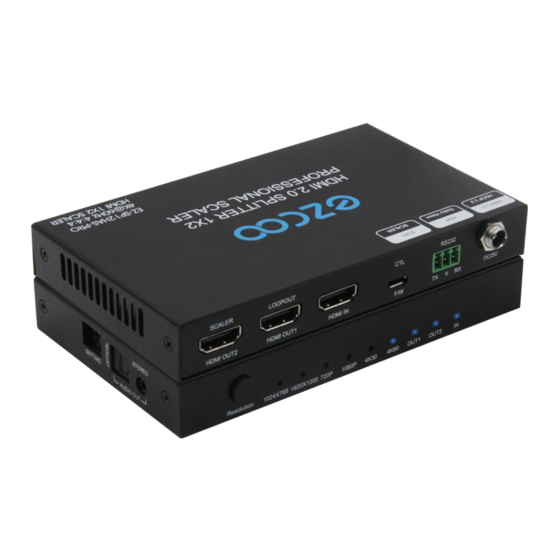

- Page 4 Product photo...
-
Page 5: Specifications
SPECIFICATIONS 1) HDMI version: HDMI 2.0 2) HDCP version: HDCP2.2 3) HDMI resolution: 4K*2K/1080p/1080i/720p/576p/576i/480p/480i 4) Support video color format: 24bit/30bit,36bit 5) Support audio format: Dolby true HD/DTS-HD/LPCM7.1/Dolby AC3/DSD 6) Max bandwidth: 600MHz Max baud rate: 6Gbps 7) Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL) 8) Input/Output DDC signal: 5Volts p-p (TTL) 9) Input cable distance: ≤15m AWG26;... -
Page 6: Installation
INSTALLATION 1. Connect one cable from HDMI source devices to HDMI Splitter input. 2. Connect one cable from each display (monitor or projector) to the HDMI Splitter outputs. Note: When you have 4K HDMI source device, but 1080P HDMI display device, please connect 1080P display to HDMI OUT2. -
Page 7: Dip Setting
DIP SETTING... -
Page 8: Scaler Setting
SCALER SETTING BUTTON SETTING Press ‘Resolution’ button to select a resolution, and the LED will be lighted. Press and hold down this button for 3 seconds and the resolution LEDS will flash 3 times, SCALER will be into AUTO MODE, HDMI OUTPUT2 output video depend on TV’EDID. - Page 9 You can use these commands set the HDMI OUT2 resolution or other setting. For scaler resolution setting, please send output setup commands: EZS OUTx VFMTy (x=2,y=0--19)
-
Page 10: Packing List
Resolution list: Command Resolution Command Resolution EZS OUT2 VFMT0 AUTO EZS OUT2 VFMT1 640x480@60 EZS OUT2 VFMT2 800x600@60 EZS OUT2 VFMT3 1024x768@60 EZS OUT2 VFMT4 1280x720@60 EZS OUT2 VFMT5 1280x768@60 EZS OUT2 VFMT6 1280x800@60 EZS OUT2 VFMT7 1280x986@60 EZS OUT2 VFMT8 1280x1024@60 EZS OUT2 VFMT9 1360x768@60... -
Page 11: Troubleshooting
CONTACTS When you need any technical assistance, please send e-mail to support@easycoolav.com TROUBLE SHOOTING 1. POWER: Make sure all devices are powered on. 2. INDICATOR: Check LED indicators of splitter are on 3. DEVICES: Make sure picture can be shown normally when connecting HDMI source to display devices directly. - Page 12 6. COMPATIBILITY: Please test other source and display devices to determine whether it is a compatibility issue. Notes Please use this machine based on below instructions to keep longer lifetime. 1. The machine should be placed at the spot far away from the Damp, High- Temperature, Dusty, Erosive, and Oxidant environment.
- Page 13 EZCOO TECHNOLOGY INC. assumes no responsibility for any inaccuracies that may be contained in this document. EZCOO TECHNOLOGY INC. also makes no commitment to update or to keep current the information contained in this document. EZCOO TECHNOLOGY INC. reserves the right to make improvements to this document and/or product at any time and without notice.
