LDI SAFCO 3441 Assembly Instructions

an LDI Company

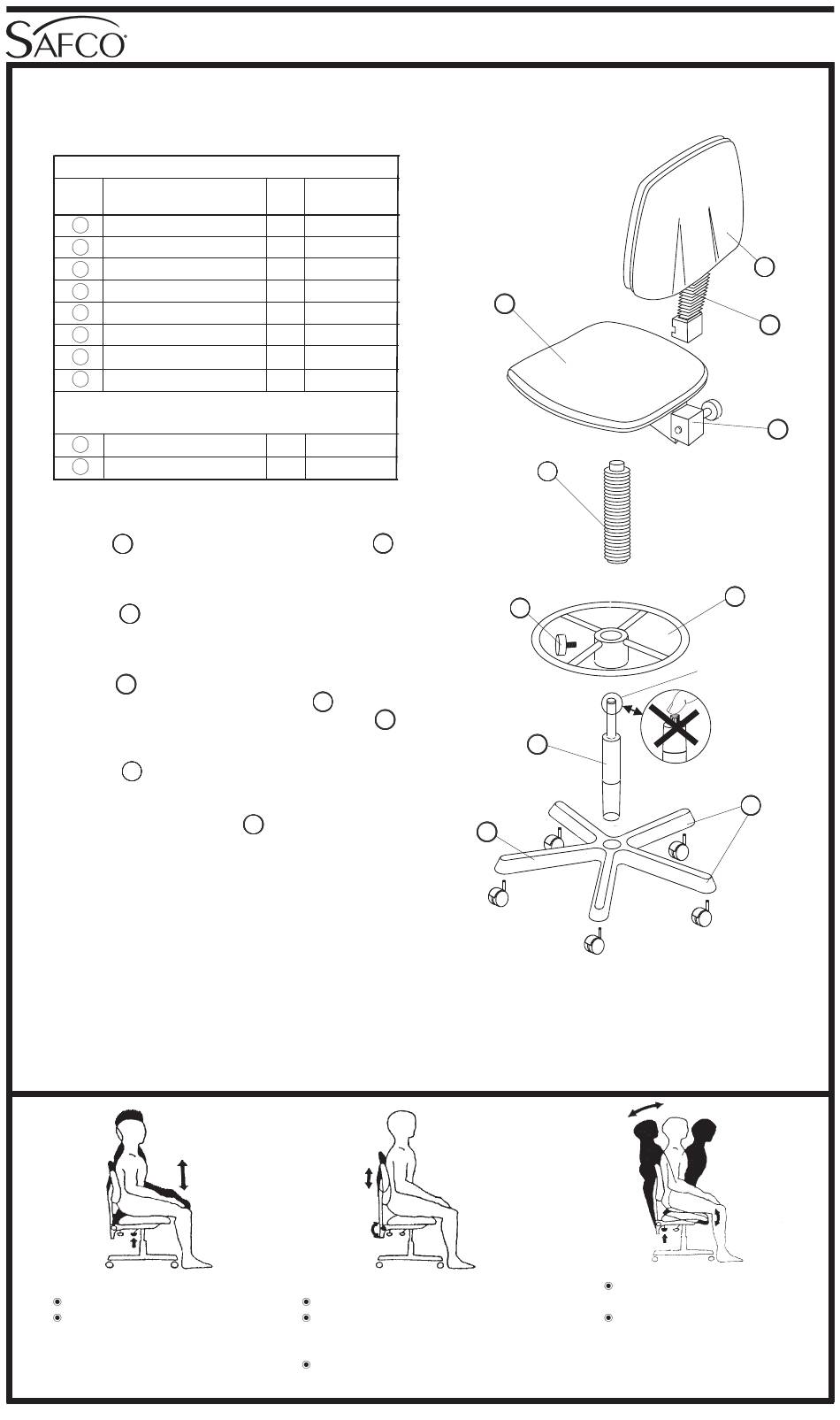

ASSEMBLY INSTRUCTIONS
READ THESE INSTRUCTIONS BEFORE STARTING
FOLLOW THE ASSEMBLY PROCEDURES CAREFULLY
LETTER
DESCRIPTION
CODE
Base
A
Casters
B
Pump Assembly
C
Footring
D
Footring Knob
E
Seat Cushion
F
Back Rest
G
Seat Bellows
H
NOTE: The following are pre-assembled;
no installation necessary
Back Bellows
I
Seat Mechanism
J
1
Turn the A Base upside down and insert the five B
Casters into the ends of the Base spokes. Turn the
Base right side up.
2
Insert the C Pump Assembly into the base, tapered
end down. Secure the Pump Assembly by applying
a little downward pressure.
3
Slide the D Footring over the Pump Assembly and
secure in the desired position using the E Footring
Knob (already in place). Slide the Pump Bellows H
over the Pump Assembly.
4
Place the F Seat Cushion onto the Pump Assem-
bly. Press down firmly (or sit) to lock into place.
5
Insert the support bar of the G Back Rest into
slotted end of the Seat Cushion's seatplate (slide the
bellows up onto the support bar to get it out of the
way during this step).
6
Slide the Back Rest support bar through the
seatplate opening. Push the Back Rest down as far
as possible.
7
Adjust the chair height, backrest height and backrest
angle as needed, following the instructions shown
below.
1. Adjust height of chair:
Keep feet flat on the floor.
With right forward lever,
adjust height so you feel NO
pressure under the back of
your thighs.
3441-37MP: 1 of 2; Rev. 9; 7/06
Highland Multi-Task Chair

PARTS LIST

QTY. PART NO.
1 3400-54
5 3400-75
1 3401-61
1 3401-62
1 3401-72
1 3440-51
1 3440-52
1 3400-14
1 3440-64
1 3440-55
2. Adjust height of backrest:
Sit deep into the chair.
By turning the rear knob, you can
position the backrest to your comfort
level.
Tighten knob to fix the backrest in
.
place
Safco Products Company, New Hope, MN 55428
F
H
E
C
A
For questions or concerns, please call the
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
MODEL
NUMBER
G
D
NOTE: REMOVE
PLASTIC CAP
B
3. Adjust the backrest angle:
Sit deep into the chair and place
feet flat on the floor.
Lift right rear lever to adjust seat
up or down; now adjust backrest
forward or back, keeping the seat
in place. Press down to lock in
place.
3441
I
J
