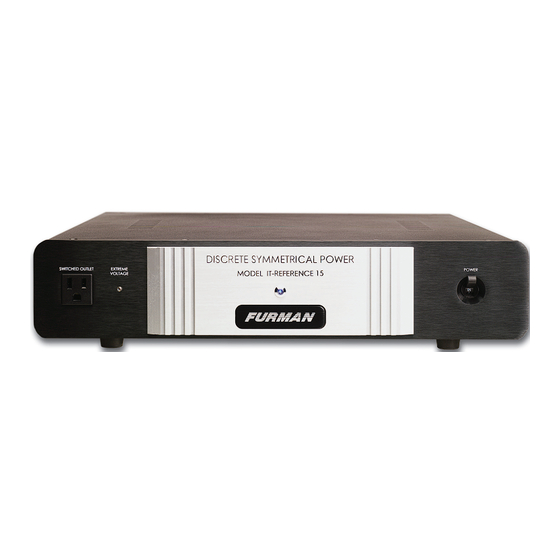

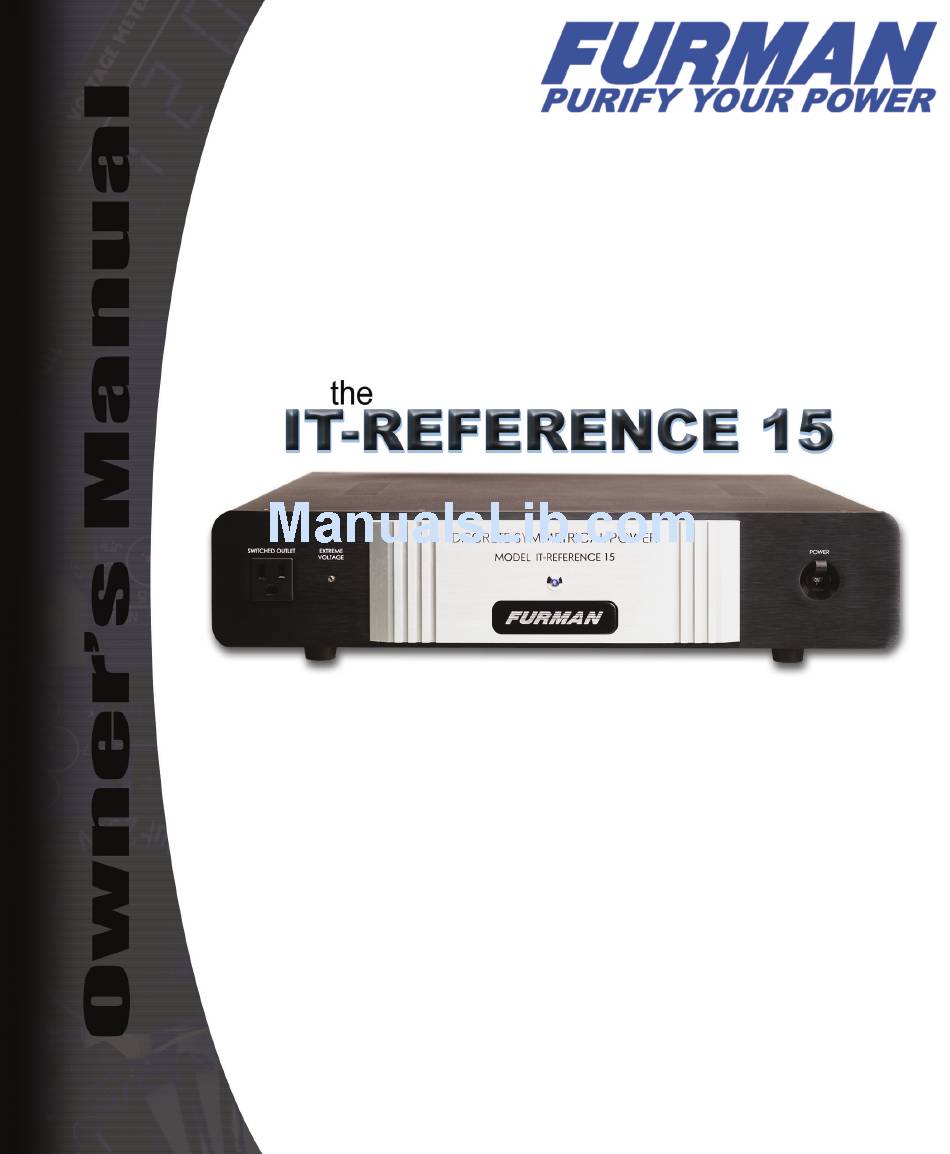

- Page 1 IT-REFERENCE 15 OWNER’S MANUAL...
- Page 2 IT-REFERENCE 15 OWNER’S MANUAL The I T- R e f e r e n c e 1 5 F e at u r e s • Discrete symmetrical balanced power cancels hum-inducing noise • Power Factor correction provides surplus current for power-starved amplifiers •...
- Page 3 IT-REFERENCE 15 OWNER’S MANUAL Introduction For over 31 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. Though the need for pristine AC power is nothing new, the IT-Reference 15’s technology and its unique implementation are revolutionary and without peer.
-
Page 4: Installation
15 unit, detachable AC cord, rack mount kit, owner’s manual, and warranty registration card. If anything is missing, please contact Furman Customer Service. Fill out and return your warranty registration card. Registration is recommended because it can be used to establish whether the unit is within the... - Page 5 IT-REFERENCE 15 OWNER’S MANUAL without a safety ground is considered improper operation and will invalidate the warranty. Power Source The power source to which the IT-Reference 15 is connected should be adequate for use at 15 Amps. The IT-Reference 15 will operate with a10 Amp service outlet;...
- Page 6 IT-REFERENCE 15 OWNER’S MANUAL sub-woofers should be connected to these four outlets. Many Audiophile and premium Home Theater systems will have combined continuous current demands below 15 Amps. It is rare, in fact, for large power amplifi ers to draw more than 4 Amps continuously.
- Page 7 The solution is our GFCI (ground fault circuit interrupter). The Furman GFCI detects any imbalance in the current fl owing in the two hot legs. The missing current is presumed to be fl owing through the ground conductor (the round pin on an AC outlet).
- Page 8 AC power is present at the unit’s outputs. If this happens, some level of protection from voltage surges will remain, but the Furman’s clamping voltage rating will be compromised. The unit must be returned to Furman Sound, or an authorized Furman Service center for repair.
-
Page 9: Warranty
Furman website. Shipping charges to the Furman factory or to an authorized repair location must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman’s option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman. - Page 10 Furman and complete the Furman Connected Equipment Warranty claim form (call Furman at (707) 763-1010 to obtain the form). Furman reserves the right to review the damaged Furman product, the damaged connected equipment, and the site where the damage occurred.
- Page 11 IT-REFERENCE 15 OWNER’S MANUAL IT-Reference 15 SPECIFICATIONS AC Current Capacity: Input - 20 Amp capacity required Output - 11 - 15 Amp RMS * (maximum, all outlets combined - continuous) * (Due to the Power Factor Correction circuit, available RMS power varies with the reactance of the load (vector).
- Page 12 IT-REFERENCE 15 OWNER’S MANUAL Furman Sound, Inc. 1997 South McDowell Blvd. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 Web: www.furmansound.com 12/18/04_A E-mail: info@furmansound.com...
