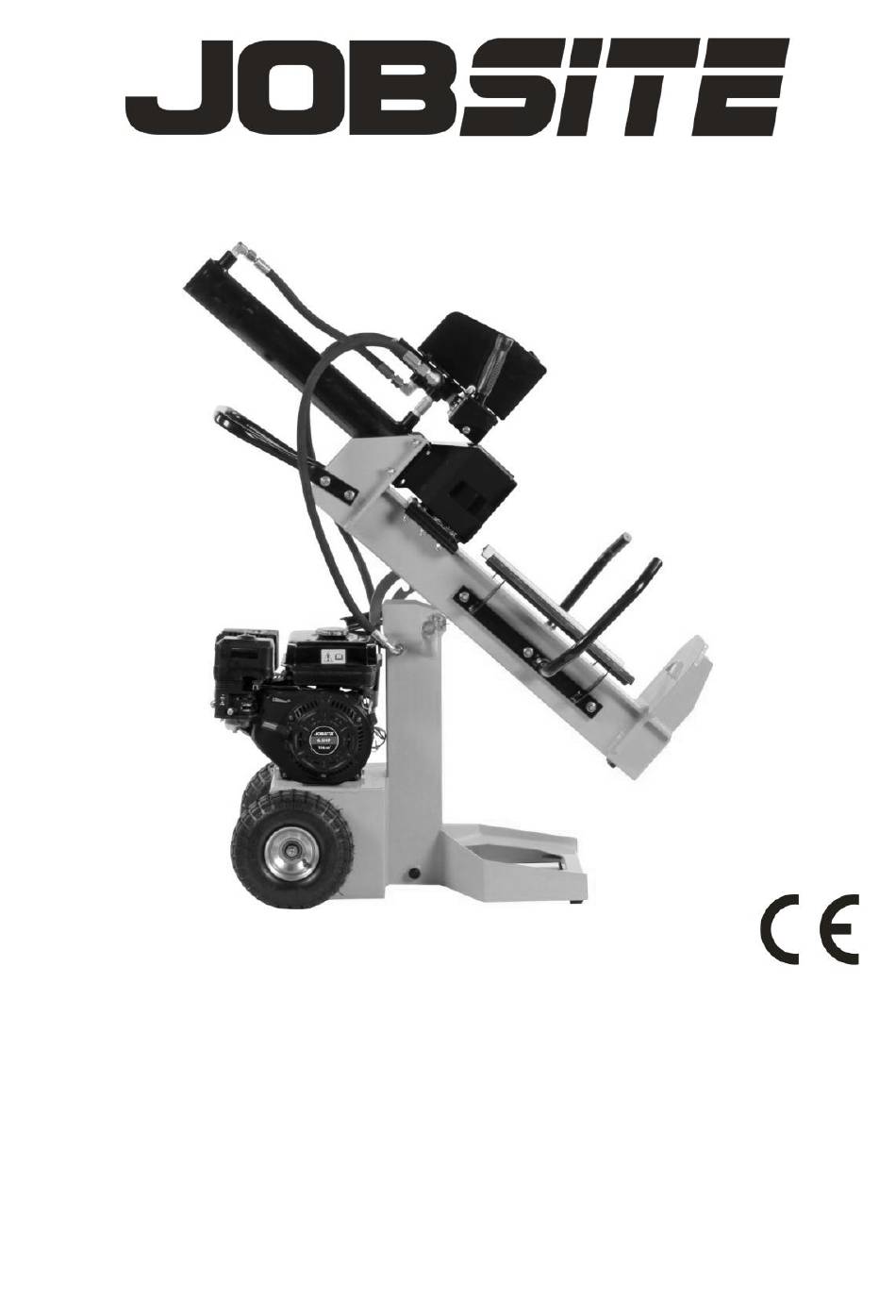

6.5HP LOG SPLITTER - CT3270
INSTRUCTION MANUAL
IMPORTANT:
These instructions accompanying the product are the original instructions. This
document is part of the product, keep it for the life of the product passing it on to
any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Advertisement
Table of Contents
Summary of Contents for Jobsite CT3270
- Page 1 6.5HP LOG SPLITTER - CT3270 INSTRUCTION MANUAL IMPORTANT: These instructions accompanying the product are the original instructions. This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before assembling, operating or maintaining this product.
-
Page 3: Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 6.5HP LOG SPLITTER Model: CT3270 Applicable EC Directives: EC Machinery Directive 2006/42/EC EC Directive of Electromagnetic Compatibility 2014/30/EU... -
Page 4: Specification
1. SPECIFICATION Max Splitting Force: 12 Ton Max Splitting Size: 520(L )x 300(D)mm Cylinder Diameter: 3” Travel Time: 29S Gear pump: 2.1GPM Hydraulic cylinder diameter: 3” Hydraulic oil No.: SHELL Tellus 22 MOBIL DTE 11 ARAL Vitam GF 22 BP Energol HLP-HM 22 Hydraulic Tank capacity: 8L Engine type: 6.5HP LONCIN Engine Displacement: 196cm... - Page 5 WARNING 1). Read this manual completely. -Serious injury or death can result if safety instructions are not followed.Everyone who operates the log must Splitter read and completely understand all safety rules, operating instructions,and maintenance instructions, and maintenance instructions. -You must be 16 or older to operate this machine. Keep untrained people away.
- Page 6 5). Risk of fire and explosion -Hot exhaust fumes from engine can cause fire. Gasoline is highly flammable and explosive.You can be burned or seriously injured when handling fuel. -Position muffler at least 7 feet from combustible objects. -Before adding fuel, stop the engine and keep heat, sparks, and flame away.Do not add fuel when engine is running or still hot.
- Page 7 2. Keep children away from the equipment, especially while it is operating. 3. DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED. Keep guards in place and in good working order. 4. Wear ANSI-approved safety goggles under full face shield, heavy-duty work gloves and steel-toe work boots during use.
-
Page 8: Technical Description

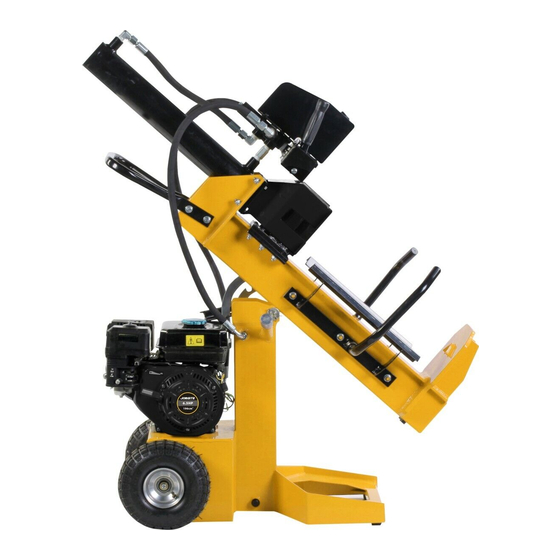

3. TECHNICAL DESCRIPTION 1. Hydraulic Cylinder 2. Control Valve Handle 3. Wedge 4.Log Guide &Guard 5. Beam 6.Lock Assemble 7.Main Body 8. Wheel 9.Engine Assemble 10.Handle... -
Page 9: Unpacking And Checking
4. UNPACKING AND CHECKING Carefully remove the product from the packaging and examine it for any sign of damage that may have happened during shipping. Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the seller and do not attempt to use the product. - Page 10 5. ASSEMBLY STEP 1: LOCK & HANDLE ASSEMBLY 1. Fix the handle(#22) on the end of the beam with bolt (#23), spring washer (#9) and washer (#10).
- Page 11 STEP 2: WHEEL & CYLINDER ASSEMBLY 1. Adjust the beam to a horizontal position and fix it with lock system. 2. Assemble the cylinder and wedge protector to the beam by using Hex Bolt (#21), Spring Washer (#9) , Flat Washer (#10) and Nut (#11). 3.
- Page 12 STEP 3: LOG GUIDE & ENGINE ASSEMBLY 1. Assemble the Left and Right Log Guide (#2) by using Nuts (#8), Spring Washer (#9) and Flat Washer (#10). 2. Assemble the Log guard (#4) by using Nuts (#5), Flat Washer (#6) and Bolt(#7).
- Page 13 STEP 4: ASSEMBLY HYDRAULIC HOSES 1. Attached the hydraulic hosed (#63). Using one high pressure hose (#63) which will assemble to the control valve and engine gear pump. Fix one end to the control valve input joint (already fixed at factory) and another end to the Engine Gear Pump.
- Page 14 6. OPERATION INSTRUCTIONS Proper Operation of the Log splitter 1.) Load a log onto the beam and against the wedge. 2.) Serious accidents can happen when other people are allowed inside the work zone.Keep everyone else out of the work zone while operating control valve. 3.) Push control valve handle FORWARD by two hands to split log.
-
Page 15: Maintenance And Storage
7. MAINTENANCE AND STORAGE Before performing maintenance, the log splitter must be placed in maintenance mode. 1. Turn off engine. 2. Move the control valve handle forward and backward to relieve hydraulic pressure. After performing maintenance, make sure all guards, shields, and safety features are put back in place.Failure to follow this warning can result in serious injury. -
Page 16: Troubleshooting
8. TROUBLESHOOTING Problem Cylinder rod will not move SOLUTION: A, D, E, H, J Slow cylinder shaft speed when extending or SOLUTION: A, B,C, H, I, K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C, F,I, K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition... - Page 17 9. DISPOSAL At the end of the machine's working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: Do not dispose of this tool with domestic waste.
-
Page 18: Expanded View
10. EXPANDED VIEW... - Page 20 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
