Oakmont Pellet Grill and Smoker
OPERATING IN STRUC TIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE GRILL OWNER
FOR FUTURE REFERENCE .
OWNER'S MANUAL
Model SMK2036AS
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT
LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
WARNING
AND USE OF THIS PELLET FUEL-BURNING APPLIANCE.
SAVE THESE INSTRUCTIONS.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cuisinart SMK2036AS
Summary of Contents for Cuisinart SMK2036AS
- Page 1 Oakmont Pellet Grill and Smoker OWNER’S MANUAL OPERATING IN STRUC TIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Model SMK2036AS WARNING NOTICE TO INSTALLER: PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET FUEL-BURNING APPLIANCE. LEAVE THESE INSTRUCTIONS FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
- Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL & SMOKER. WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL &...
-
Page 3: Table Of Contents
TABLE OF CONTENTS: General Warnings ..........3-4 Operating the Grill . -
Page 4: General Warnings
GENERAL WARNINGS: WARNING When using electric appliances, basic safety precautions should always be followed including the following: • Operate only per manufacturers instructions. • Keep all combustible materials at least 60 inches (152.4 cm) away from the grill at all times. Do not use this grill under any overhang or near any combustible structures. - Page 5 • This product is not designed for tabletop use. Do not set this product on a tabletop. • Outdoor extension cords must be used with outdoor use products and are marked with suffix “W” and with the statement “Suitable for Use with Outdoor Appliances.” •...
-
Page 6: Operating The Grill
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR PELLET GRILL & SMOKER. FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE. SAVE THIS MANUAL FOR FUTURE REFERENCE. OPERATING THE GRILL: WARNING Read and follow all warnings and instructions contained in the preceding sections of this manual. - Page 7 Step 2 Plug power cord into a GFCI (grounded) outdoor electrical Control Panel outlet. Use only a (GFCI) protected circuit with this pellet grill; Never remove the grounding plug or use with an adapter of 2 prongs; and Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-A marking.
- Page 8 Follow these steps If the grill does not ignite or if the fi re in the fi repot goes out while cooking: Step 1 Turn the grill off and unplug. Open the hood and remove all food, cooking grates, heat plate and baffle.
- Page 9 • Bluetooth and WiFi App: Your grill is Bluetooth and WiFi capable. 2. The Cuisinart Easy Connect BBQ app allows you to monitor and control the internal grill temperature as well as monitor probe temperatures. 3. The Bluetooth range is around 120 ft. and can vary with obstructions such as interior and exterior walls.
- Page 10 COOK MODE: • The temperature dial can be changed at any time to increase or decrease the cooking temperature of the grill. • The 200°F to 300°F temperature settings are for slow cooking/smoking. • The 325°F to 450°F temperature settings are for grilling. •...
-
Page 11: Proper Care And Maintenance
PROPER CARE & MAINTENANCE: • Remove wood pellets from hopper if grill will not be used for a long period of time. Wood pellets can become soggy due to moisture/humidity and can cause the auger to bind up or not push pellets to burn chamber. -
Page 12: Transporting And Storage
TRANSPORTING AND STORAGE: WARNING • Never move a grill when it is hot or when objects are on the cooking surfaces. • Never store fl ammable liquids or spray canisters under or near the grill. • DO NOT extinguish grease fi res using water. BEFORE STORING YOUR GRILL: •... -
Page 13: Trouble Shooting
Temperature 1. Temperature fl uctuations are normal for pellet grills. Any signifi cant fl uctuations can be caused by wind, air temperature, improper use, or lack of grill maintenance. fl uctuations For more information, please visit us at www.cuisinart.com... -
Page 14: Wiring Diagram
WIRING DIAGRAM: THERMOCOUPLE POWER CORD BLACK WHITE DC 12V3A Power Supply and Control POWER SUPPLY Wire FUSE HOLER 5 Amp Fuse PURPLE WHITE FIRE POT WHITE IGNITOR AUGER MOTOR ORANGE WHITE BLOWER FAN BLUE WHITE GRAY GREEN YELLOW BLACK DISPLAY PANEL POWER SUPPLY Power adapter mounted inside AUGER box... - Page 15 IC: 25523-SMK2036AS FCC ID: 2AURUSMK2036AS The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause any undesired operation.
- Page 16 For replacement parts, call our customer service department at 1-866-212-3150 from 9:00am to 5:00pm Eastern time, Monday through Friday for assistance. ©2021 The Boltz Group LLC Owner’s Manual for Model OM2036AS Carrollton, Texas 75006 U.S.A. 0921 SMK2036AS...
Need help?
Do you have a question about the SMK2036AS and is the answer not in the manual?
Questions and answers

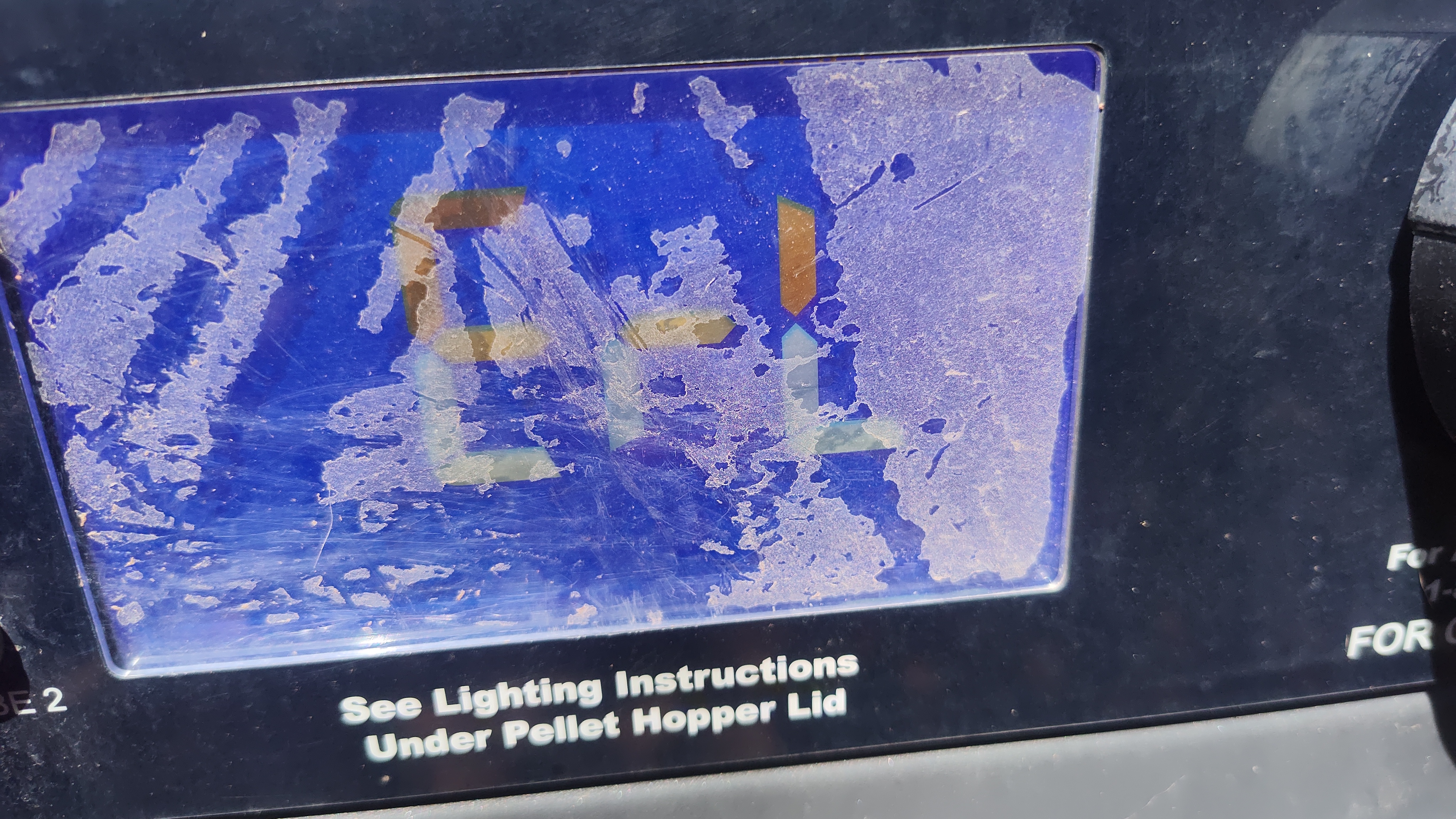

My temperature is stuck at 14 degrees on my digital screen
The temperature may be stuck at 14 degrees on your Cuisinart SMK2036AS digital screen due to one of the following causes:
1. Grill is not plugged in: Ensure the grill is connected to a working power source, and all wire connections are properly connected.
2. Blown fuse: Check if the fuse has blown and replace it with a 5 Amp fuse if necessary.
3. Tripped GFCI outlet: Reset the GFCI outlet if it has tripped.
Verify these potential issues to troubleshoot the problem.
