This convenient guide will lead you through the start-up
process and will also offer some valuable tips.
What's in the Box
Check to see that all of the following items are in the box:
❏ LifeBook T Series Tablet PC
❏ Microsoft associated materials
❏ AC adapter and power cable
❏ Screen protectors
❏ Lithium ion battery (pre-installed)
❏ Trusted Platform Module Application Disc
❏ Pen kit
❏ Pen tether
❏ Drivers and Application Disc
❏ Recovery and Utility Disc
❏ Warranty Terms & Conditions Booklet
❏ Microfi ber Cleaning Cloth
❏ Guide for saving your Factory Image

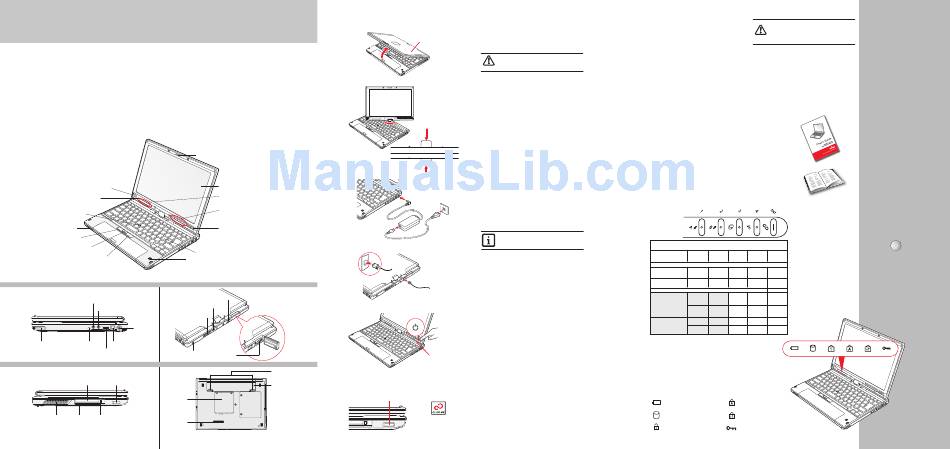

Controls, Connectors,
and Access Points
Display Panel Latch
Fingerprint Sensor
Built-in Microphones
(two places: left and right
Quick Point Cursor Control
Memory Stick/SD Card Slot
Left Button
Scroll Button
Keyboard
Right Button
Speaker
RIGHT PANEL
BACK PANEL
Gigabit LAN (RJ-45) Jack
Headphone Jack
USB 2.0 Port
Microphone Jack
Air Vents
DC Power
Jack
Pen/Pen Holder
Pen Tether Point
IEEE 1394 Jack
USB 2.0 Port
Anti-Theft Lock Slot
LEFT PANEL
BOTTOM PANEL
Wireless LAN/Bluetooth
On/Off Switch
PC Card Slot
Memory
Upgrade
Compartment
Air Vents Smart Card Slot
PC Card Eject Button
Port
Replicator
Connector
Initial Start Up
Bottom Latch
Display Panel
Status Indicator Panel
LifeBook Security/
Tablet PC Buttons
Power/Suspend/
Resume Switch
External
Video Port
Battery Latches
Lithium ion
Left Side
Battery Bay
Wireless LAN/Bluetooth
On/Off Switch
1. Open the Display Panel
Ensure that your LifeBook is on a hard level surface and that the
air vents are not blocked.
Lid
Lift the display, being careful not to touch the screen.
Adjust the display until it is at a comfortable viewing angle.
To avoid possible damage to your computer, be sure
the display panel is perpendicular to the keyboard
before rotating it.
Caution
2. Convert from Notebook to Tablet
Open your notebook and lift the display so it is perpendicular
to the keyboard.
Rotate the display 180 degrees (either direction).
Carefully fold the display down onto the keyboard.
Push the latch down toward the display.
Reverse this procedure to return to the notebook confi guration.
Be sure to rotate the display in the opposite direction.
3. Connect AC Power
Plug the power cord into the AC adapter.
Top Latch
Display Side
Plug the AC adapter into your notebook.
Connect the power cord to an electrical outlet.
4. Connect to Internet or Network
Move the wireless switch to on.
Connect the phone cord (not supplied) to the modem jack (available on
some models) or an Ethernet cable (not supplied) to the LAN jack
on your notebook and to a wall jack or to Ethernet router.
5. Turn on Power
Slide the Suspend/Resume/Power switch to the right (under display panel)
to turn on the notebook.
The notebook is now on and the battery is being charged.
• The notebook will begin a power-on self test. Once successfully completed,
the operating system will begin the initialization process.
The Lithium ion battery is not charged upon purchase.
Initially you will need to connect either the AC adapter
or the Auto/Airline adapter to use your notebook.
6. Register
LAN Jack
Modem Jack
For Genuine Microsoft
®
Windows
®
XP Tablet PC:
After the operating system has initialized, accept the Microsoft
Windows
®
Licensing Agreement and the Fujitsu End User License
Agreement to proceed. Then enter the information as prompted
to personalize your notebook and confi gure your modem to dial.
For Genuine Windows Vista
®
:
Accept the Microsoft
®
Windows
®
Licensing Agreement and the Fujitsu
End User License Agreement to proceed. Select your User ID and
Password during the "Welcome Screen." Keep a record of your
User ID and password stored in a secure place. THE SCREEN WILL
GO DARK FOR APPROXIMATELY TWO MINUTES. Do not attempt to
turn power on or off during this stage.
• Register your LifeBook with Fujitsu Service and Support via our
website (us.fujitsu.com/computers). This helps us to better
serve you.
7. Activate Additional Utilities & Drivers
Power/Suspend/
Resume Switch
Check to be sure the WLAN switch is on.
For Genuine Microsoft
®
Windows
®
XP Tablet PC:
Please refer to your XP Drivers Installation fl yer the fi rst time that you
power-on your system.
For Genuine Windows Vista
®
:
In addition to an icon on the desktop, a dialog box will automatically open
(For
that prompts you to run Click Me!. If you choose not run ClickMe! at this
Additional
Utilities)
time, the ClickMe! icon will appear on your desktop. When you click the
Click Me! icon, your system will automatically build the icon tray in the
bottom right of the screen. These icons provide links to utilities that
you will frequently access.
"Click Me!"
8. Saving your Factory Image
After you install the ClickMe! utility when you fi rst
start up your system, you will be prompted to make
Caution
a copy of your Factory Image to DVD discs.
You will need two blank discs (DVD-R, DVD+R,
or DVD+RW discs are recommended) in order to create the copy.
After creating the copy, be sure to clearly label the discs and keep
them in a safe place.
For more information on saving your factory image or restoring your
LifeBook to its original state, please see the Saving and Recovering
your Factory and System Images Guide.
9. Install Additional Software
Load the Drivers and Applications disc to check for the latest versions of
pre-installed drivers and applications. Install additional applications not
pre-installed on your system.
10. User's Guide
To take advantage of all the features of your new Fujitsu LifeBook notebook,
it is highly recommended that you read your electronic User's Guide. It
contains important detailed information about your new computer. You can
access your User's Guide by selecting its icon from the screen desktop.
The Fujitsu Installer should automatically launch. If it doesn't, you will need
to fi nd the Setup.exe fi le on the Recovery disc's root folder.
If you are using Genuine Windows Vista®, Click [Allow] in the User Account
Control (UAC) box.
Click [Continue]
Select "I Agree" and click [Continue] in the License Agreement box.
Select "User's Guide" from the "Utilities/Applications" category.
Click [Install Selected Subsystems]
The User's Guide will be copied to your hard drive in the C:\Fujitsu\Manual
directory. Shortcuts to the User's Guide will be placed on your desktop
and in the Start menu.
Security Panel Buttons (System state: pre-boot)
Security
Security
Security
Security
Button 1
Button 2
Button 3
Button 4
Tablet PC Buttons (System state: pre-logon)
Primary
[Tab]
[Enter]
Screen
Secondary
®
Function
Rotation
Function
Selection
Secondary
Function
[Shift]+[Tab]
[Escape]
None
None
Tablet PC Buttons (System state: post logon)
Press
Page Down
Page Up
Secondary
Function
Primary
Selection
Function
Press & Hold
Continuous
Continuous
Fujitsu
Page Down
Page Up
Menu
Utility
Press
Calculator
MS
None
Secondary
Journal
Function
Press & Hold
Calculator
MS
None
Journal
Shaded area = User Programmable
Common Indicators
Status Indicators
Top of keyboard
Battery Level Indicator
Caps Lock Indicator
Drive Access Indicator
Scroll Lock Indicator
Number Lock Indicator
Security Indicator
1
LifeBook Security/
IT IS EXTREMELY IMPORTANT THAT YOU COPY
YOUR FACTORY IMAGE TO REMOVABLE MEDIA
Tablet PC Buttons
(E.G., DVD DISCS). FAILURE TO DO SO COULD
RESULT IN THE INABILITY TO RESTORE YOUR
IMAGE AT A FUTURE DATE.
The fi ve security/Tablet PC buttons
are located on the bottom right-
hand side of the display when
it is confi gured to be used
as a notebook.
• Security functions: All five buttons
are used when implementing
security functions. Four of the
buttons are used to enter the
password, and the fi fth is used
as an Enter button.
• Tablet PC functions: The Tablet
PC buttons have a number of
functions, depending upon the
state of the system: pre-logon
state or post-logon state.
• The system is pre-logon when
the Windows logon screen is
displayed; the system is post-logon
when the Windows desktop is
displayed. All five of the buttons
have primary functions. Several of
the buttons also have secondary
functions when used as application
buttons and are activated by pressing
the Function (Fn) button while
pressing the application button.
In post logon, the secondary func-
tions of the Application A and B
buttons can be changed to launch
any application. See User's Guide
for more information about using
the Security/Application Buttons.
Drivers
Security
Look for the latest drivers on the
Enter
Button
Drivers and Applications Restore
disc. Right-click the FDU icon
Ctl+Alt+Del
(located in the Start Menu, System
Button
Tray, or on the Desktop) and
select "update", or download them
None
at us.fujitsu.com/computers.
Ctl+Alt+Del
Button
None
None
None
