Summary of Contents for Baumr-AG RC-16

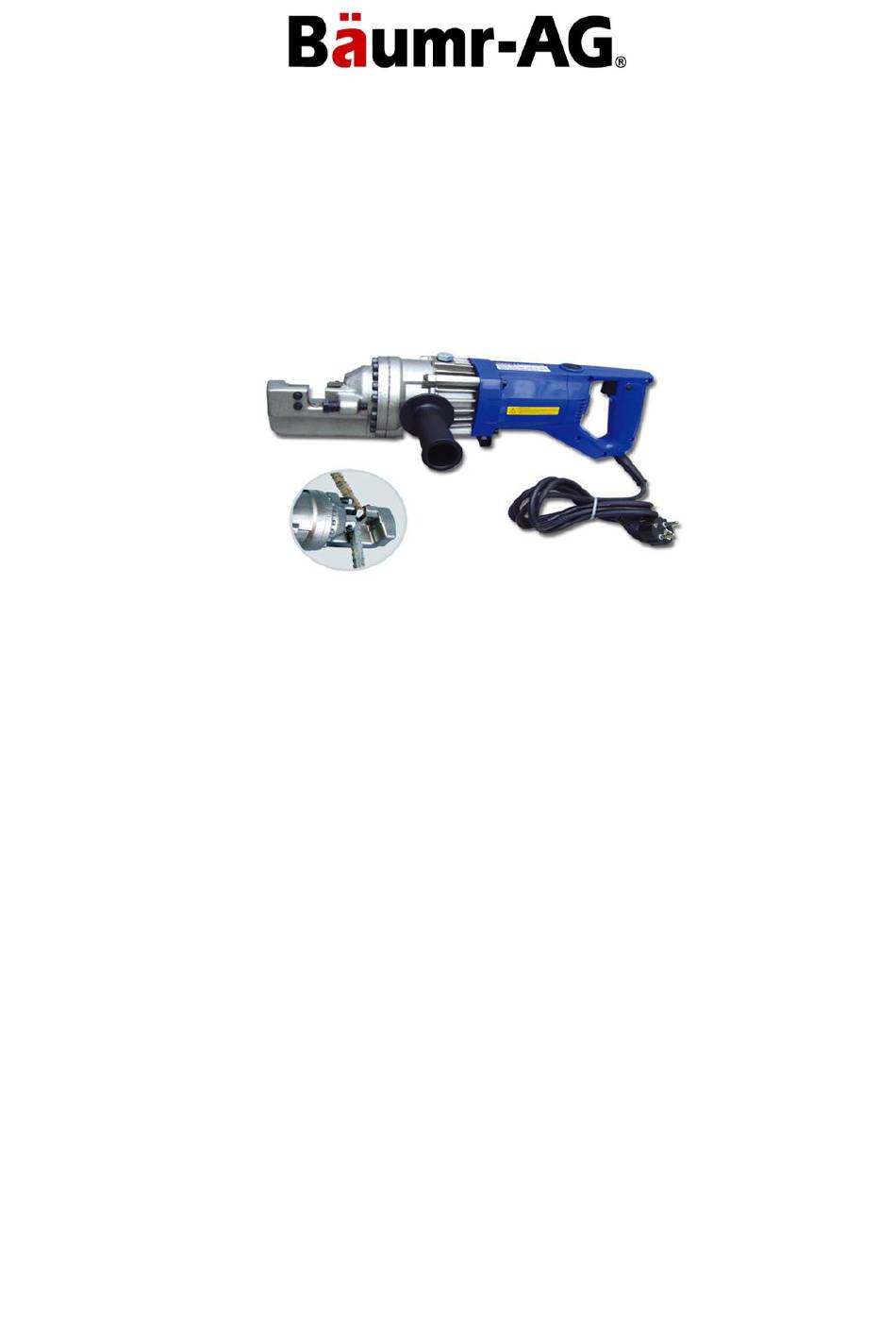

- Page 1 Hydraulic Rebar Cutter User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
- Page 2 Hydraulic Rebar Cutter Table of Contents Safety Instructions ........................... 1 Operation ................................ 1 Pre-use checks ............................1 Warm-up............................... 2 Stopper adjustment ............................2 Cutting ................................2 Maintenance ..............................3 Cutter blocks ..............................3 Cleaning ............................... 3 Oil-level check .............................. 3 Oil change ..............................
- Page 3 Hydraulic Rebar Cutter Safety Instructions Use RC-16 cutters on concrete re-forcing bars only. There is always a chance that the cut end may shoot out, especially if less than 30cm in length. Exceeding designated material specifications greatly increases this risk and will also damage the tool. Do not attempt to cut rebars.
- Page 4 Hydraulic Rebar Cutter Care: If voltage is too high, the motor will burn out. If the voltage is too low, insufficient power will be generated. Never use DC current. 4. Check that power supply is properly earthed. Caution: Failure to earth power supply may result in electric shock to operator. 5.
- Page 5 Hydraulic Rebar Cutter Maintenance Cutter blocks Before using, always check that the two bolts on each cutter block are properly tightened. Using a loose block will result in damage to block and housing. Also check condition of cutter blocks. If either cutting edge is dull or chipped, remove retaining bolts and rotate both blocks so that two new edges come into use.
- Page 6 1. Disconnect unit 2. Unscrew both brush caps and pull out carbon brushes. 3. Replace brushes if less than 6 cm in length. Technical Specifications MAIN PARAMETERS Model RC-16 Voltage ± 5% 110V/230V AC only Wattage 900 W/850W Net weight...
- Page 7 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
