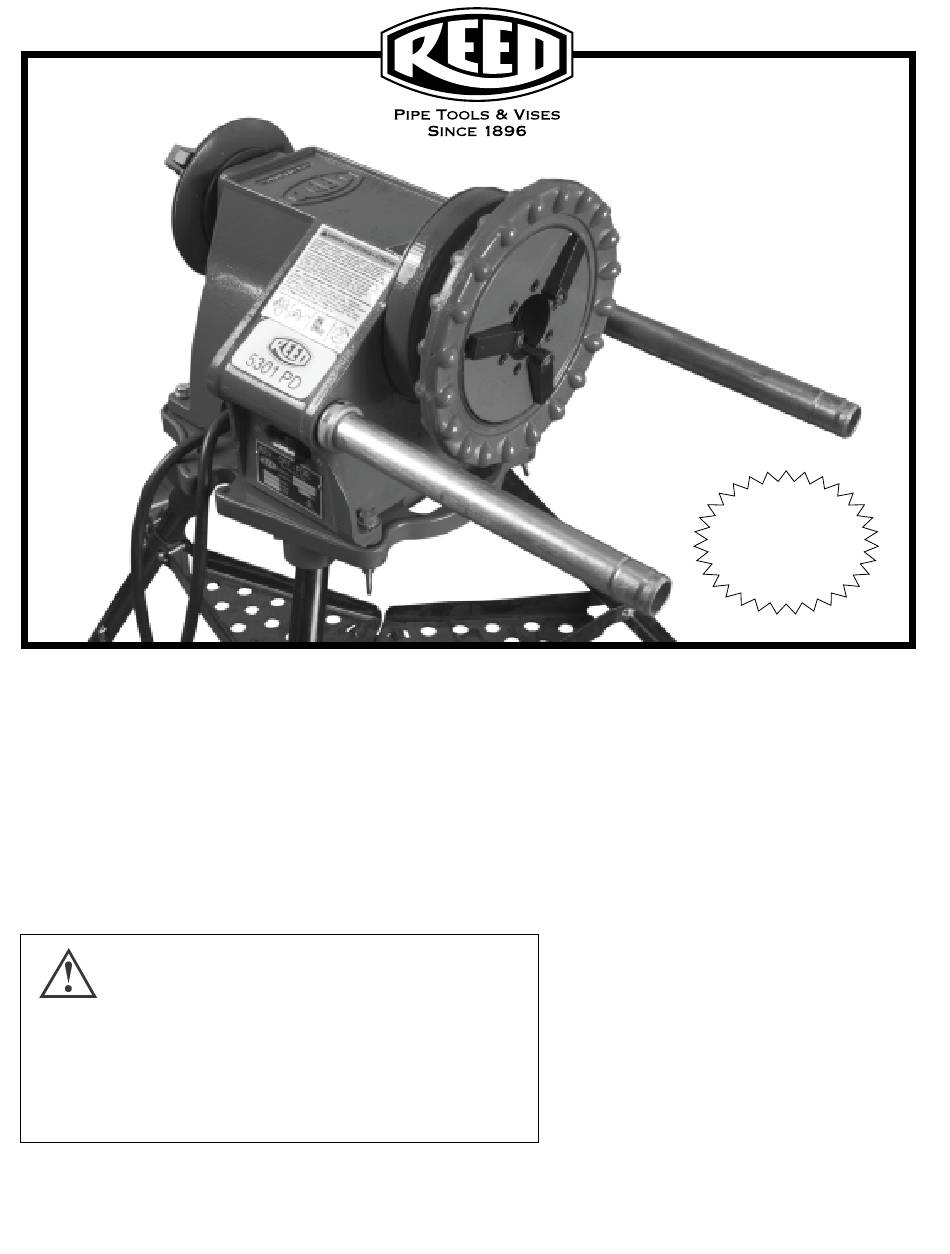

5301PD Power Drive
OPERATOR'S MANUAL
The electric-motor-driven REED 5301PD Power Drive centers and
chucks pipe and conduit and rotates it while cutting, threading, and
reaming operations are performed. FORWARD (clockwise) rotation
can be selected with the REV/OFF/FOR switch.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED
INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE,
AND/OR SERIOUS PERSONAL INJURY.
1425 West 8th St.
P.O. Box 1321, Erie, Pa 16512
910-55301
1117-55301
1
P
D
P
o
w
r e
D
r
v i
e
REED MANUFACTURING COMPANY
USA
Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
Approved to
the latest United
States and CSA
Canadian
standards
• Includes Footswitch.
• Footswitch cord is 5' 6" (1676 mm) long.
SAVE THESE
INSTRUCTIONS!
O
p
r e
t a
r o
s '
M
a
n
u
l a
1
0416-55301
1
1117-55301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5301PDCOMP and is the answer not in the manual?

Questions and answers

Related Manuals for REED 5301PDCOMP

Summary of Contents for REED 5301PDCOMP

  • Page 1 5301PD Power Drive OPERATOR’S MANUAL • Includes Footswitch. The electric-motor-driven REED 5301PD Power Drive centers and chucks pipe and conduit and rotates it while cutting, threading, and • Footswitch cord is 5’ 6” (1676 mm) long. reaming operations are performed. FORWARD (clockwise) rotation can be selected with the REV/OFF/FOR switch.

  • Page 2: Table Of Contents

    s ’ TABLE OF CONTENTS General Safety Information..................3 Work Area Safety .....................3 Electrical Safety ......................3 Personal Safety .......................3 Tool Use and Care ....................4 Service ........................4 Specific Safety Information ...................4 Foot Switch Safety ....................4 Threading Machine Safety ..................5 Machine Maintenance ....................5 Description, Specifications and Accessories ..............5 Description ....................5 Specifications ....................5...

  • Page 3: General Safety Information

    s ’ GENERAL SAFETY INFORMATION 7. Use only three-wire extension cords which have three- prong grounding plugs and three-pole receptacles which accept the tool’s plug. Use of other extension cords will WARNING: READ AND UNDERSTAND ALL INSTRUC- not ground the tool and increase the risk of electrical TIONS.

  • Page 4: Tool Use And Care

    s ’ SPECIFIC SAFETY INFORMATION TOOL USE AND CARE 1. Use clamp or other practical way to secure and sup- The Operator’s Manual contains specific safety information port the workpiece to a stable platform. Holding the and instructions for your protection against serious injuries work by hand or against your body is unstable and may including: lead to loss of control.

  • Page 5: Threading Machine Safety

    Follow in- DESCRIPTION structions in Operator’s Manual on machine uses. Do not The REED 5301PD Power Drive is an electric-motor-driven use power drives for other jobs including hole drilling, winch power drive which centers and chucks pipe and conduit and turning, and making/breaking fittings.

  • Page 6: Operation Using Hand Tools

    OPERATION USING HAND TOOLS port bar (Figure 4) located on switch side. 2. Place 06150 Oiler (Figure 6) under threader and apply REED Thread Cutting Oil on pipe end. WARNING: OPERATOR SHOULD BE THOROUGHLY FAMILIAR WITH PRECEDING SAFETY PRECAUTIONS 3. Turn switch to FOR (forward) position.

  • Page 7: Operation Using Power Drive Mounted Tools

    s ’ Cutting Pipe with 05309 Cutter 1. Swing reamer and threader back to out-of-way position. Hand Threader 2. Move pipe cutter down onto pipe and move carriage with carriage lever to line up cutter wheel with mark on pipe (Figure 8).

  • Page 8: Reaming Pipe With 05308 Reamer

    2. Swing cutter and reamer to out-of-way position (Figure 9). 1/8" 3. Lower die head into threading position. 1/4" and 3/8" 4. Apply Reed Threadguard Cutting Oil to pipe end. 1/2" and 3/4" 5. Turn switch to FOR position and step 1"...

  • Page 9: Maintenance Instructions

    s ’ MAINTENANCE INSTRUCTIONS WARNING: ALWAYS UNPLUG POWER CORD BEFORE SERVICING POWER DRIVE. JAW INSERT REPLACEMENT IMPORTANT: WHEN TEETH ON JAW INSERTS BECOME Head WORN AND FAIL TO HOLD PIPE OR ROD DURING OP- Cutter ERATION, REPLACE ENTIRE SET OF JAW INSERTS. CLEAN TEETH OF JAW INSERTS DAILY WITH WIRE BRUSH.

  • Page 10: Parts Diagrams

    95403 89150 BOLT, SHCS 35411 46745 5/Pk 9, 10, 11, 14, 39, 40, 41, 45, 46, 95569 RIDGID is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company ® See also RP #86 1117-55301 0416-55301...
  • Page 11 48816 45370 57 RPM 95550 — NAME PLATE 95456 BRUSH/HOLDER/CAP ASSEMBLY 95585 DRIVE SCREW 85920 5/Pk FIELD & ARMATURE 95587 30133 RIDGID is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company ® 1117-55301 0416-55301...
  • Page 12 s ’ 5301PDPC #05309 5301PD Cutter Adapter Parts List Ref. No. Description Item Code Qty. Used Body 95488 Screw Assembly 93681 Slide 95489 Roller 95490 Cutter Wheel 03612 95491 Cutter Wheel Pin 93310 Yoke 95468 Trust Washer 93679 Knurled Pin 95560 1/ 2 x 1-1/4 Pin 95561...
  • Page 13 s ’ 5301PDR #05308 5301PD Reamer Adapter Parts List Ref. No. Description Item Code Qty. Used 95487 Reamer 95492 95493 Knob 95494 95495 Hinge Pin 95496 Latch 95497 1/4 x 3/4” Pin 30004 Spring 95451 1117-55301 0416-55301...
  • Page 14 s ’ CARRIAGE #05307 5301PD Carriage Adapter Parts List Ref. No. Description Item Code Qty. Used Carriage 95465 Collar 95410 Shoulder Bolt 35424 Thumb Screw 45425 Eye Bolt 45550 Lever Arm 95551 Grip 92754 Stop Bolt Assembly 95881 Ball Retainer Kit 95883 Leverarm Kit 95885...
  • Page 15 s ’ 5301PDTP #05305 5301PD Tripod 7 16 Parts List Ref. No. Description Item Code Qty. Used 5301PD Base 95398 #05306 Tray Assembly 99004 Tray Support Clamp 40194 5301PD Transporter Leg Bolt 30244 30032 Lock Washer 30033 Tray Pin 99008 X Washer 99010 Front Leg...

  • Page 16: Wiring Diagram And Wiring Schematics

    REED IS NOT are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY LIABLE FOR ANY DAMAGE OF ANY SORT, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES.
