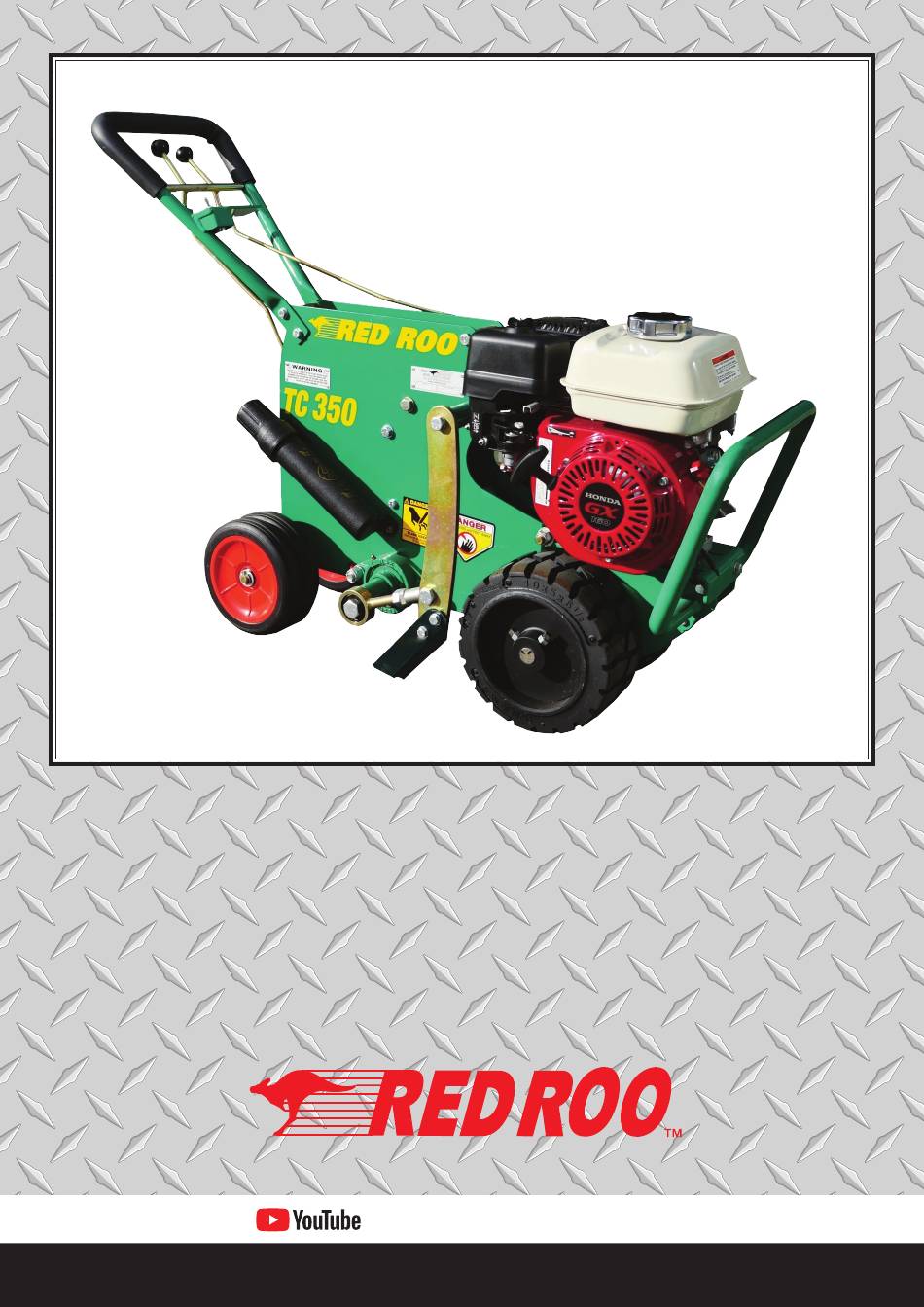

- Page 1 GT622 TC350 TURF CUTTER Operation, Safety & Maintenance Instructions Commercial Environmental Equipment - Hire A TurfcuTTer Online Demonstration Available at: www.redroo.com/products/turfcutter...
- Page 2 Turf Cutter performs using precision engineered componentry and the force of gravity. The Red Roo Turf Cutter is designed to cut turf with ease and precision. Its heavy duty construction and premium engine provide the durability required for this application.
-
Page 3: Table Of Contents
TC350 PARTS LIST TC350 SERVICING HISTORY WARRANTY POLICY RED ROO SALES & SERVICE COMPANY PTY. LTD 41-43 Keysborough Avenue, Keysborough, Victoria, Australia 3173 Tel.: +61 (03) 9769 0455 Fax: +61(03) 9769 0366 Outside Melbourne Metro: Tel.: 1300 133 767 Fax: 1300 133 757... -
Page 4: About This Manual
The information contained in this manual has been prepared to assist you in the safe operation, the routine maintenance and general care of your Red Roo product. By following these guidelines, you may look forward to years of reliable service from your Red Roo. Information is categorised and denoted by the following symbols... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS DO NOT allow any person to operate the turf cutter without first reading and understanding the safety and operating instructions. KNOW THE CONTROLS & HOW TO STOP THE TURFCUTTER QUICKLY IN AN EMERGENCY NEVER allow CHILDREN or UNTRAINED ADULTS to operate the turf cutter PPE (PERSONAL PROTECTION EQUIPMENT) IS MANDATORY BEFORE OPERATING THIS MACHINE ALWAYS wear protective clothing when operating the turf cutter. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Remove the turf cutter from its carrying vehicle or trailer. ALWAYS USE CAUTION Familiarize yourself with this turf cutter and its controls. Learn where all engine controls are and be prepared to stop this machine quickly in a possible emergency. PPE (PERSONAL PROTECTION EQUIPMENT) IS MANDATORY BEFORE OPERATING THIS MACHINE. -
Page 7: Tc350 Diagram
Turf Cutter Blade Engage / Disengage Clutch Lever On / Off Switch Lifting Point Engine Exhaust Engine Wheel Drive Engagement Clutch Lever On / Off Depth Switch Control Handle Bumper Bar Turf Cutter Blade TURF CUTTING ZONE safety You alone know the operational demands special conditions affecting... -
Page 8: Caring For Your Powdercoat Finish
CARING FOR YOUR POWDERCOATED FINISH The effects of ultra violet light, pollution, dirt, grime, and salt deposits accumulate on the powder coated surface of your machine over time. To extend the effective life of the powder coated surface, a regular maintenance program should be implemented for the removal of any debris or residues. -
Page 9: Tc350 Illustration
0.15mm .XXX 0.05mm Title: Material: ANGULAR 0.25mm As Nominated TC350 - Main - Assembly [ Guard Removed ] www.redroo.com FABRICATION TOLERANCES 15mm up to 250mm 0.2mm Mobile +61 408 030 780 250mm up to 500mm 0.3mm... -
Page 10: Tc350 Parts List
PARTS LIST FOR TC350 TURF CUTTER Item No. Part No. Description Quantity 0503-0007 Honda Ending 0605-0043 Main Body 0801-0027 Depth Control Handle 0202-0006 Belt Adjust - Engine Mount Bar 0704-0058 Bumper Bar Cutter Engagement Swing Arm Wheel Engagement Swing Arm... -
Page 11: Tc350 Parts List
PARTS LIST FOR TC350 TURF CUTTER Item No. Part No. Description Quantity 1904-0025 Swing Shaft - Side Arms 1608-0041 Small Wheel Drive Pulley 1608-0040 Counter Shaft Pulley 1608-0042 Engine Pulley 1904-0031 Shaft Reduction Idler Pulley 1608-0037 Main Drive Pulley 1608-0038... -
Page 12: Tc350 Parts List
PARTS LIST FOR TC350 TURF CUTTER Item No. Part No. Description Quantity 1401-0053 1401-0023 0209-0422 Bolt 0209-0025 Bolt 2301-0007 Washer 1401-0043 0209-0142 Bolt 1401-0011 1604-0026 0209-0115 Bolt 2301-0018 Washer 1901-0804 Screw 0209-0127 Bolt 0705-0012 Belt Guide - Lower Driven Pulley... -
Page 13: Tc350 Servicing History
TC350 TURF CUTTER - SERVICE HISTORY DATE PART No. COMMENTS PLEASE USE ONLY GENUINE RED ROO SPARE PARTS... -
Page 14: Warranty Policy
Service Company, P/L, herein referred to as “MANUFACTURER”, will, at its option, repair or replace for the original purchasers of new Red Roo equipment, free of charge, any part, or parts of the unit (excluding Power Unit, warranty coverage provided by respective engine manufacturer), found upon inspection and testing by a Factory Authorised Agent, or by the Factory at Keysborough, Victoria, to be defective in material or workmanship or both under normal operating conditions;...
