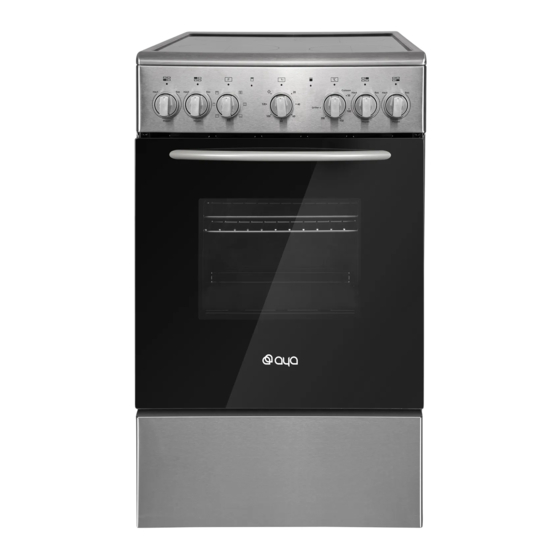

- Page 1 INSTRUCTIONS FOR USE ACV5063IX ELECTRIC COOKER...
- Page 2 CONTENT IMPORTANT SAFTY WARNING INSTALLATION -10- SAFTY INFORMATION PRODUCT DESCRIPTION OPERATION INSTRUCTIONS CLEAN AND MAINTENANCE -24- TROUBLE SHOOTING TECHNICAL CHARACTERISTICS -28-...
- Page 3 THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! PLEASE READ CAREFULLY THIS MANUEL BEFORE YOUR FIRST USE AND SAVE IT FOR FUTURE REFERENCE Important Safety Warning THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. PLEASE READ THEM CAREFULLY BEFORE INSTALLING USING THE APPLIANCE.To maintain the ...
- Page 4 appliance. Never leave the packing components (within the reach of children since they are a source of potential danger. 4.The appliance must be installed only by a qualified person in compliance with the instructions provided. The manufacturer declines all responsibility for improper installation which may harm persons and animals and damage property.
- Page 5 hob, as indicated on the rating label. If you have any doubts, call in a qualified technician. 8.When the cooker is first used an odour may be emitted, this will cease after a period of use. When first using the cooker, ensures that the room is well ventilated (e.g.
- Page 6 12.A number of fundamental rules must be followed when using electrical appliances. The followings are of particular importance: Do not touch the appliance when your hands or feet are wet. Do not use the appliance barefooted. Never allow the Mains Cable to be stretched, ...
- Page 7 17.Parts of this appliance, cooking surfaces, retain heat for considerable periods after switching off. Care should, therefore, be taken when touching these areas before they have completely cooled down. 18.Never use flammable liquids such as alcohol or gasoline, etc. near the appliance when it is in use. 19.When using small electric appliances near the hob, keep the supply cord away from the hot parts.
- Page 8 23.Do not use harsh abrasive cleaner or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. 24.Any spillage should be removed from the lid before opening and the hob surface should be allowed to cool before closing the lid.
- Page 9 30.WARNING: The appliance and its accessible parts become hot during use. 31.Care should be taken to avoid touching heating elements. 32.Children less than 8 years of age shall be kept away unless continuously supervised. 33.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 10 39.Any spillage should be removed from the lid before opening. The hob surface should be allowed to cool before closing the lid. 40.WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. 41.Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in...
- Page 11 Installation The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulations. Important: remember to disconnect the appliance from electricity by turn off the mains before regulating appliance...
- Page 12 Installation The cooker is desig ned to fit between kitchen cabinets. The space either side need only be sufficient to allow withdrawal of the cooker for servicing. It can be used with cabinet one side or both as well as in a corner setting. It can also be used free-standing.
- Page 13 Cooker Hood Figure Leveling Your Appliance Take out of the 4 cooker feet from oven cavity, which be packed together with backing rack, and then screw them into the 4 plinth in lower part of cooker. These feet level of f the oven when necessaryy.
- Page 14 Install Anti-tilt Bracket Warning: In order to prevent tipping of the cooker, the anti- tilt bracket must be installed with cooker. To install Anti-tilt bracket, use screwdriver to mount the anti-tilt bracket (1) with screws (2) to the ground, as shows in Figure 3. Back Wall 50mm Cabinet side...
- Page 15 Electrical connection WARNING – THIS APPLIANCE MUST BE EARTHED. Power supply voltage and frequency: 220-240V~/380-415V 3N~,50-60Hz The electric cooker without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating label.
- Page 16 Remark: The appliance is supplied by a set of terminals for permanently fixed wiring or fitted with supply cord.The 3 alternative connection ways as below: ， 220-240V~: power cord requirements: wire diameter 3G 4.0mm² at least; cord type: H05RR-F, H05RN-F, H07RN-F. The conductive sheet connection method as below: 2, 380V-415V 2N~: power cord requirements: wire diameter 4G 4.0mm²...
- Page 17 3, 380-415V 3N~: power cord requirements: wire diameter 5G 2.5mm² at least; cord type: H05RR-F, H05RN-F, H07RN-F. The conductive sheet connection method as below: voltage wiring cable type L,L1,L2,L3=Phase, N=Neutral, PE,E=Earth The power cable must be positioned so that no Important: point reaches a temperature above 50 °...
- Page 18 Sa a fety Inform m ation When use propperly your appliance is completely safe but as with any electrical product there are certain precautions that must be observed. PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE. Always _ Turn controls OFF when you have finished cooking and when not in use.
- Page 19 _ Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during and after its use. _ Do not allow children or persons who are not familiar with the appliance to use it, without supervision. _ Never allow anyone to sit or stand on any part of the appliance.
- Page 20 SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE In the event of a chip pan fire or any other pan fire. 1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH. 2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the fire.
- Page 21 peratio n Ins tructi cooker coul d be with diff erent functio ns as below, please refer to the functions for the cook er you buy. Sy y mbol Function d d escription n Lamp: Ena bles the use r to observe the progres s of cooking without ope...
- Page 22 The temperature is set individually for each cooking zone, using the respective temperature controls. The controls can be turned clockwise and back again.The desired temperature canbe adjusted continuously. The power control lamp indicates that it goes out when all Multi-stage cooking zones controls are off. Control settings =Location of the cooking zone =Off...
- Page 23 Residual heat indicator After switching off the cooking zone, the residual heat indicator lights up. The lit residual heat indicator warns the user not to touch the hot cooking surface. WARNING: Risk of burning! Do not touch the cooking zones as long as the residual heat indicator is on. NOTe: After having switched off the heating power, you may use the residual heat for different purposes, such as heating up or keeping food warm without having to switch on the heating...
- Page 24 Do Not Do not cook directly on the hob surface without a cooking utensil, as this will result in damage to the surface of the hob. Do not use the hob as a worktop surface as damage may occur to the smooth surface of the hob.
- Page 25 er (only availab le on ce rtain mo dels) the cooker w with hour m echanical tim er, you can use it to se t cooking tim e from 1-120 minu utes. To use the timer, th e buzzer mu st be wound d up by turnin g the knob...
- Page 26 Cleaning the outside of the oven 1. You should regularly wipe over the control pan el, oven door and oven sides using a soft cloth and mild liquid detergent as spilt liquids may damage the enamel. 2. Wash enameled or chrome plated parts of the oven with warm soapy water or with non-abrasive detergents.
- Page 27 Latch Oven Lamp Replacement 1. Switch off and disconnect the power from the ov en. Ensure t hat the inter nal parts are cool before touching internal parts. 2. Remove the lamp cover by turning it counter- clockwise (note, it may be stiff), remove the bulb by turning it counter-clockwise.
- Page 28 rouble e shoot ting stomer servi Befo re contactin g the author ized service center in ca se of proble ms while us ing your co oker, chec k the proble m guide bel ow; there ma y be nothing g wrong with your cooker.
- Page 29 Te e chnic cal Ch aracte eristics Supplier's name Supplier's model identifier ACV5063IX Energy effciency index(EEI cavity) per cavity 82.6 Energy class Energy consumption per cycle in forceed air mode Energy consumption per cycle in 0.64 conventional mode Number of cavity...
