ENGLISH

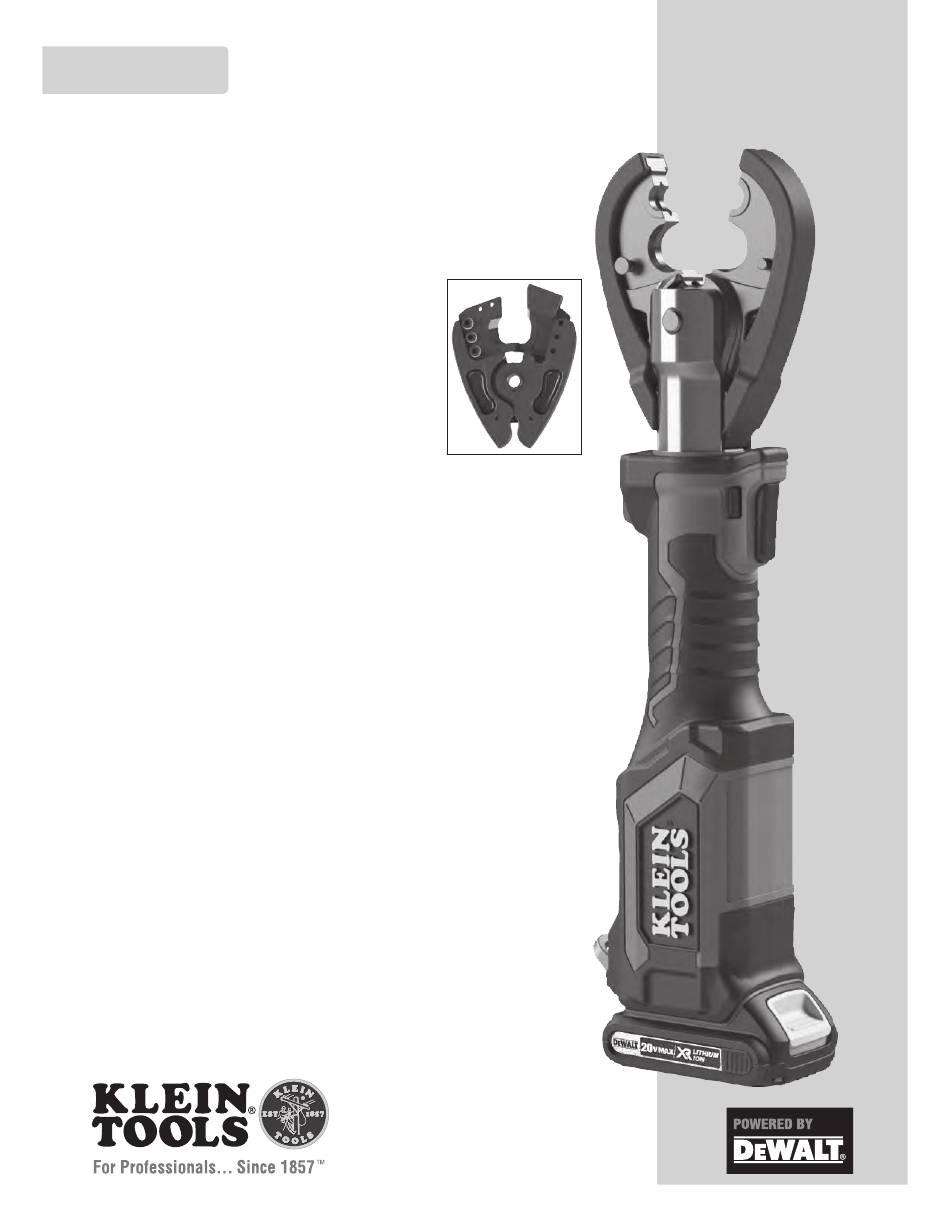

INSTRUCTION MANUAL
Battery Powered
Cable Cutter & Crimper
• 20V Lithium Ion
CUTS*
• Up to 556 MCM ACSR
• Up to 1000 MCM Aluminum
• Up to 750 MCM Copper
• Up to 7/16" EHS Guy Strand
• Up to 3/8" Grade 8 Bolts
CRIMPS*
• Up to 350 MCM Aluminum
• Up to 600 MCM Copper
* See individual heads for specific capacities.
Find Quality Products Online at:
GlobalTestSupply
www.
BAT20-7T
SERIES
.com
sales@GlobalTestSupply.com
Advertisement
Table of Contents
Related Manuals for Klein Tools BAT20-7T14
Summary of Contents for Klein Tools BAT20-7T14
- Page 1 BAT20-7T ENGLISH SERIES INSTRUCTION MANUAL Battery Powered Cable Cutter & Crimper • 20V Lithium Ion CUTS* • Up to 556 MCM ACSR • Up to 1000 MCM Aluminum • Up to 750 MCM Copper • Up to 7/16" EHS Guy Strand •...
-
Page 2: General Specifications
ENGLISH GENERAL SPECIFICATIONS The Klein Tools BAT20-7T series tool line is a professional grade multi-function cutting and crimping tool designed to cut and crimp the widest range of materials. • Power Source: 20V Li-Ion battery • Force: 7 Tons (14,000 lbs; 6,350 Kg) •... - Page 3 AVAILABLE CUTTING & CRIMPING HEADS CUTTING HEADS BAT20-7T10 – Aluminum, Copper, and ACSR BAT20-7T9 – Aluminum and Copper only BAT20-7T11 – Steel (Guy Strand and Bolts) CRIMPING HEADS BAT20-7T6 – BG and D3 (W-style die compatible) BAT20-7T12 – O and D3 (W-style die compatible) BAT20-7T7 –...
-
Page 4: Electrical Safety
ENGLISH DEFINITIONS The definitions below describe the level of severity for each signal word used in this manual: DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. -
Page 5: Additional Specific Safety Rules
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Contact Klein Tools for authorized service centers. 7) Additional Specific Safety Rules ALWAYS use safety glasses. -
Page 6: Important Safety Instructions For All Battery Packs
ENGLISH SAFETY 9) Important Safety Instructions for All Battery Packs • When ordering replacement battery packs, be sure to include the catalog number and voltage. Consult the chart at the end of this manual for compatibility of chargers and battery packs. •... -
Page 7: Important Safety Instructions For All Battery Chargers
SAFETY 10) Important Safety Instructions for All Battery Chargers WARNING: SHOCK HAZARD. Do not allow any liquid to get inside the charger. Electric shock may result. CAUTION: BURN HAZARD. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage. -
Page 8: Battery Charging Instructions
ENGLISH SAFETY 11) Additional Specific Safety Rules ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT: • ANSI Z87.1 eye protection (CAN/CSA Z94.3). • ANSI S12.6 (S3.19) hearing protection. • NIOSH/OSHA/MSHA respiratory protection. • Wear safety goggles or other eye protection. Flying particles can cause permanent eye damage. ALWAYS use safety glasses. -
Page 9: Charge Indicators
BATTERY CHARGING INSTRUCTIONS Charge Indicators Your charger is designed to detect certain problems that can arise. Problems are indicated by the red light flashing at a fast rate. If this occurs, re-insert the battery pack into the charger. If the problem persists, try a different battery pack to determine if the charger is working properly. -
Page 10: Installing & Removing Battery Pack
ENGLISH BATTERY CHARGING INSTRUCTIONS WARNING: SHOCK HAZARD. DO NOT allow any liquid to get inside the charger. Electric shock may result. WARNING: BURN HAZARD. DO NOT submerge the battery pack in any liquid or allow any liquid to enter the battery pack. - Page 11 • Suggested working temperatures: 14°F to 104°F (-10°C to 40°C). Check hydraulic fluid specifications. • Hydraulic fluid temperatures over 149°F (65°C) might soften packings and seals and cause fluid leaks. • Inform authorized distributors or contact Klein Tools in case of any abnormalities or malfunctions of the product. TRIGGER SWITCH : Press the Trigger Switch to advance crimping piston and hold until the dies have fully compressed connector or cut through cable.
-
Page 12: Maintenance
• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Contact Klein Tools for authorized service centers. Visit for service manual and replacement part list. - Page 13 DISPOSAL Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information. THE RBRC™ SEAL The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium ion batteries (or battery packs) indicate that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid.
