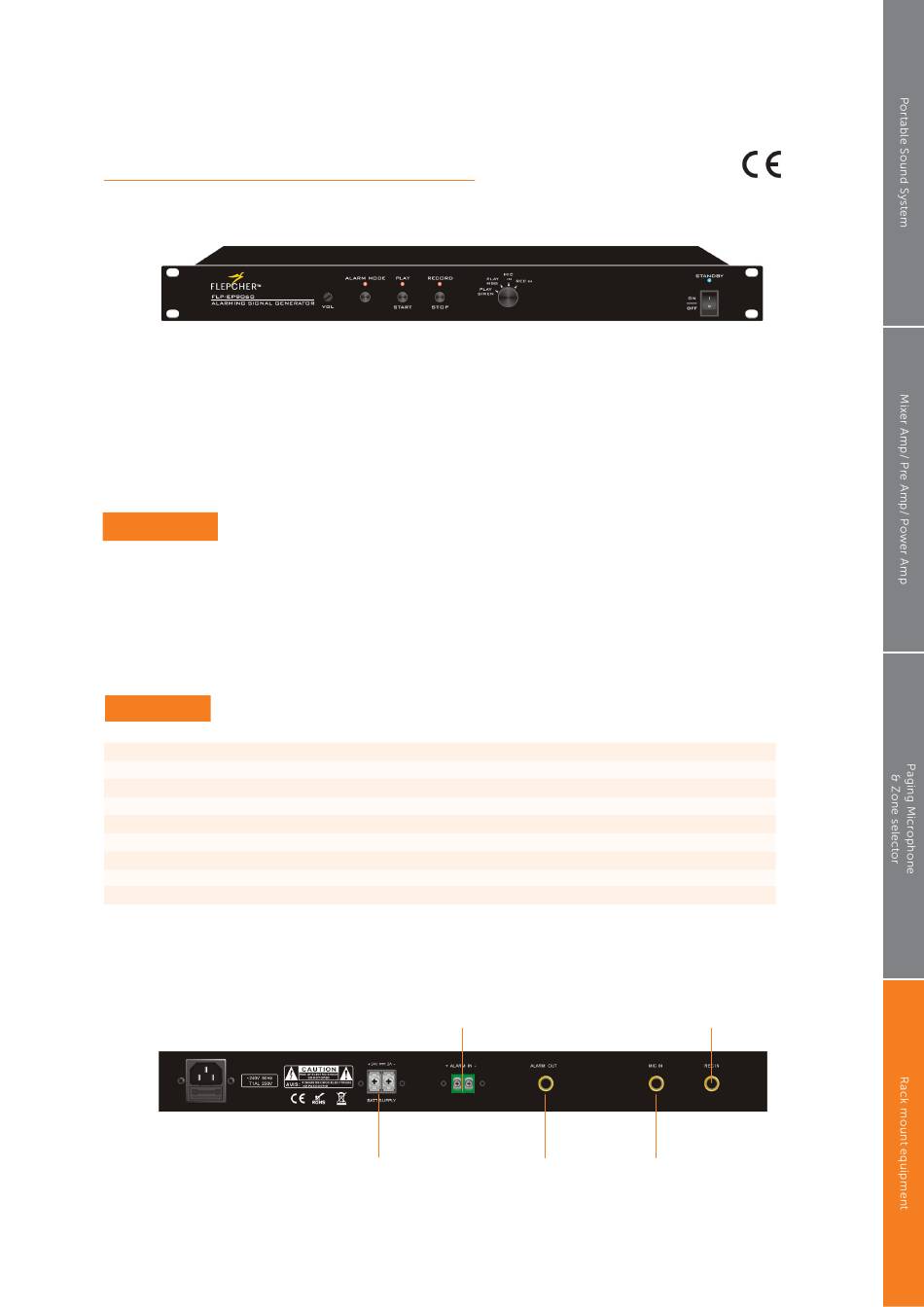

FLP-EP-9060
Emergency Panel
The EP-9060 functions as a public address panel that overrides any paging message or BGM broadcast to provide alert
and notification in times of emergency. The EP-9060 also allows the recording and broadcast of a one-minute
user-recorded message to yield alternate notification during a crisis.
When manual triggering is required, users can choose using the selection switch at the front panel to activate the function
of the built-in siren or the recording message. The fire port at the back panel provides the same capability when a physical
activation is called for.
Product Features
• Generate EMC signal
• One-minute recording function for MIC and LINE IN music
• Volume control for output microphone
• Automatic or manual alarm triggering
• 24V DC interface
Specifications
Power Requirement
Power Consumption
Siren Activation
Output Level
Input Channel
Indicators
Dimension (D x W x H)
Weight
Finish
~230V/50Hz, DC 24V
30W
Front panel / Remote contact
Balanced line out
Pre-amplifier output / audio recorder
Power LED
484 X 353 X 88
4.4kg
Black
Alarm input
DC 24V
Connect to
power
Pre-amp
Audio source
Mic for
recording purpose
23
Advertisement
Table of Contents
Summary of Contents for Flepcher FLP-EP9060
- Page 1 FLP-EP-9060 Emergency Panel The EP-9060 functions as a public address panel that overrides any paging message or BGM broadcast to provide alert and notification in times of emergency. The EP-9060 also allows the recording and broadcast of a one-minute user-recorded message to yield alternate notification during a crisis. When manual triggering is required, users can choose using the selection switch at the front panel to activate the function of the built-in siren or the recording message.
- Page 2 PUBLIC ADDRESS SYSTEM FLP-EP9060 ALARMING SIGNAL GENERATOR STANDBY ALARM MODE PLAY RECORD PLAY REC in PLAY SIREN FLP-EP9060 ALARMING SIGNAL GENERATOR START STOP Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel......................6 MACHINE OPERATION ..................7 6. APPLICATIONS .......................8 7.SPECIFICATIONS ....................9 8.DIMENSIONAL DIAGRAM ...................10... -
Page 4: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 5 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property...
-
Page 6: General Description
2. GENERAL DESCRIPTION The FLP-EP9060 is a public address emergency panel with can provide an ideal public address solution from small to big places such us mosques, schools, hotels and factories to train stadium and air stations. 3. FEATURES With alarm trigger and siren output. -
Page 7: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL STANDBY ALARM MODE PLAY RECORD PLAY REC in PLAY SIREN START STOP 1. VOL 5. SELECTION SWITCH Recording volume control Siren: Siren alarm signal output 2. ALARM MODE Fang recording: Audio alarm output Curing The alarm for a certain choice Recording: MIC -Microphone recording 3. -
Page 8: Machine Operation
5. MACHINE OPERATION MANUALLY OPERATION Recording operation: When the machine stands in the state of working. Before recording , you need erase the whole (1)Siren alarms : when you set the optional switch recording, and then record,the detailed steps at siren , press play knob , then it has a short siren are as follows: output;press alarm mode and select longalarming 1 Place the optional switch at LINE or MIC. -
Page 9: Applications
6. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 10: Specifications
7.SPECIFICATIONS EMERGENCY PANEL EMERGENCY PANEL MODEL FLP-EP9060 Power LED/Alarm work of the police state of indicator INDICATORS ~220-240V 50/60Hz POWER REQUIREMENTS (Specific voltage and frequency values to the machine to prevail in kind.) POWER CONSUMPTION 484X209X44 DIMENSION(mm) NET WEIGHT GROSS WEIGHT... -
Page 11: Dimensional Diagram
8. DIMENSIONAL DIAGRAM UNIT:mm STANDBY ALARM MODE PLAY RECORD PLAY REC in PLAY SIREN START STOP + ALARM IN - ALARM OUT MIC IN REC IN USE ONLY WITHA 250V FUSE USE ONLY WITHA 250V FUSE BATT SUPPLY 10cmMore STANDBY ALARM MODE PLAY RECORD... - Page 12 PUBLIC ADDRESS SYSTEM PUBLIC ADDRESS SYSTEM VersionV0.2...
- Page 13 FLP-EP9060, FLP-EP9060B, FLP-MP9010B, FLP-PS9800MKII, FLP-ZS9810 Brand Name: FLEPCHER （Product identification） Complies with the essential protection requirements of the European Parliament and of the Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
