- Page 1 Alkaline Water Electrolyzer Stack Install Guide (LSCF) User Manual - 1 -...
- Page 2 Contents 1. Stack Specification--------------------p3 2. Connection Method--------------------p4 3. System Schematics--------------------p5 4. Operation Conditions------------------p6 5. Cautions----------------------------p7 - 2 -...

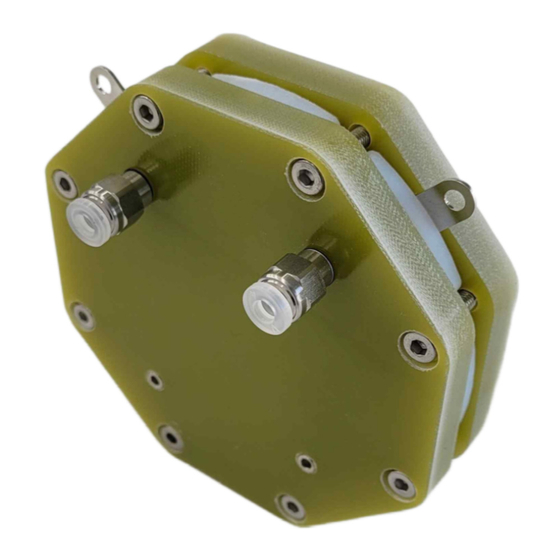

- Page 3 1. Stack Specification ◾ Model name: LSCF ◾ Size: 100 X 100 X 27mm ◾ Material: FRP, Engineering plastic ◾ Number of unit cell: 1 ea ◾ Separation membrane: Porous polymer ◾ Electrode material: Nickel based compound ◾ Current density: 300~500mA/cm @ 1.8V...
- Page 4 2. Connection Method Front view Rear view ➀ Block Port 1, Port 2 in the front view of the stack. ➁ Block Port 3 and Port 4 in the rear view of the stack. ➂ Insert electrolyte liquid into Port 3 and Port 4 in the front view of the stack.
- Page 5 3. System schematics - 5 -...
- Page 6 4. Operation Conditions ➀ Please set the basic BOP system of the alkaline electrolyzer before the start. ➁ KOH has the best performance in 30w% of concentration, and shows the highest performance when the temperature is 80℃. ➂ Connect the + label electrode to the positive voltage and the - label electrode to the negative voltage.
- Page 7 4. Cautions ∙ Make sure electrolyte solution (KOH) does not contact with the skin. ∙ Do not lay the electrolyzer stack by side of upside down. ∙ Do not disassemble or open the stack. ∙ Do not raise the pressure of hydrogen and oxygen production above 3bar ∙...
