Operating Manual
1. Intended Use
Line or outlet pressure regulators- /reducer for Air, gases and liquids which is designed to
effect reduction to a downstream pressure independent of the flow rate. Not for use as a
flow controller or as a shut-off valve. The regulators from series HP300 are self-contained, spring loaded pressure
reducing regulators.
The general function of pressure regulators is shown in the movie link!
Movie pressure regulators
2. Information on Instructions for use
Any use of the device requires full understanding and strict observation of these instructions. The device is only to
be used for purposes specified here.
2.1. Symbols
This symbol points to special data and/or rules and prohibitions concerning damage precaution.
These instructions are important for working safety!
This symbol identifies important instructions/regulations or in case of property damage danger.
3 Safety
3.1 Safety Instructions
Do not endanger yourself and other people. Please read the following safety instructions before
performing installation, operation and maintenance of fittings. They enable to avoid dangers to
people and units. Handling of technical gases – especially flammable or toxic gases – requires
knowledge of the subject, observation of instructions for use and special safety measures. In addition, regulations
and rules must be followed as applicable. (see 3.2)
Use these units only as intended (see section "Intended Use"). The same is valid for the used gas: improper use can
cause damage of the unit or injury and even death of persons.
Use gas detection devices, if you work with dangerous gases. These products detect leakage and warn the
personnel.
Wear gas mask, protection glasses and protection gloves, if you work with toxic gases and provide good ventilation.
Make sure that venting openings are not clogged and toxic gases will be discharged in use with pressure reducer
and plants equipped with relief valves.
Some gases can cause suffocation, because they displace oxygen from air. Ensure good ventilation, if you work with
these gases. It is recommended to install detectors which give an alarm if there is a lack of oxygen at the working
place.
Dok-Nr.: BA-HP300

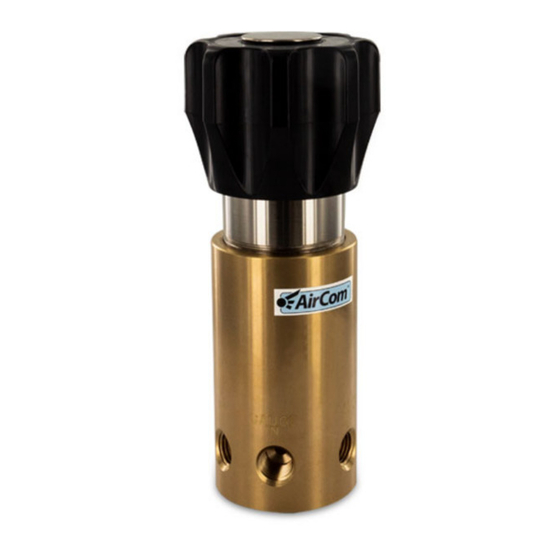

HP300 High pressure regulator
Created on 2022-03-28
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for AirCom HP300
Summary of Contents for AirCom HP300
- Page 1 Line or outlet pressure regulators- /reducer for Air, gases and liquids which is designed to effect reduction to a downstream pressure independent of the flow rate. Not for use as a flow controller or as a shut-off valve. The regulators from series HP300 are self-contained, spring loaded pressure reducing regulators.
- Page 2 In special cases greases can be used, which are specified for the corresponding application. The use of AirCom regulator for oxygen applications is permitted only with signed units. Special safety instructions for pressure reducers. If devices are connected with the pressure reducer ensure via separate protection equipment that no dangerous pressure will be built up in them.
- Page 3 HP300 High pressure regulator An internal filter is provided only to stop random contamination resulting from the installation of the regulator; an auxiliary upstream filter is recommended for use in all but the cleanest of media. Gaseous media should be free of excessive moisture to prevent icing of the regulator at high flow rates.
- Page 4 5.4 Repairs Faulty / damaged units can be send back to AirCom Pneumatic GmbH. After checking the unit we will send you a cost estimate with a first diagnostic. Regulators wich were not in use with air or neutral gases have to be cleaned before you send them back for repair.
