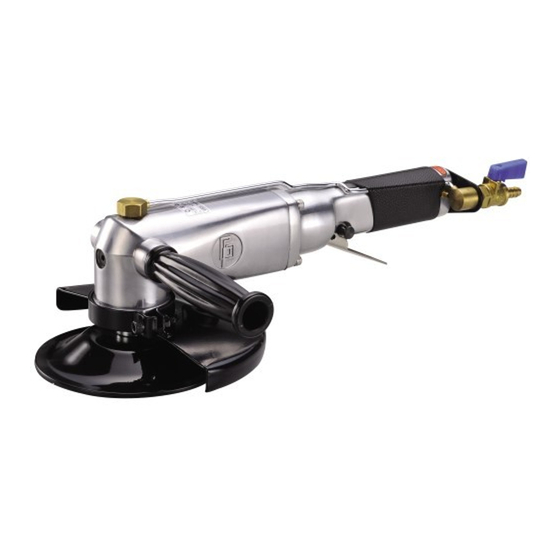

Gison GPW-216 Operation Manual

Wet air grinder

Table of Contents

Download this manual

GISON Machinery Co., Ltd.



Spindle Oil Hole

Loosen the screw in counter clockwise direction with a 5mm hex. spanner and

lubricating the gear set with oil directly from the hole. Fabricators can maintain

the machine themselves, save maintenance coset and extend duration of gear.



Safe Lever Knob

Before operating the tool, users need to press the knob to unlock the lever. Such

device is designed to keep users away from danger for unintentional press of the

lever.



Lever

Press the lever to start the tool. Just release the lever and the tool will stop

performing immediately.



Water Valve

Connecting water hose to this area to bring the waterfed function to the tool while

operating on materials easy to come up with dusts.



Water Regulator

Water regulator enables users to adjust frequency of water to proper speed according

to various needs of profiling.



Air Inlet Adaptor

Connecting the tool to air hose with suggested proper air supply.



Metal Cover

Protect users from getting hure when small particles pop up.



Adjust Screw

To increase work efficiency and convenience, users can loosen the screw with a

5mm hex. spanner to adjust the direction of the cover.

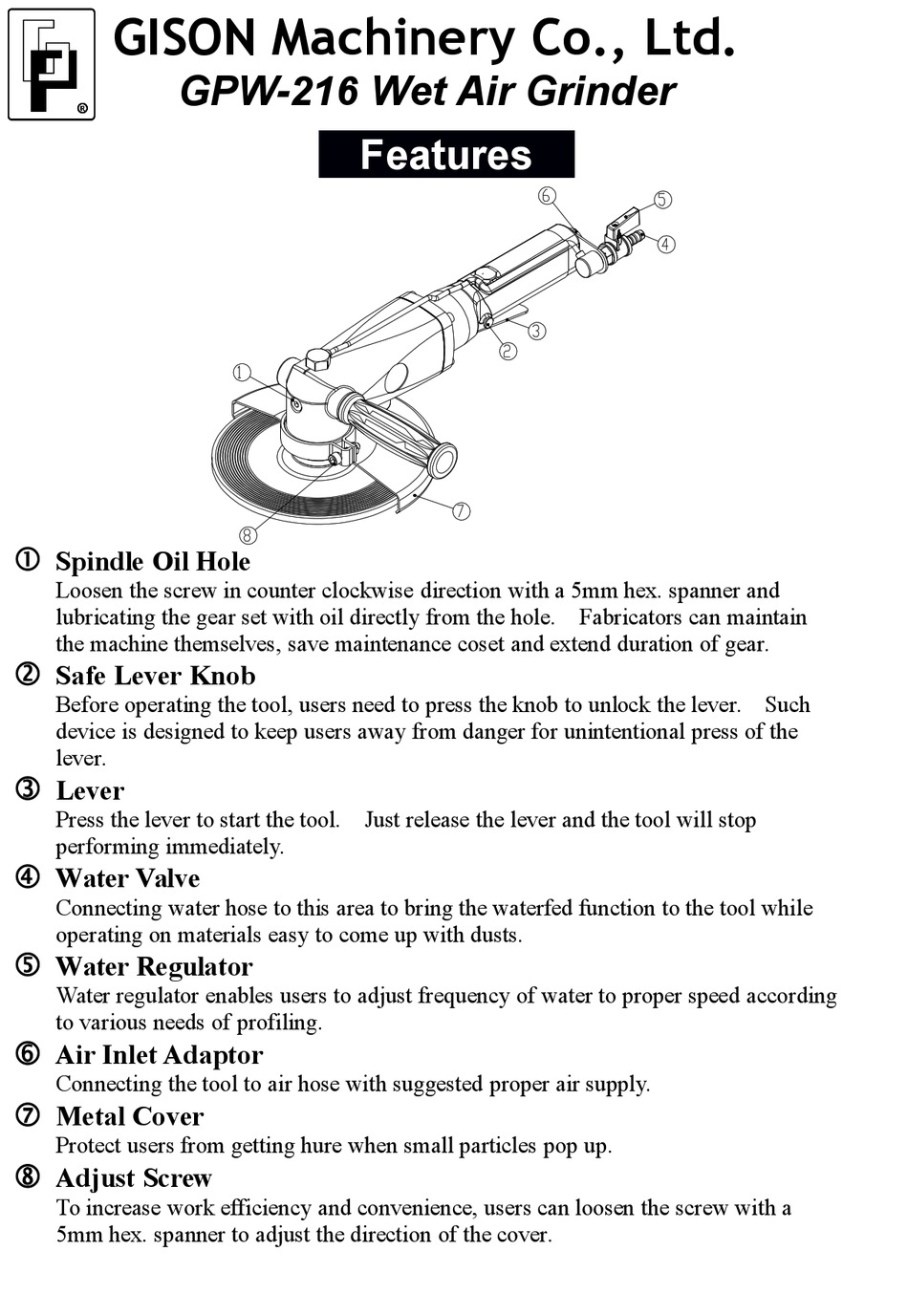

GPW-216 Wet Air Grinder

Features

Table of Contents

Do you have a question about the GPW-216 and is the answer not in the manual?

Page 1 GISON Machinery Co., Ltd. GPW-216 Wet Air Grinder Features  Spindle Oil Hole Loosen the screw in counter clockwise direction with a 5mm hex. spanner and lubricating the gear set with oil directly from the hole. Fabricators can maintain the machine themselves, save maintenance coset and extend duration of gear.
Page 2 Disc Wheel Installation  Installation： Dovetail and fix the spindle (10) by stop spanner (36), and turn disc spanner (69) in clockwise direction to tighten the disc nut (4).  Replace： Dovetail and fix the spindle (10) by stop spanner (36), turn disc spanner (69) in counter clockwise direction to loose disc nut (4) to replace the disc wheel (47).
Page 3 operating this sander within the specified air pressure ranges.  The Air Regulator Function Grip the body while press the lever. Then switch the air regulator to turn the tool “on”. For faster r.p.m, turn the air regulator valve for air flow control from zero to max.
