Ningbo JB-P03 Manual

Swimming pool alarm
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT: PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT IN A SAFE PLACE

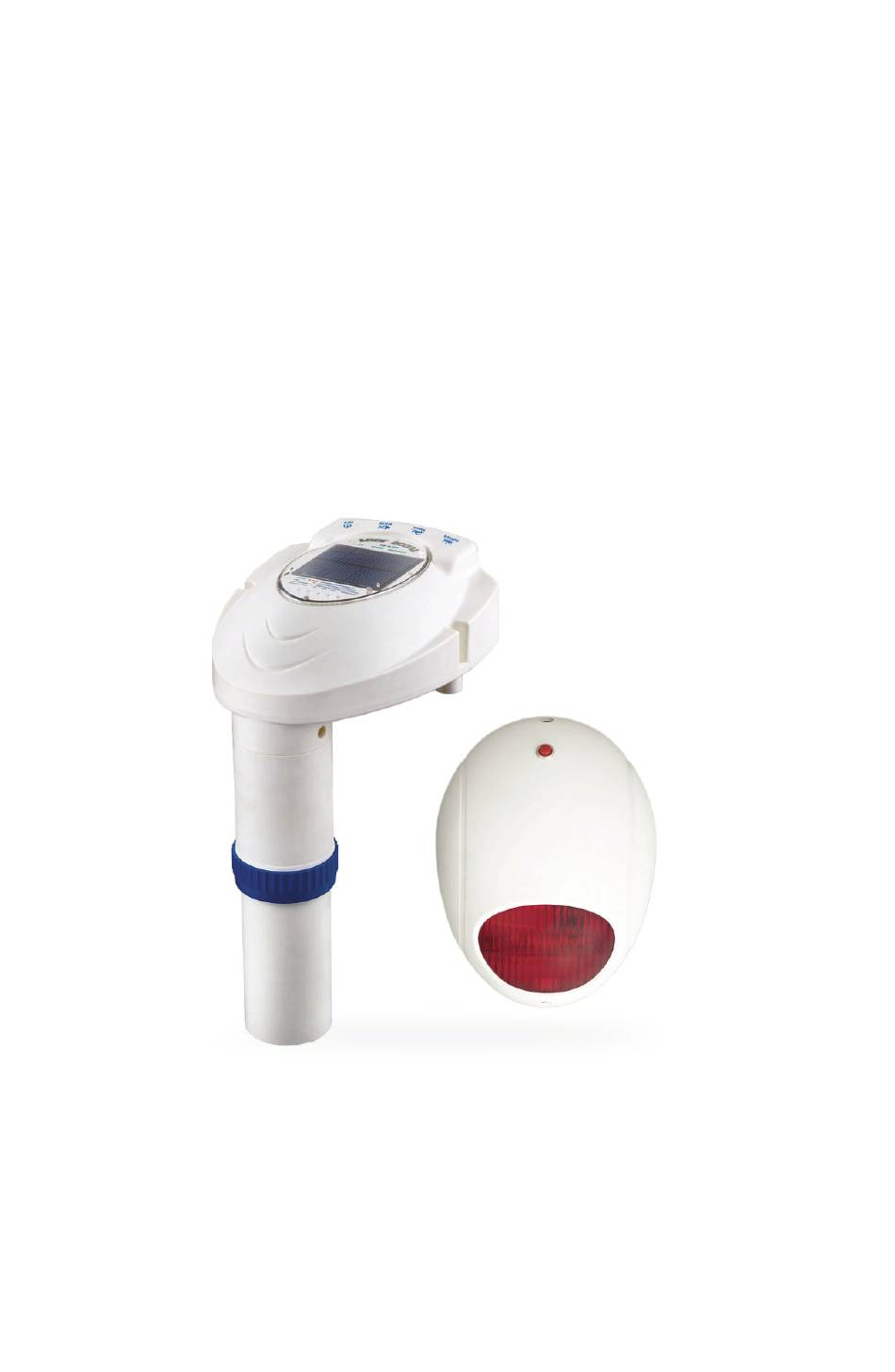

SWIMMING POOL
ALARM JB-P03
MANUAL
SWIMMING POOL ALARM is designed and made by ISO 9001 certified
manufacturer. Our mission is to provide the highest combination of quality, service
and price to support our distributors and customers.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JB-P03 and is the answer not in the manual?

Questions and answers

Related Manuals for Ningbo JB-P03

Summary of Contents for Ningbo JB-P03

  • Page 1 IMPORTANT: PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT IN A SAFE PLACE SWIMMING POOL ALARM JB-P03 MANUAL SWIMMING POOL ALARM is designed and made by ISO 9001 certified manufacturer. Our mission is to provide the highest combination of quality, service...
  • Page 2 1. GENERAL POOL ALARM is the result of intellectualized and quality design and high manufacturing techniques, it is an electronics monitoring system that automatically sounds an alarm when children or pets fall into your unsupervised pool. POOL ALARM is a portable, self-contained, light weight unit that is safe and simple to operate.

  • Page 3: Battery Installation/Replacement

    4. BATTERY INSTALLATION / REPLACEMENT 4.1 The Main unit is powered by 6pcs alkaline batteries LR20 1.5V, install and replace battery as followings: Remove the screws in rear battery-case (see Fig. 3-1/2/3/4). 4.2 With low battery warning function, if main unit beep every 20 seconds, that indicates you to replace the battery with new ones.
  • Page 4 5.1 Your pool alarm integrates intelligent system which analyzes the surface of the pool and can automatically reset. It is easy to operate, and involve many different functions, which are achieved through operation of Control Buttons. Attention: 1. To move control button, you have to press it down at first, this is designed to avoid false operation by children.
  • Page 5 5.4 Return to surveillance status If system sounds alarm,it will last alarming for 4 minutes, if you want to stop it,just move button to any position, then system will re-enter into surveillance status(see Fig. 6-1/2) Fig 6-1 Fig 6-2 5.5 Swim status Move control button to "SWIM", you will hear “WO WO”...
  • Page 6 5.6 Mute function for main unit Move control button to "MUTE", the system enter into MUTE status,the main unit only send signal to receiver without giving out alarm sound(see Fig. 8). Fig 8 5.7 Transmitter function description 5.7.1 Power-on Connect the DC plug with the receiver and power on the receiver,then set the red switch key to ON, the LED3 of the receiver will flashes every 10 seconds to indicate the receiver is in working status.
  • Page 7 5.7.2 Alarm Function 5.7.2.1 Normal Alarm When children or pets fall into pool, ponds, the receiver will alarm with LEDS flashing and give out sounds at the same time(see Fig 10). WO~WO~…… LED1 LED2 LED3 LED4 LED5 Fig 10 5.7.2.2 Temporarily sound mute function When the receiver receive the alarm signal from the transmitter and alarm, you can temporarily stop the alarm sound by short pressing the function button(see Fig 11).
  • Page 8 5.7.3 MUTE function When the receiver enter into MUTE status, it means the receiver will give out visual LED flashing without sound. 5.7.3.1 Normal status to MUTE status Short press function button 1 time, LED2 will flash 1 time along with 1 beep, it enters into Mute status, then LED2, LED3, LED4 will flash every 10 seconds to indicate the receiver is now MUTE status(see Fig 13-1/2).
  • Page 9 5.7.5 Battery recharge function If you put a rechargeable 9V battery in the receiver. When the adaptor is plugged in, the battery will be recharged automatically.The battery can be recharged approximately 1,200 times, and will last about 6~7 hours once fully charged. The normal charging time is about 10 hours.When the mains is disconnected or you want to use outside,the fully charged battery can last about 6~7 hours.
  • Page 10 7. INSTALLATION & REMOVAL OF MAIN UNIT 7.1 Our alarm can be adjusted to apply different water levels with submersible sensor tube, we suggest the gap 1-2cm between tube and pool wall (see Fig. 17-1/2). Fig 17-1 Fig 17-2 7.2 Tools needed: percussive drill, dia.8mm; cross screwdriver, dia.6mm. 7.3 Procedures: A.
  • Page 11 Fig 19-2 Fig 19-1 Fig 19-3 Fig 19-4 7.5 If to remove the main unit, use screwdriver to take off screws. 8. ADJUSTMENT OF SUBMERSIBLE SENSOR TUBE 8.1. It is suggested that the sensor tube should submerge into water 10cm(3.9") deep (see Fig.
  • Page 12 Fig 21-1 Fig 21-2 Fig 21-3 Fig 21-4 9. TEST 9.1 To make sure the device work effectively, we suggest to test alarm each time before use: Set the alarm system in surveillance status at first, drop child simulator (e.g. four 1.5L bottles full of water, not less than 6kgs) into pool at the farthest point from main unit, the alarm system will sound alarm in seconds when water waves get contact with sensor (see Fig.
  • Page 13 10.3. In case of power failure, you can have back-up battery inside, battery installation or removal, see Fig. 23. Fig 23 10.4. W/ reset button, you can reset remote receiver when alarming. 10.5. Remote receiver sounds alarm together with red light flashing, both to attract attention and help alert those who may be hard of hearing.

  • Page 14: Warranty And Repairs

    It will not sound alarm when you are swimming. 11.3. After your swimming, wait till the water calm down, move Control Button to left side to activate alarm system, or wait a few seconds for the system to activate automatically. Attention: make sure the system is activated before leaving the pool.

  • Page 15: Troubleshooting

    14. ATTENTION POOL ALARM has been designed to aid in the detection of unwanted intrusions into unsupervised pools. POOL ALARM IS A SAFETY ALARM SYSTEM AND NOT A LIFE SAVING DEVICE. “This device is not intended to replace any other safety consideration -e.g.
  • Page 16 Q: if it is ok to drop alarm into water for long time? A: do not Q: Unconscious of alarm dropping into water for long time, what to do? A: turn off the system and let it dry at first, and test it before start to use. Q: if it is available to use in lake, spa, fish pond, …? A: Yes.
