Summary of Contents for MODI T30-S

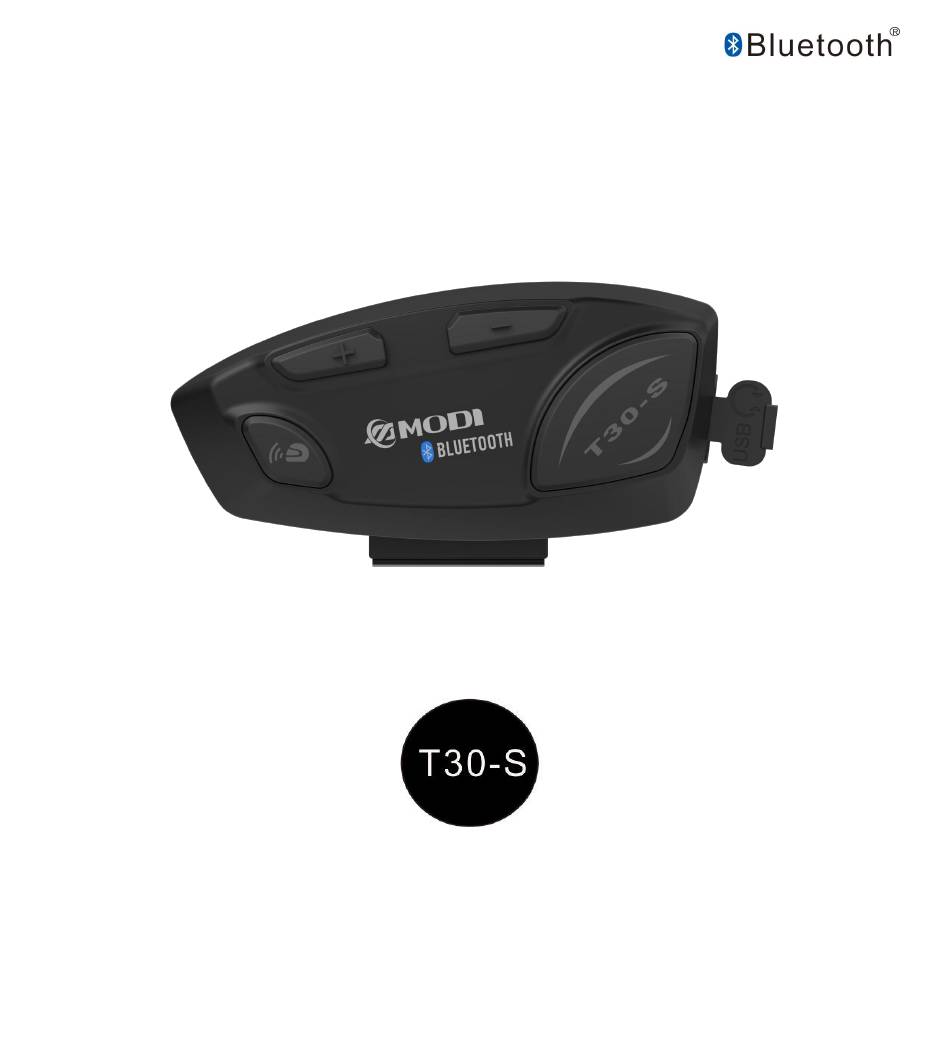

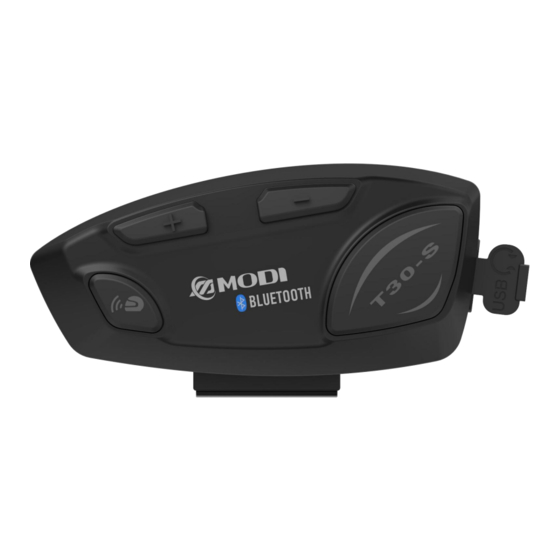

- Page 1 User Guide Motorcycle 4-Way Conference Intercom...
-
Page 2: Table Of Contents
Table of Contents Introduction ---------------------------------------------- Page 1 Packet Contents ----------------------------------------Page 2 Install Instructions ---------------------------------------Page 3 Charging ---------------------------------------------------Page 5 General Operation Instructions -----------------------Page 5 FM Operation ---------------------------------------------Page 8 Universal Pairing and Using ----------------------------Page 9 Bluetooth Intercom Talk --------------------------------Page 10 Technical Specifications --------------------------------Page 16 Certification ----------------------------------------------Page 16... -
Page 3: Introduction
With the T30-S, you can call hands-free on your Bluetooth mobile phone, listen to music or voice instructions of GPS navigation, and activate wireless intercom for rider to rider or rider to passenger intercom talk within range of 2100 meters(Depending on terrain conditions). -
Page 4: Packet Contents
2: Packet Content... -
Page 5: Install Instructions
HIFI Speaker and Microphone Type C USB Cable Clip Mounting Bracket User Guide 3: Install Instructions 1:Locate the helmet at the left and clean it up 2:Peel off the 3M rubber protective film 3:Apply pressure to the metal carrier to secure the holder firmly Note: it takes 24 hours after drying. - Page 6 Install host 1:Slide T30-S host off the top of the clip and you'll hear a click when it is completely plugged in 2:Plug in the Type C headset plug Headset mounting method 1:Stick the left and right horns of the headphones in the position of the left and right ears of the helmet 2: Keep the microphone in front of the mouth，Note: microphone holes point to the mouth...
-
Page 7: Charging
Pairing with Cell Phone or GPS and Using Mobile Phone/GPS pairing steps 1. When power off，press Phone button for approx 6S, blue and red light flashing，headset enter mobile phone pairing mode. Open the phone Bluetooth, search for “T30-S”, then click on the phone connection pair. - Page 8 Answer phone calling: The unit will automatically answer the incoming call after 12 seconds. Or press Phone button to answer the incoming phone call immediately. Reject incoming call: When have incoming calls, double press Phone button 2 times to reject within 12s。 End phone calling: During talking, short press Phone button to end the call。...
- Page 9 T30-S_2 is in standby mode, double-click the phone key of T30-S_2, T30-S_2 will query and connect T30-S_1, and then play it automatically T30-S_1’s music Stop Music Sharing: When the T30-S is in the music sharing state, double-click the phone key on the device to end the music sharing. Voice Volume Control: Short press Volume + button or Volume- button adjust the voice volume.
- Page 10 6: FM RADIO Turn on/off radio When in standby mode, press and hold button Phone 1 seconds to turn on FM radio. Press and hold it again for 1 seconds to turn off FM radio. FM Radio Station Search While in FM mode, double press Volume + button or Volume - button two times to search a next/previous FM channel.
-
Page 11: Universal Pairing And Using
Intercom ,the blue light flashing. After pair successful, the blue light slows down. After paired, while T30-S at standby mode, press Volume+ and Volume- button at the same times, T30-S reconnect with Bluetooth headset which connected before and start talking. -
Page 12: Bluetooth Intercom Talk
8: Bluetooth Intercom Talk The T30-S can be paired with other T30-S for up to a total of 4 units for full duplex Bluetooth intercom. Pairing Two T30-S headsets and talk Step 1: Power on unit 1 and unit 2, press and hold unit 1 and unit 2 Intercom Button for 1s, red and blue light light flash alternately, then press Intercom button on either unit, the blue light flashing. - Page 13 Pairing Three T30-S headsets and talk Step 1: Power on unit 1 and unit 2, press and hold unit 1 and unit 2 Intercom Button for 1s, red and blue light light flash alternately, then press Intercom button on either unit, the blue light flashing.
- Page 14 During Intercom talking, short press Intercom button or Phone button to exit intercom mode. Pairing Four T30-S headsets and talk Step 1: Power on unit 1 and unit 2, press and hold unit 1 and unit 2 Intercom Button for 1s, red and blue light light flash alternately, then press Intercom button on either unit, the blue light flashing.
- Page 15 Step 3: Power on unit 3 and unit 4, press and hold unit 3 and unit 4 Intercom Button for 1s, red and blue light light flash alternately, then press Intercom button on either unit, the blue light flashing. After pair successful, the blue light slows down. Step 4: After pair finished, Short press Intercom button on unit1 or unit2, it will start intercom between unit1 and unit2.
-
Page 16: Technical Specifications
9: Technical specifications： 1. Bluetooth 4.2 Support : HSP,HFP,A2DP,AVRCP, AGHSP 2. Working hours: 15 hours 3. Standby time: 300 hours 4. Charging time: 3 hours 5. Battery: lithium containing rechargeable lithium battery 650mAH, 3.7v 6. Dimensions: 43g 7. Weight: 85mm*40mm*26mm 8. - Page 17 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 18 MADE IN CHINA Web: www.winnerelec.com E-mail: sales@winnerelec.com...
