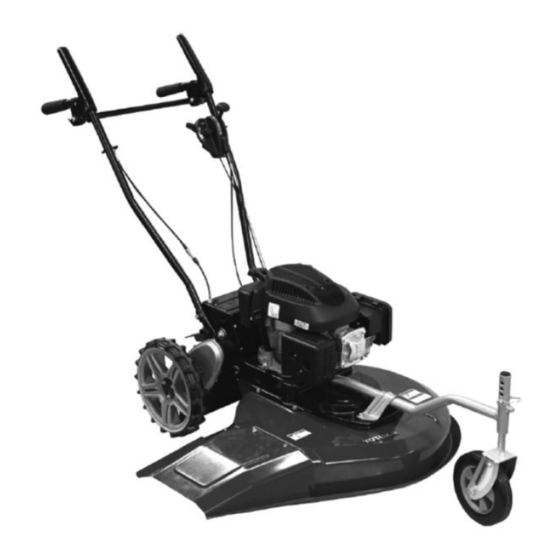

Summary of Contents for MILLASUR ANOVA DC361
- Page 1 Instructions and user manual DC361 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com...
-
Page 2: Information About This Manual
ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be very useful if used in accordance with the instructions contained in the user manual. -
Page 3: Basic Safety Instructions
INDEX 1. BASIC SAFETY INSTRUCTIONS 2. GENERAL SAFETY RULES 3. PARTS OF THE MACHINE 4. TECHNICAL DATA 5. ASSEMBLY 6. OPERATING INSTRUCTIONS 7. MAINTENANCE INSTRUCTIONS 8. LUBRICATION INSTRUCTIONS 9. CLEANING 10. STORAGE INSTRUCTIONS (OUT OF SEASON) 11. TROUBLESHOOTING 12. ENVIRONMENT 13. - Page 4 maintenance and service conditions. • Due to the high risk of bodily injury to the user, the machine cannot be used to trim shrubs, hedges or shrubs, to cut vegetation, planted roofs or grass growing on balconies, to clean (vacuum) dirt and debris out of hallways , or to cut trees or hedge trimmings.
-
Page 5: General Safety Rules
2. GENERAL SAFETY RULES Warning When using gasoline tools, always observe basic safety precautions. It should always be followed to reduce the risk of serious personal injury and / or damage to the unit. Read all of these instructions before operating this product and keep them. for future reference. - Page 6 risks caused by noise and vibration to the user. Rest at reasonable intervals during work. • Be careful when using the mower on slopes and near slopes or embankments. • Mow only in daylight or good artificial light. • Avoid using the equipment on wet grass. •...
-
Page 7: Parts Of The Machine
and gasoline storage area free of grass, leaves, or excessive grease. • Check the grass catcher frequently to see if it is worn or damaged. • Replace worn or damaged parts for safety. • If it is necessary to empty the fuel tank, it should be done in the open air. •... -
Page 8: Technical Data
4. TECHNICAL DATA Model DC361 Motor LONCIN 6HP (LC1P68FA) Self-propelled speed 0.4 - 1 m / s Displacement 185cc Power 3.4kW Cutting width 610mm Fuel tank capacity 1.0L Cutting height 25-40-55-75mm (4 positions) Net weight 60 kg Sound pressure level guaranteed 83.7 dB (A) at the operator's position K = 3dB (A) - Page 9 2. Align the 4 mounting holes on the handle with the screw holes on the case one by one. Attach the handle to the machine. Figure 5-2 3. Insert the terminal of the clutch into the corresponding hole in the lever. Figure 5-3 Left Right...
- Page 10 5. Install the traction cable. Place the draw wire nut with the iron stem on the iron screw found in the adjusting box and turn it. Turn another 2-4 turns after feeling obvious pulling force. Finally, turn until the nut is tight and backlash-proof.
- Page 11 6. OPERATING INSTRUCTIONS 6.1 Before use • Service the engine with gasoline and oil. Read the instructions carefully. • Warning Gasoline is highly flammable. o Store fuel in containers specifically designed for this purpose. o Refuel only outdoors before starting the engine and do not smoke while refueling or handling fuel.
- Page 12 6.3 Rotating and stopping the blade Press the safety knob and then press down on the blade clutch lever to activate the blade. Hold the handle when the blade is in operation. Figure 6-2 Press 2 Clutch lever - blade Drop the "Clutch Knife Lever "...
- Page 13 The step as follows: 1. Release the vending drive control handle until the machine stops moving. 2. Set the appropriate speed you want. 3. Grasp the vending transmission control handle to continue mowing. Figure 6- Self driven Self-driving control handle Do not attempt to cut exceptionally tall wet or dry grass (eg grasses) or piles of dry leaves.
- Page 14 Front wheel height adjustment Grip for fit Rear wheel height adjustment 1. Stop the blade before changing the mower's cutting height. 2. The height adjustment lever offers you 4 different height positions. 6.7 Usage tips • Clear the lawn of debris. Make sure it is free of stones, sticks, wires, or other foreign objects that could be accidentally thrown by the machine in any direction and cause serious personal injury to the operator and others, as well as damage to property and surrounding objects.
-
Page 15: Maintenance Instructions
6.8 Cover cleaning The underside of the mower deck should be cleaned after each use to prevent a build-up of grass clippings, leaves, dirt, or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and can prevent proper mulching. - Page 16 9.2 Cutting blade Caution: Be sure that disconnect the spark plug wire before working on the cutting blade to avoid accidental starting of the engine. • Protect your hands by using thick gloves or a cloth to grasp the cutting blades.
- Page 17 contact your official dealer). 9.4 Engine • Maintain engine oil as directed in the engine manual that comes separately with your unit. Read and follow the instructions carefully. Perform air filter maintenance according to separate engine manual under normal conditions. •...
-
Page 18: Troubleshooting
10.1 Transportation • Stop the engine and let it cool down. • To disconnect the spark plugs and empty the fuel tank according to the instructions. • Make sure not to bend or damage the mower when pushing it over obstacles. -
Page 19: Warranty
12. ENVIRONMENT If your machine needs to be replaced after prolonged use, do not put it in household waste, dispose of it in an environmentally safe way. Never pour chain lubricant residue or fuel mixture into the sewer system or the ground. You must go to a special collection point or dump. -
Page 20: Exploded View
14. EXPLODED VIEW DC361... -
Page 21: Ec Declaration Of Conformity
15. EC DECLARATION OF CONFORMITY DISTRIBUTION COMPANY MILLASUR, SL RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO 15688 OROSO - A CORUÑA SPAIN CE DECLARATION OF CONFORMITY In compliance with the different CE directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed by the...
