Summary of Contents for JASTEC uvim-W
- Page 1 User Manual...
- Page 2 • Product Name : uvim-W • Part Number : JAS-U2-2018 • Serial Number : UW1AC00001(example) – Position 1~2 : Product Name • UW, uvim-W – Position 3 : Wireless option • WiFi + Bluetooth : 1 • WiFi : 2 •...
- Page 3 Communication Module Components uvim-W Communication Module USB Cable Diagnostic Cable 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.

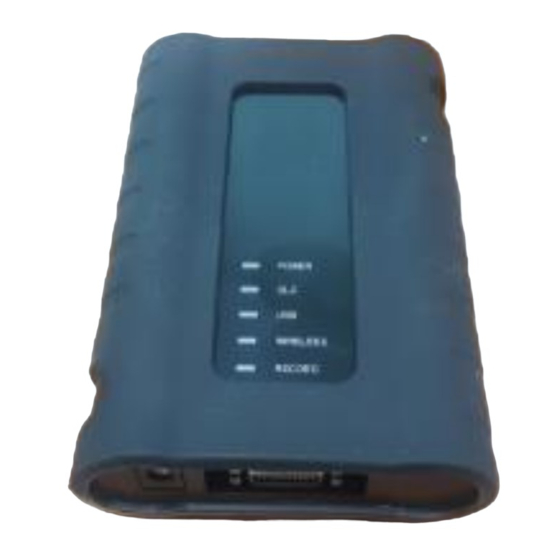

- Page 4 Special Feature uvim-W(Universal Vehicle Interface Module - Wireless) • Power input by USB, DLC or DC. • Communicate by USB port and wireless(WIFI, BT) of PC • CAN Communication Function • – CAN 2.0B – J1939 data acquisition is possible.
- Page 5 Components – uvim-W Specification Item Specification Color : BLACK CASE Material : PLASTIC & RUBBER Size(mm) : 125(L) X 85(W) X 27(H) STM32F405VG 5x LED Indication POWER/DLC/USB/WIRELESS/RECORD Vehicle Power(12V ~ 24V) Power DC Input(6 ~ 35) ...
- Page 6 Components - Cable 16 PIN Main Cable 3M Connector Communication Type OBD2 CAN1,2-H Length : 100cm CAN1,2-L Material : PVC K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single K-line/CAN2 H,L,Single L-line J1850-H J1850-L RS-232 CH1 Tx RS-232 CH1 Rx...
- Page 7 Components - USB CABLE • Length : 150cm • Material : PVC 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 8 Components - BOX • Size :32 X 23 X16 cm • Material : Aluminum • Weight : 2kg • Product Name : SMATO N007S-R 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 9 Communicaiton Module Connecting Method Connect to vehicle Connect to notebook by wireless Connect to notebook by USB (power on when connecting usb) 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 10 - The uvim-W can communicate with vehicle and PC software. R(Recording Mode) - PC interface cannot be used. - The uvim-W can communicate with vehicle and save data to micro SD card. 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 11 DLC is connected and power is input by DLC. Power is input by DC. 2. Vehicle interface Status When uvim-W communicates with vehicle, DLC led is on. 3. PC interface Status When uvim-W communicates with USB, USB led is on.
- Page 12 Windows 7/8/8.1/10 1. Install “Setup_Jastec_uVIM_Driver_V1.1.exe” and connect uVIM USB Cable with PC. 2. Device Setup is automatically started as below. 3. After Device Setup is completed, check the status of JASTEC Virtual COM Port from Device Manager. <Picture 1> <Picture 2>...
- Page 13 USB Driver Recognition 5. When you select Update Driver Software, Driver 4. In case of JASTEC Virtual COM Port is shown as yellow exclamation mark from Other devices, you Searching screen will be shown. At this time, click ‘Search need to re-start driver update.
- Page 14 USB Driver Recognition 7. This time, click ‘Browse my computer 8. Click the folder that Diagnosis Program is installed from ‘Browse for driver software on your computer’. for driver software.’ Diagnosis program installed location is as below. In case of 32bit OS : c:\program files\xxx In case of 64bit OS : c:\program files(x86)\xxx 9.
- Page 15 USB Driver Recognition 11. Jastec Virtual COM Port is shown in Device manager. 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 16 Communicaiton Module Block Diagram Connect to PC by Connect to USB or Wireless vehicle 본 문서는 기밀문서로 무단배포 및 유포를 금지합니다.
- Page 17 Jastec Virtual Comport (refer to pg 13). • uvim-W Setting uvim-W will be set to connect to vehicle ECU through serial interface in CAN, K-line Protocol • Vehicle Communication uvim-W setting & ECU Communication shall be operated as follows.
- Page 18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
