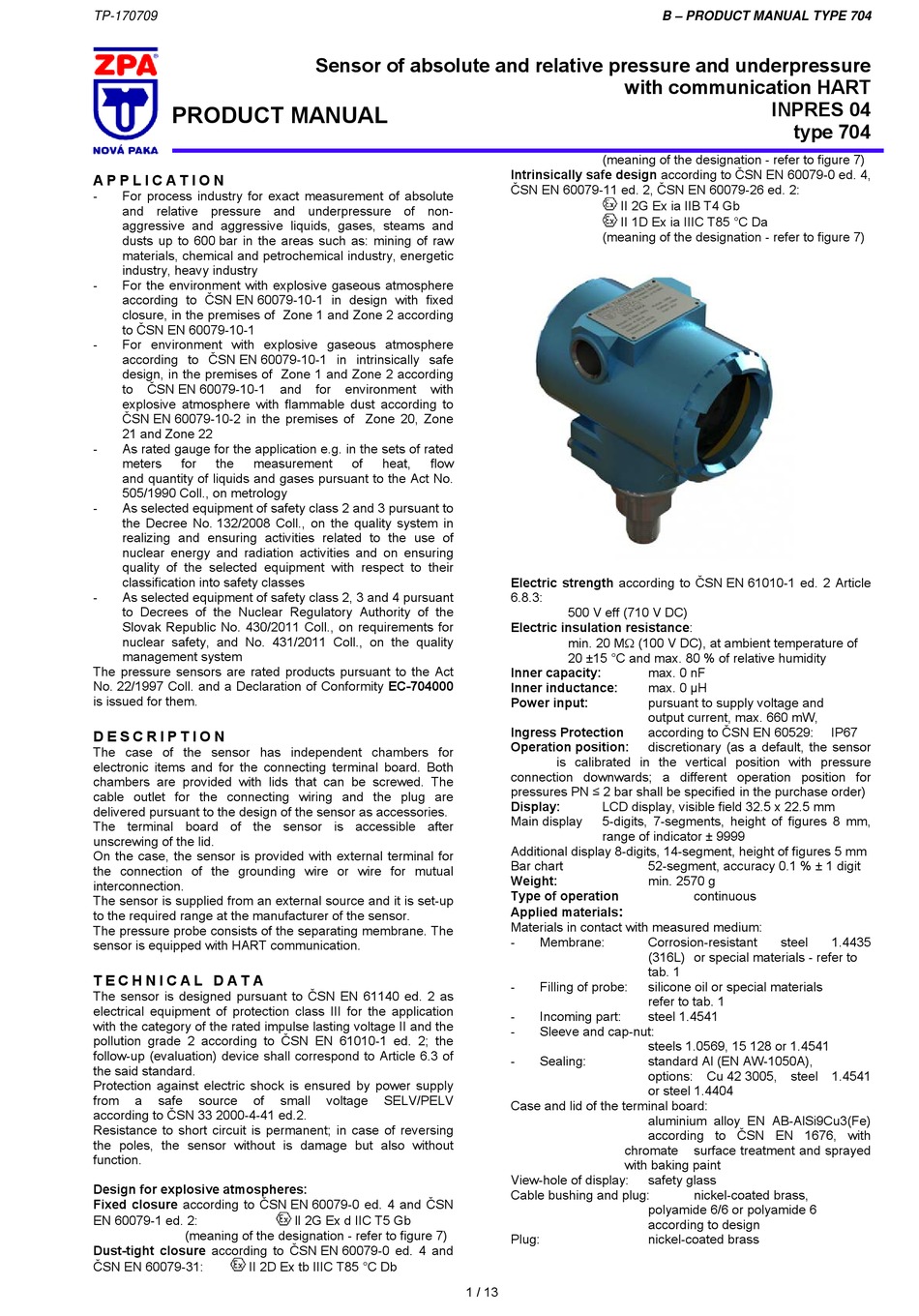

PRODUCT MANUAL
A P P L I C A T I O N
- For process industry for exact measurement of absolute
and relative pressure and underpressure of non-
aggressive and aggressive liquids, gases, steams and
dusts up to 600 bar in the areas such as: mining of raw
materials, chemical and petrochemical industry, energetic
industry, heavy industry
- For the environment with explosive gaseous atmosphere
according to ČSN EN 60079-10-1 in design with fixed
closure, in the premises of Zone 1 and Zone 2 according
to ČSN EN 60079-10-1
- For environment with explosive gaseous atmosphere
according to ČSN EN 60079-10-1 in intrinsically safe
design, in the premises of Zone 1 and Zone 2 according
to ČSN EN 60079-10-1
explosive atmosphere with flammable dust according to
ČSN EN 60079-10-2 in the premises of Zone 20, Zone
21 and Zone 22
- As rated gauge for the application e.g. in the sets of rated
meters for the measurement
and quantity of liquids and gases pursuant to the Act No.
505/1990 Coll., on metrology
As selected equipment of safety class 2 and 3 pursuant to
-
the Decree No. 132/2008 Coll., on the quality system in
realizing and ensuring activities related to the use of
nuclear energy and radiation activities and on ensuring
quality of the selected equipment with respect to their
classification into safety classes
- As selected equipment of safety class 2, 3 and 4 pursuant
to Decrees of the Nuclear Regulatory Authority of the
Slovak Republic No. 430/2011 Coll., on requirements for
nuclear safety, and No. 431/2011 Coll., on the quality
management system
The pressure sensors are rated products pursuant to the Act
No. 22/1997 Coll. and a Declaration of Conformity EC-704000
is issued for them.
D E S C R I P T I O N

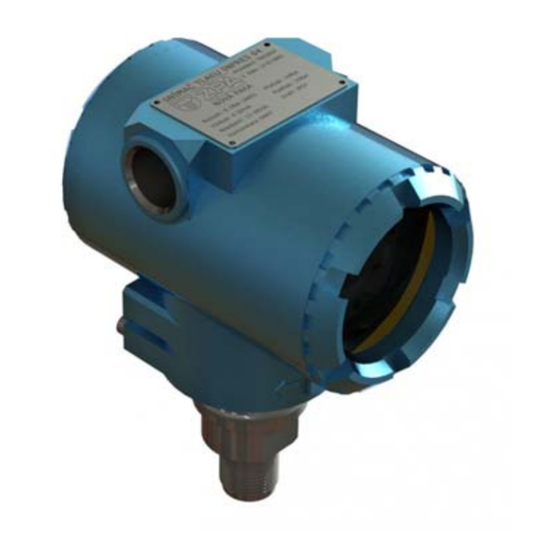

The case of the sensor has independent chambers for
electronic items and for the connecting terminal board. Both
chambers are provided with lids that can be screwed. The
cable outlet for the connecting wiring and the plug are
delivered pursuant to the design of the sensor as accessories.
The terminal board of the sensor is accessible after
unscrewing of the lid.
On the case, the sensor is provided with external terminal for
the connection of the grounding wire or wire for mutual
interconnection.
The sensor is supplied from an external source and it is set-up
to the required range at the manufacturer of the sensor.
The pressure probe consists of the separating membrane. The
sensor is equipped with HART communication.
T E C H N I C A L D A T A
The sensor is designed pursuant to ČSN EN 61140 ed. 2 as
electrical equipment of protection class III for the application
with the category of the rated impulse lasting voltage II and the
pollution grade 2 according to ČSN EN 61010-1 ed. 2; the
follow-up (evaluation) device shall correspond to Article 6.3 of
the said standard.
Protection against electric shock is ensured by power supply
from a safe source of
according to ČSN 33 2000-4-41 ed.2.
Resistance to short circuit is permanent; in case of reversing
the poles, the sensor without is damage but also without
function.
Design for explosive atmospheres:
Fixed closure according to ČSN EN 60079-0 ed. 4 and ČSN
EN 60079-1 ed. 2:
(meaning of the designation - refer to figure 7)
Dust-tight closure according to ČSN EN 60079-0 ed. 4 and
ČSN EN 60079-31: II 2D Ex tb IIIC T85 °C Db
Sensor of absolute and relative pressure and underpressure
and for environment with
of heat, flow
small voltage SELV/PELV
lI 2G Ex d IIC T5 Gb
with communication HART
(meaning of the designation - refer to figure 7)
Intrinsically safe design according to ČSN EN 60079-0 ed. 4,
ČSN EN 60079-11 ed. 2, ČSN EN 60079-26 ed. 2:
II 2G Ex ia IIB T4 Gb
II 1D Ex ia IIIC T85 °C Da
(meaning of the designation - refer to figure 7)
Electric strength according to ČSN EN 61010-1 ed. 2 Article
6.8.3:
500 V eff (710 V DC)
Electric insulation resistance:
min. 20 M (100 V DC), at ambient temperature of
20 ±15 °C and max. 80 % of relative humidity
Inner capacity:
Inner inductance:
Power input:
Ingress Protection
Operation position:
is calibrated in the vertical position with pressure
connection downwards; a different operation position for
pressures PN ≤ 2 bar shall be specified in the purchase order)
Display: LCD display, visible field 32.5 x 22.5 mm
Main display 5-digits, 7-segments, height of figures 8 mm,
range of indicator ± 9999
Additional display 8-digits, 14-segment, height of figures 5 mm
Bar chart
Weight:
Type of operation
:
Applied materials
Materials in contact with measured medium:
- Membrane:
- Filling of probe:
- Incoming part:
- Sleeve and cap-nut:
- Sealing:
Case and lid of the terminal board:
chromate
with baking paint
View-hole of display:
Cable bushing and plug:
Plug:
1 / 13
B – PRODUCT MANUAL TYPE 704
INPRES 04
type 704
max. 0 nF
max. 0 µH
pursuant to supply voltage and
output current, max. 660 mW,
according to ČSN EN 60529:
discretionary (as a default, the sensor
52-segment, accuracy 0.1 % ± 1 digit
min. 2570 g
continuous
Corrosion-resistant steel
(316L) or special materials - refer to
tab. 1
silicone oil or special materials
refer to tab. 1
steel 1.4541
steels 1.0569, 15 128 or 1.4541
standard Al (EN AW-1050A),
options: Cu 42 3005, steel
or steel 1.4404
aluminium alloy EN AB-AlSi9Cu3(Fe)
according to ČSN EN 1676, with
surface treatment and sprayed
safety glass
nickel-coated brass,
polyamide 6/6 or polyamide 6
according to design
nickel-coated brass
IP67
1.4435
1.4541
